固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

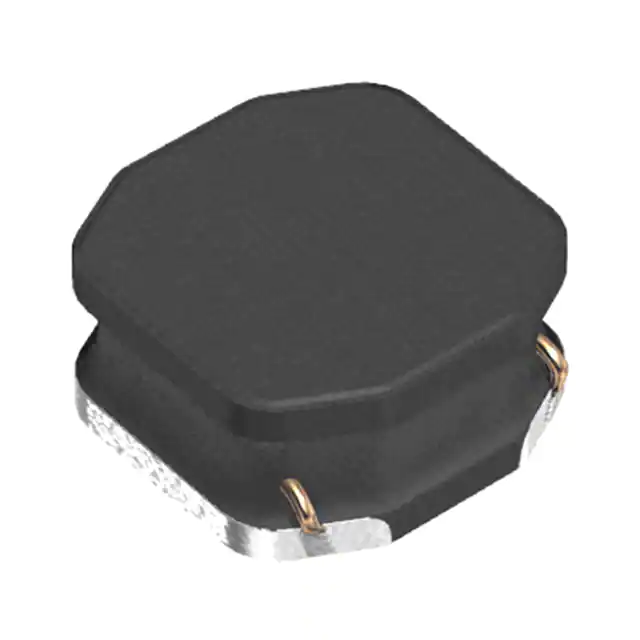

VLS3015CX-100M-HFIXED IND 10UH 900MA 0.286OHM SM TDK Corporation |
4,228 |
|
规格书 |
VLS-CX-H | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 900 mA | 670mA | Shielded | 286mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
VLS3015CX-220M-HFIXED IND 22UH 730MA 0.66OHM SMD TDK Corporation |
3,888 |
|
规格书 |
VLS-CX-H | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 730 mA | 450mA | Shielded | 660mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
NLFV32T-4R7M-EFFIXED IND 4.7UH 360MA 156MOHM SM TDK Corporation |
3,725 |
|
规格书 |
NLFV | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 360 mA | - | Shielded | 156mOhm Max | - | - | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
VLS3015CX-150M-HFIXED IND 15UH 840MA 0.428OHM SM TDK Corporation |
3,462 |
|
规格书 |
VLS-CX-H | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 840 mA | 570mA | Shielded | 428mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
NLFV32T-330K-EFFIXED IND 33UH 95MA 780 MOHM SMD TDK Corporation |
3,357 |
|
规格书 |
NLFV | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 95 mA | - | Shielded | 780mOhm Max | - | - | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
NLFV32T-151K-EFFIXED IND 150UH 50MA 3.48OHM SMD TDK Corporation |
3,269 |
|
规格书 |
NLFV | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 50 mA | - | Shielded | 3.48Ohm Max | - | - | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|

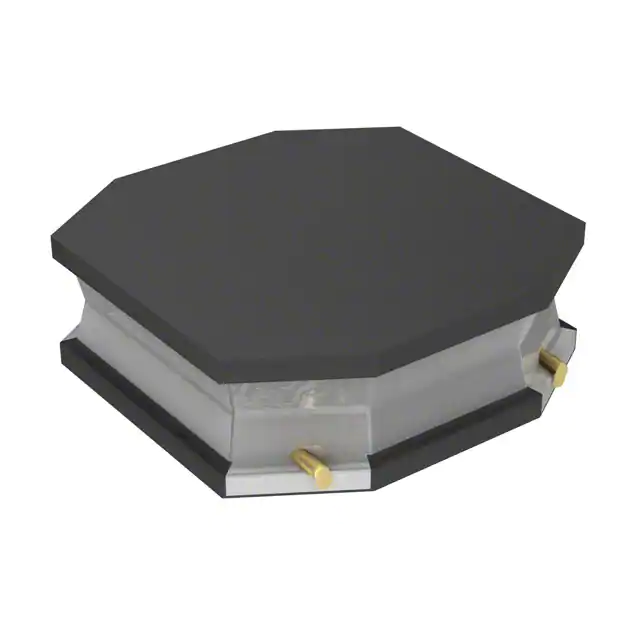

VLS3010ET-3R3MFIXED IND 3.3UH 1A 156 MOHM SMD TDK Corporation |
3,132 |
|
规格书 |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 3.3 µH | ±20% | 1 A | 1A | Shielded | 156mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
VLS3015CX-1R0M-HFIXED IND 1UH 2.96A 0.038OHM SMD TDK Corporation |
3,051 |
|
规格书 |
VLS-CX-H | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 2.96 A | 2.3A | Shielded | 38mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
VLS201610CX-1R0M-1FIXED IND 1UH 2.14A 66 MOHM SMD TDK Corporation |
2,148 |
|
规格书 |
VLS-CX-1 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 2.14 A | 1.76A | Shielded | 79mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 2016 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
VLS3015CX-101M-HFIXED IND 100UH 300MA 2.544OHM TDK Corporation |
2,148 |
|
规格书 |
VLS-CX-H | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 300 mA | 230mA | Shielded | 2.544Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
