固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NLFV32T-6R8M-EFFIXED IND 6.8UH 260MA 204MOHM SM TDK Corporation |
6,926 |
|
规格书 |
NLFV | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 260 mA | - | Shielded | 204mOhm Max | - | - | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
NLCV32T-100K-EFRDFIXED IND 10UH 600MA 504MOHM SMD TDK Corporation |
3,950 |
|
规格书 |
NLCV-EFD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 600 mA | - | Unshielded | 504mOhm Max | 20 @ 2.52MHz | 30MHz | AEC-Q200 | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
MLP2016H4R7MT0S1FIXED IND 4.7UH 1.1A 200MOHM SMD TDK Corporation |
2,088 |
|
规格书 |
MLP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±20% | 1.1 A | - | Shielded | 200mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
MLJ1005WR33JT000FIXED IND 330NH 350MA 650MOHM SM TDK Corporation |
59,470 |
|
规格书 |
MLJ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 330 nH | ±5% | 350 mA | 230mA | Shielded | 650mOhm Max | 15 @ 25MHz | 230MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
MLP2012V1R0MT0S1FIXED IND 1UH 900MA 260 MOHM SMD TDK Corporation |
14,930 |
|
规格书 |
MLP | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 900 mA | - | Shielded | 260mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
MLP2012S2R2MT0S1FIXED IND 2.2UH 800MA 299MOHM SM TDK Corporation |
14,714 |
|
规格书 |
MLP | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 800 mA | - | Shielded | 299mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
VLS5045EX-6R8MFIXED IND 6.8UH 2.9A 59.8MOHM SM TDK Corporation |
8,993 |
|
规格书 |
VLS-EX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 2.9 A | 3.6A | Shielded | 59.8mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
|
|
MLP2012HR47MT0S1FIXED IND 470NH 1.3A 91 MOHM SMD TDK Corporation |
8,658 |
|
规格书 |
MLP | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 470 nH | ±20% | 1.3 A | - | Shielded | 91mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|

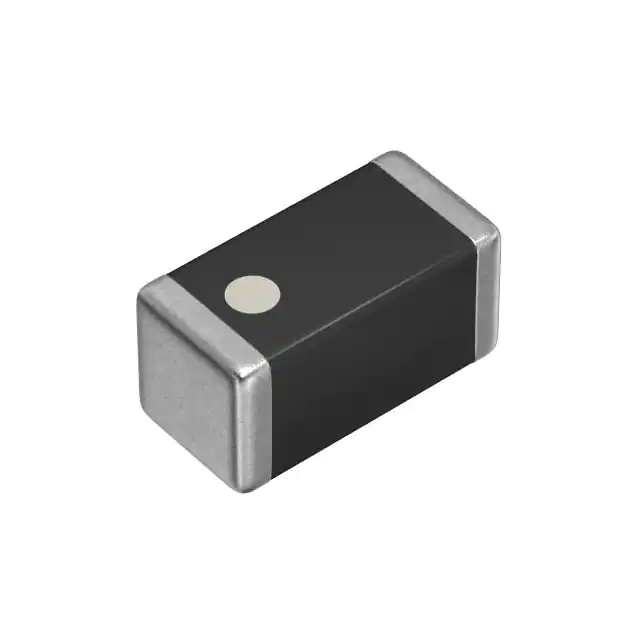

MLJ1005HXG56NETD0BFIXED IND 56NH 950MA 325MOHM SMD TDK Corporation |
5,928 |
|
规格书 |
MLJ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 56 nH | ±4nH | 950 mA | - | Shielded | 325mOhm Max | 14 @ 13.56MHz | - | - | -55°C ~ 125°C | 13.56 MHz | - | Surface Mount | 0402 | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.026" (0.65mm) |
|
|
NLFV32T-220K-EFFIXED IND 22UH 120MA 480MOHM SMD TDK Corporation |
3,473 |
|
规格书 |
NLFV | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 120 mA | - | Shielded | 480mOhm Max | - | - | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
