固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MHQ Series.jpg)
|
MHQ1005P4N7BTD25FIXED IND 4.7NH 800MA 110MOHM SM TDK Corporation |
10,315 |
|
规格书 |
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 4.7 nH | ±0.1nH | 800 mA | - | Unshielded | 110mOhm Max | 23 @ 250MHz | 5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
NLCV32T-2R2M-EFRFIXED IND 2.2UH 1.2A 138MOHM SMD TDK Corporation |
9,209 |
|
规格书 |
NLCV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.2 A | - | Unshielded | 138mOhm Max | 15 @ 7.96MHz | 68MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|

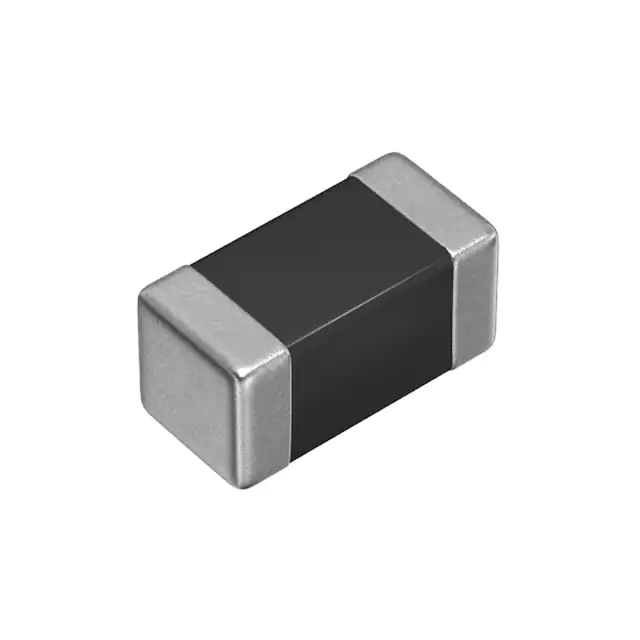

MLJ1608WR15JT000FIXED IND 150NH 700MA 160MOHM SM TDK Corporation |
8,081 |
|
规格书 |
MLJ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 150 nH | ±5% | 700 mA | 600mA | Shielded | 160mOhm Max | 15 @ 25MHz | 350MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
NLCV32T-2R2M-PFRFIXED IND 2.2UH 1.2A 138MOHM SMD TDK Corporation |
7,272 |
|
规格书 |
NLCV-PF | 1210 (3225 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.2 A | - | Unshielded | 138mOhm Max | 15 @ 7.96MHz | 68MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
NLV32T-033J-EFFIXED IND 33NH 450MA 240MOHM SMD TDK Corporation |
6,477 |
|
规格书 |
NLV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 nH | ±5% | 450 mA | - | Unshielded | 240mOhm Max | 25 @ 100MHz | 1.4GHz | - | -40°C ~ 105°C | 100 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
NLCV32T-4R7M-PFRFIXED IND 4.7UH 900MA 240MOHM SM TDK Corporation |
6,069 |
|
规格书 |
NLCV-PF | 1210 (3225 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 900 mA | - | Unshielded | 240mOhm Max | 15 @ 7.96MHz | 46MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
NLV25T-101J-EFFIXED IND 100UH 60MA 21 OHM SMD TDK Corporation |
6,060 |
|
规格书 |
NLV-EF | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±5% | 60 mA | - | Unshielded | 21Ohm Max | 15 @ 25.2MHz | 12MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
NLV32T-470J-PFFIXED IND 47UH 60MA 7 OHM SMD TDK Corporation |
6,000 |
|
规格书 |
NLV-PF | 1210 (3225 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 47 µH | ±5% | 60 mA | - | Unshielded | 7Ohm Max | 30 @ 2.52MHz | 15MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
NLCV32T-100K-EFRFIXED IND 10UH 600MA 504MOHM SMD TDK Corporation |
5,991 |
|
规格书 |
NLCV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 600 mA | - | Unshielded | 504mOhm Max | 20 @ 2.52MHz | 30MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
NLCV32T-R10M-PFRFIXED IND 100NH 2.85A 24MOHM SMD TDK Corporation |
5,719 |
|
规格书 |
NLCV-PF | 1210 (3225 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 100 nH | ±20% | 2.85 A | - | Unshielded | 24mOhm Max | 10 @ 25.2MHz | 800MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
