固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLZ1608N6R8LT000FIXED IND 6.8UH 350MA 500MOHM SM TDK Corporation |
10,534 |
|
规格书 |
MLZ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 6.8 µH | ±20% | 350 mA | 80mA | Shielded | 500mOhm | - | - | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
MLZ2012A1R0WTD25FIXED IND 1UH 900MA 100 MOHM SMD TDK Corporation |
10,501 |
|
规格书 |
MLZ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 900 mA | 280mA | Shielded | 100mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
MLZ1005MR68WT000FIXED IND 680NH 450MA 300MOHM SM TDK Corporation |
10,090 |
|
规格书 |
MLZ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 680 nH | ±20% | 450 mA | 110mA | Shielded | 300mOhm | - | 210MHz | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
MLF2012E100KT000FIXED IND 10UH 15MA 800 MOHM SMD TDK Corporation |
9,846 |
|
规格书 |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 10 µH | ±10% | 15 mA | - | Shielded | 800mOhm Max | 50 @ 2MHz | 30MHz | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
MLZ1608A2R2WT000FIXED IND 2.2UH 500MA 250MOHM SM TDK Corporation |
8,969 |
|
规格书 |
MLZ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 500 mA | 130mA | Shielded | 250mOhm | - | 120MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
.jpg)
|
MLF1608DR27JT000FIXED IND 270NH 150MA 600MOHM SM TDK Corporation |
8,000 |
|
规格书 |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 270 nH | ±5% | 150 mA | - | Shielded | 600mOhm Max | 15 @ 25MHz | 260MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLZ1608N4R7LT000FIXED IND 4.7UH 400MA 320MOHM SM TDK Corporation |
7,120 |
|
规格书 |
MLZ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±20% | 400 mA | 80mA | Shielded | 320mOhm | - | 80MHz | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|

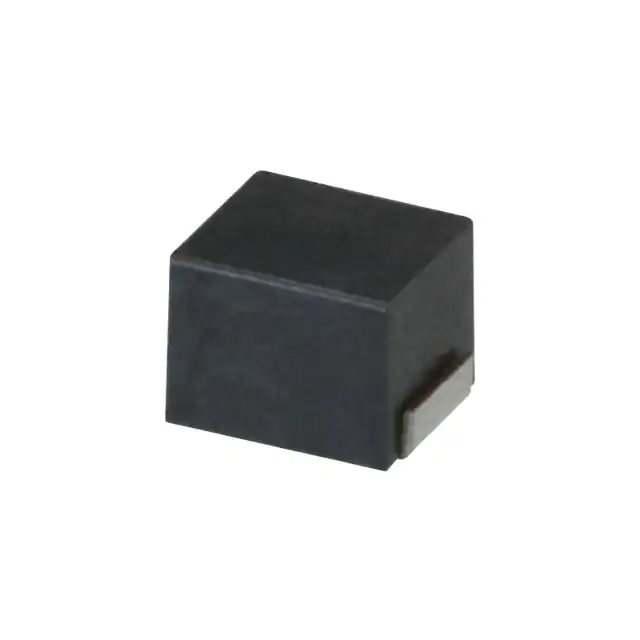

NLV25T-2R2J-PFFIXED IND 2.2UH 200MA 1.55OHM SM TDK Corporation |
6,254 |
|
规格书 |
NLV-PF | 1008 (2520 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 2.2 µH | ±5% | 200 mA | - | Unshielded | 1.55Ohm Max | 30 @ 7.96MHz | 105MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
NLV32T-R27J-EFFIXED IND 270NH 450MA 360MOHM SM TDK Corporation |
5,832 |
|
规格书 |
NLV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 nH | ±5% | 450 mA | - | Unshielded | 360mOhm Max | 30 @ 25.2MHz | 320MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
MLZ1608N150LT000FIXED IND 15UH 250MA 1.02OHM SMD TDK Corporation |
5,188 |
|
规格书 |
MLZ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 15 µH | ±20% | 250 mA | 55mA | Shielded | 1.02Ohm | - | - | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
