固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPM10040T-6R8MFIXED IND 6.8UH 6.9A 23.3MOHM SM TDK Corporation |
459 |
|
规格书 |
SPM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 6.9 A | 7.1A | Shielded | 23.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.157" (4.00mm) |
|
SPM7054VT-2R2M-DFIXED IND 2.2UH 12A 0.0074OHM SM TDK Corporation |
384 |
|
规格书 |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 12 A | 14.1A | Shielded | 7.4mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 7054 | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.213" (5.40mm) |
|
SLF10145T-3R3N3R7-HFIXED IND 3.3UH 3.7A 19.32 MOHM TDK Corporation |
1,353 |
|
规格书 |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 3.7 A | 4.9A | Shielded | 19.32mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.189" (4.80mm) |
|
SLF10145T-470M1R4-HFIXED IND 47UH 1.5A 120 MOHM SMD TDK Corporation |
10,145 |
|
规格书 |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.5 A | 1.4A | Shielded | 120mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.189" (4.80mm) |
|
LTF5022T-6R8N1R7-DFIXED IND 6.8UH 1.8A 110MOHM SMD TDK Corporation |
1,179 |
|
规格书 |
LTF5022T | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 1.8 A | 1.7A | Shielded | 110mOhm Max | - | - | AEC-Q200 | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.197" W (6.50mm x 5.00mm) | 0.087" (2.20mm) |
|
|
SLF10145T-101M1R0-HFIXED IND 100UH 1.1A 240MOHM SMD TDK Corporation |
705 |
|
规格书 |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.1 A | 1A | Shielded | 240mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.189" (4.80mm) |
|
|
SLF10145T-220M1R9-HFIXED IND 22UH 1.9A 59.1MOHM SMD TDK Corporation |
271 |
|
规格书 |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.9 A | 2.1A | Shielded | 59.1mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.189" (4.80mm) |
|
SPM6545VT-3R3M-DFIXED IND 3.3UH 7.6A 0.0171OHM TDK Corporation |
1,107 |
|
规格书 |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 7.6 A | 13.1A | Shielded | 17.1mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 6545 | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.177" (4.50mm) |
|

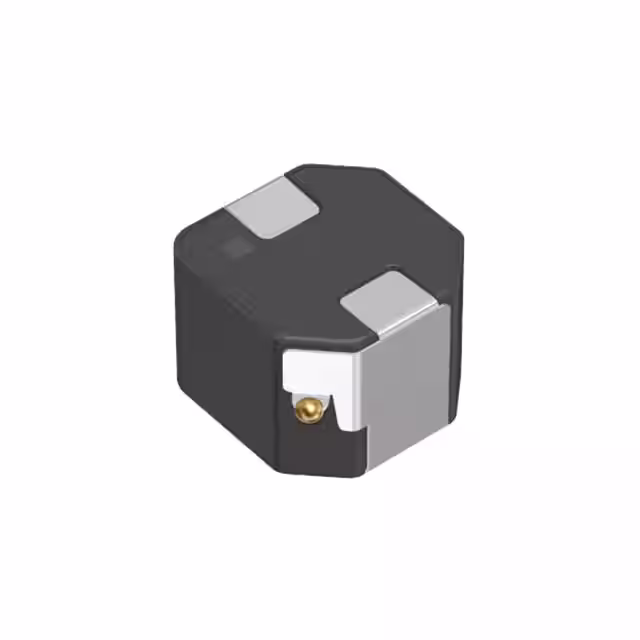

SPM7054VT-150M-DFIXED IND 15UH 4.5A 0.0548OHM SM TDK Corporation |
990 |
|
规格书 |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 15 µH | ±20% | 4.5 A | 5A | Shielded | 54.8mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 7054 | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.213" (5.40mm) |
|
CLF10040T-331M-DFIXED IND 330UH 530MA 1.032 OHM TDK Corporation |
959 |
|
规格书 |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 530 mA | 700mA | Shielded | 1.032Ohm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.161" (4.10mm) |
