上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLS3010ET-3R3M-CAFIXED IND 3.3UH 1.5A 156MOHM SMD TDK Corporation |
3,980 |
|
规格书 |
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.5 A | 1A | Shielded | 156mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
VLS5045EX-151M-CAFIXED IND 150UH 610MA 949MOHM SM TDK Corporation |
1,980 |
|
规格书 |
VLS-EX | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 610 mA | 560mA | Shielded | 949mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
|

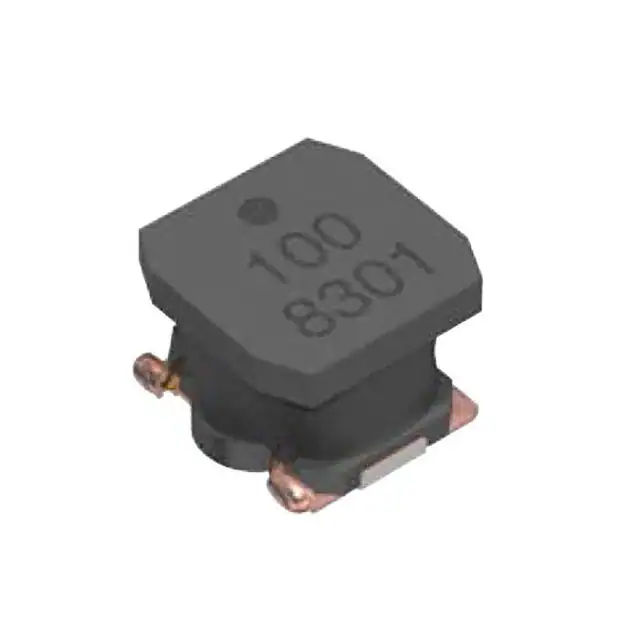

VLS6045EX-6R8M-HFIXED IND 6.8UH SMD TDK Corporation |
2,834 |
|
规格书 |
VLS-EX-H | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | - | - | Shielded | - | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.177" (4.50mm) |
|
VLCF4018T-1R6N1R7-2FIXED IND 1.6UH 1.72A 51MOHM SMD TDK Corporation |
3,862 |
|
规格书 |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.6 µH | ±30% | 1.72 A | 1.72A | Shielded | 51mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
VLS3012ET-2R2M-CAFIXED IND 2.2UH 1.7A 96 MOHM SMD TDK Corporation |
2,000 |
|
规格书 |
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.7 A | 1.35A | Shielded | 96mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
VLS3015ET-6R8M-CAFIXED IND 6.8UH 1.05A 216MOHM SM TDK Corporation |
2,000 |
|
规格书 |
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.05 A | 920mA | Shielded | 216mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
VLS3015ET-330M-CAFIXED IND 33UH 510MA 984MOHM SMD TDK Corporation |
2,000 |
|
规格书 |
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 510 mA | 390mA | Shielded | 984mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
VLCF4018T-470MR34-2FIXED IND 47UH 340MA 760MOHM SMD TDK Corporation |
1,217 |
|
规格书 |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 340 mA | 340mA | Shielded | 760mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
VLS6045EX-470M-CAFIXED IND 47UH 1.3A 299MOHM SMD TDK Corporation |
2,498 |
|
规格书 |
VLS-EX | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.3 A | 1.8A | Shielded | 299mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
VLCF4018T-3R3N1R2-2FIXED IND 3.3UH 1.26A 79MOHM SMD TDK Corporation |
2,282 |
|
规格书 |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 1.26 A | 1.26A | Shielded | 79mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
