固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

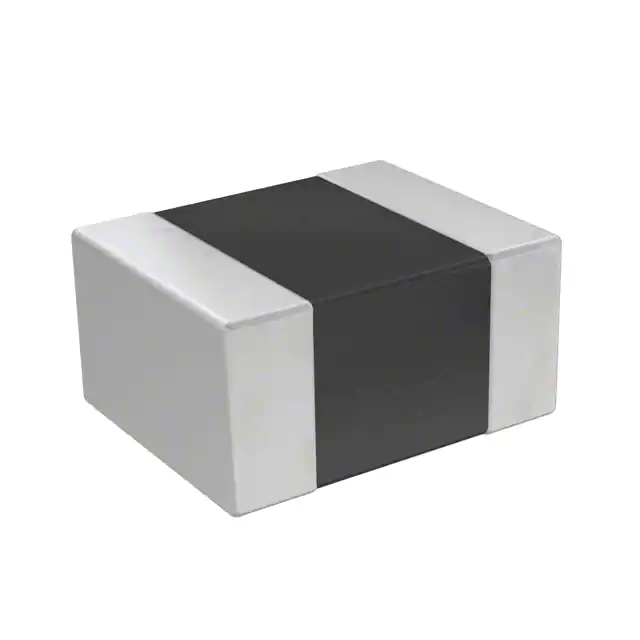

MLD2016S1R5MTD25FIXED IND 1.5UH 1A 195 MOHM SMD TDK Corporation |
6,852 |
|
规格书 |
MLD | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.5 µH | ±20% | 1 A | - | Shielded | 195mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
MLF2012E8R2KTD25FIXED IND 8.2UH 15MA 700MOHM SMD TDK Corporation |
6,695 |
|
规格书 |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 8.2 µH | ±10% | 15 mA | - | Shielded | 700mOhm Max | 50 @ 4MHz | 35MHz | AEC-Q200 | -55°C ~ 125°C | 4 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
VLS201610ET-1R5NFIXED IND 1.5UH 1.1A 181MOHM SMD TDK Corporation |
5,602 |
|
规格书 |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 1.1 A | 1.1A | Shielded | 181mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
.jpg)
|
MLF1608E100JTD25FIXED IND 10UH 10MA 1.7 OHM SMD TDK Corporation |
5,374 |
|
规格书 |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 10 µH | ±5% | 10 mA | - | Shielded | 1.7Ohm Max | 30 @ 2MHz | 30MHz | AEC-Q200 | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
NLV32T-R68J-EFDFIXED IND 680NH 450MA 600MOHM SM TDK Corporation |
4,680 |
|
规格书 |
NLV-EFD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±5% | 450 mA | - | Unshielded | 600mOhm Max | 30 @ 25.2MHz | 160MHz | AEC-Q200 | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
MLP1608VR47BT0S1FIXED IND 470NH 800MA 260MOHM SM TDK Corporation |
4,155 |
|
规格书 |
MLP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 470 nH | ±20% | 800 mA | - | Shielded | 260mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLF2012DR18JTD25FIXED IND 180NH 300MA 250MOHM SM TDK Corporation |
3,978 |
|
规格书 |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 180 nH | ±5% | 300 mA | - | Shielded | 250mOhm Max | 20 @ 25MHz | 280MHz | AEC-Q200 | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
NLV32T-151J-EFDFIXED IND 150UH 65MA 15 OHM SMD TDK Corporation |
3,950 |
|
规格书 |
NLV-EFD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±5% | 65 mA | - | Unshielded | 15Ohm Max | 20 @ 796kHz | 8MHz | AEC-Q200 | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
NLV25T-820J-EFDFIXED IND 82UH 66MA 19 OHM SMD TDK Corporation |
3,843 |
|
规格书 |
NLV-EFD | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±5% | 66 mA | - | Unshielded | 19Ohm Max | 20 @ 2.52MHz | 13MHz | AEC-Q200 | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
NLCV32T-330K-EFDFIXED IND 33UH 240MA 1.43OHM SMD TDK Corporation |
3,804 |
|
规格书 |
NLCV-EFD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 240 mA | - | Unshielded | 1.43Ohm Max | 15 @ 2.52MHz | 17MHz | AEC-Q200 | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
