固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

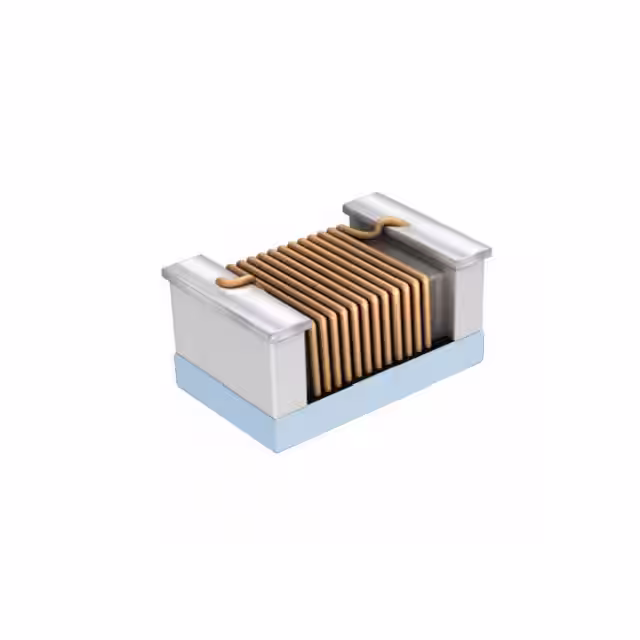

MWSD1005CP7N5JSTFFIXED IND 7.5NH0.08OHM 1400MA Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
- |
MWSD-CP | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 7.5 nH | ±5% | 1.4 A | - | Unshielded | 80mOhm Max | 26 @ 250MHz | 5.4GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|
WL1608FSR27JTFM01FIXED IND 270NH 750MA 160MOHM SM Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
规格书 |
WL-FS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 nH | ±5% | 750 mA | - | Unshielded | 160mOhm Max | - | 660MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0603 | 0.067" L x 0.037" W (1.70mm x 0.95mm) | 0.039" (1.00mm) |
|
SDWL1608CPR20GSTFFIXED IND 200NH 280MA 2 OHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
规格书 |
SDWL-CP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 200 nH | ±2% | 280 mA | - | Unshielded | 2Ohm Max | 47 @ 250MHz | 1.25GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.067" L x 0.043" W (1.70mm x 1.10mm) | 0.043" (1.10mm) |
|
|
SDWL1608CPR39GSTFFIXED IND 390NH 170MA 4.77OHM SM Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
规格书 |
SDWL-CP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 390 nH | ±2% | 170 mA | - | Unshielded | 4.77Ohm Max | 47 @ 250MHz | 880MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.067" L x 0.043" W (1.70mm x 1.10mm) | 0.043" (1.10mm) |
|
|
WL1608FSR27KTFM01FIXED IND 270NH 750MA 160MOHM SM Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
规格书 |
WL-FS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 nH | ±10% | 750 mA | - | Unshielded | 160mOhm Max | - | 660MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0603 | 0.067" L x 0.037" W (1.70mm x 0.95mm) | 0.039" (1.00mm) |
|
|
SDWL1608CP27NGSTFFIXED IND 27NH 780MA 200MOHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
规格书 |
SDWL-CP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 27 nH | ±2% | 780 mA | - | Unshielded | 200mOhm Max | 44 @ 250MHz | 2.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.043" W (1.70mm x 1.10mm) | 0.043" (1.10mm) |
|
|
SDWL1608CPR18JSTFFIXED IND 180NH 310MA 1.5OHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
规格书 |
SDWL-CP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 180 nH | ±5% | 310 mA | - | Unshielded | 1.5Ohm Max | 48 @ 250MHz | 1.3GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.067" L x 0.043" W (1.70mm x 1.10mm) | 0.043" (1.10mm) |
|
|
SDWL1608CPR18GSTFFIXED IND 180NH 310MA 1.5OHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
规格书 |
SDWL-CP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 180 nH | ±2% | 310 mA | - | Unshielded | 1.5Ohm Max | 48 @ 250MHz | 1.3GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.067" L x 0.043" W (1.70mm x 1.10mm) | 0.043" (1.10mm) |
|
|
SDWL1608CP27NJSTFFIXED IND 27NH 780MA 200MOHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
规格书 |
SDWL-CP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 27 nH | ±5% | 780 mA | - | Unshielded | 200mOhm Max | 44 @ 250MHz | 2.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.043" W (1.70mm x 1.10mm) | 0.043" (1.10mm) |
|
|
SDWL1608CPR36JSTFFIXED IND 360NH 170MA 4.6OHM SMD Shenzhen Sunlord Electronics Co., Ltd. |
0 |
|
规格书 |
SDWL-CP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 360 nH | ±5% | 170 mA | - | Unshielded | 4.6Ohm Max | 47 @ 250MHz | 930MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.067" L x 0.043" W (1.70mm x 1.10mm) | 0.043" (1.10mm) |
