固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDMC6D28NP-R30MCFIXED IND 300NH 16.1A 3.2MOHM SM Sumida America Components Inc. |
0 |
|
规格书 |
CDMC6D28 | Nonstandard | Tape & Reel (TR) | Last Time Buy | - | Metal Composite | 300 nH | ±20% | 16.1 A | 15.4A | Shielded | 3.2mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.285" L x 0.256" W (7.25mm x 6.50mm) | 0.118" (3.00mm) |
|

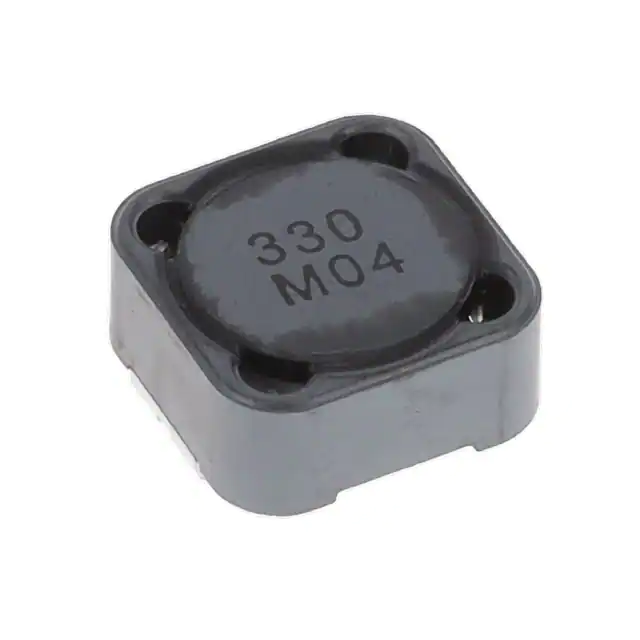

CDRH125L125NP-330MCFIXED IND 33UH 3A 59 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±20% | 3 A | 2.93A | Shielded | 59mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|

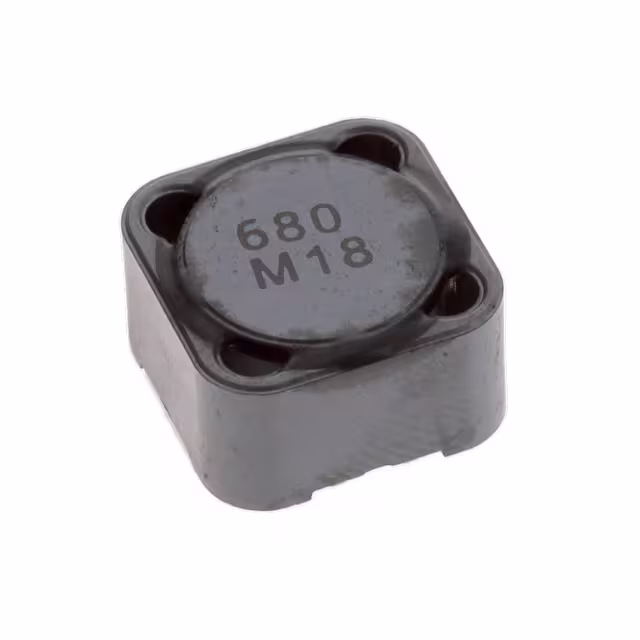

CDRH127L125NP-680MCFIXED IND 68UH 2.6A 111.5MOHM SM Sumida America Components Inc. |
0 |
|
规格书 |
CDRH127/L125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 68 µH | ±20% | 2.6 A | 3.1A | Shielded | 111.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
CDRH10D60BT150NP-101MCFIXED IND 100UH 2.3A 160MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDRH10D60B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 2.3 A | 1.92A | Shielded | 160mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.406" L x 0.394" W (10.30mm x 10.00mm) | 0.250" (6.35mm) |
|

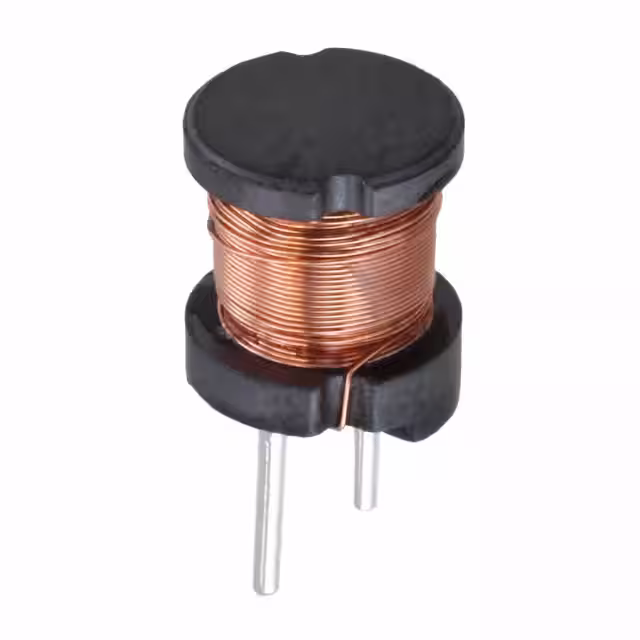

RCH895NP-332KFIXED IND 3.3MH 120MA 6.16OHM TH Sumida America Components Inc. |
2 |
|
规格书 |
RCH-895 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±10% | 120 mA | 150mA | Unshielded | 6.16Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.374" (9.50mm) |
|
CDRH2D11NP-3R3NCFIXED IND 3.3UH 1.02A 123MOHM SM Sumida America Components Inc. |
24 |
|
规格书 |
CDRH2D11 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±30% | 1.02 A | 600mA | Shielded | 123mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.043" (1.10mm) |
|
CDRH3D28/LDNP-150NCFIXED IND 15UH 1.44A 115MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDRH3D28/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±30% | 1.44 A | 400mA | Shielded | 115mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.118" (3.00mm) |
|

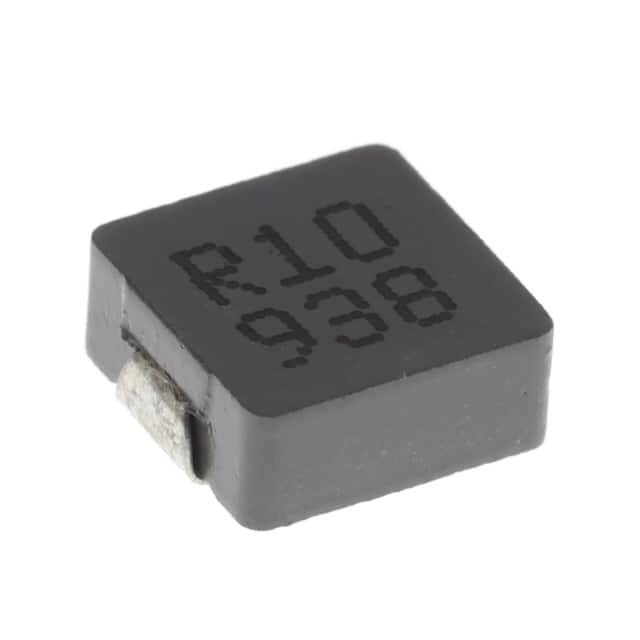

0630CDMCDDS-R10MCFIXED IND 100NH SMD Sumida America Components Inc. |
6 |
|
规格书 |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 100 nH | ±20% | 32.5 A | 52.5A | Shielded | 1.7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|

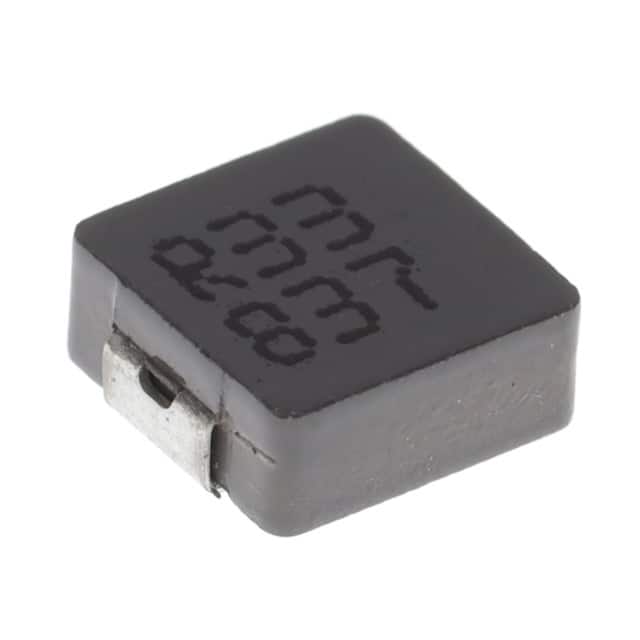

0630CDMCDDS-R33MCFIXED IND 330NH 21A 3.5MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 330 nH | ±20% | 20 A | 30A | Shielded | 3.9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
0630CDMCDDS-R68MCFIXED IND 680NH 16.5A 5.3MOHM SM Sumida America Components Inc. |
0 |
|
规格书 |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 680 nH | ±20% | 18 A | 21.8A | Shielded | 5.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
