固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RCR1616NP-4R7MINDUCTOR Sumida America Components Inc. |
0 |
|
规格书 |
RCR1616 | Radial | Box | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 9.2 A | 12.6A | Shielded | 6.7mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | Radial | 0.630" Dia (16.00mm) | - |
|
|
RCR1616NP-390MINDUCTOR Sumida America Components Inc. |
0 |
|
规格书 |
RCR1616 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 4.5 A | 4.6A | Shielded | 33mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.630" Dia (16.00mm) | 0.650" (16.50mm) |
|
|
RCR1616NP-470MINDUCTOR Sumida America Components Inc. |
0 |
|
规格书 |
RCR1616 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 4.1 A | 4.2A | Shielded | 37mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.630" Dia (16.00mm) | 0.650" (16.50mm) |
|
|
RCR1616NP-821KINDUCTOR Sumida America Components Inc. |
0 |
|
规格书 |
RCR1616 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 990 mA | 960mA | Shielded | 575mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.630" Dia (16.00mm) | 0.650" (16.50mm) |
|
|
RCR1616NP-680MINDUCTOR Sumida America Components Inc. |
0 |
|
规格书 |
RCR1616 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 3.4 A | 3.3A | Shielded | 56mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.630" Dia (16.00mm) | 0.650" (16.50mm) |
|
|
RCR1616NP-102KINDUCTOR Sumida America Components Inc. |
0 |
|
规格书 |
RCR1616 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 930 mA | 850mA | Shielded | 665mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.630" Dia (16.00mm) | 0.650" (16.50mm) |
|
|
RCR1616NP-561KINDUCTOR Sumida America Components Inc. |
0 |
|
规格书 |
RCR1616 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 1.1 A | 1.1A | Shielded | 380mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.630" Dia (16.00mm) | 0.650" (16.50mm) |
|
|
RCR1616NP-560MINDUCTOR Sumida America Components Inc. |
0 |
|
规格书 |
RCR1616 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 3.8 A | 3.8A | Shielded | 45mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.630" Dia (16.00mm) | 0.650" (16.50mm) |
|
|
RCR1616NP-6R8MINDUCTOR Sumida America Components Inc. |
0 |
|
规格书 |
RCR1616 | Radial | Box | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 8 A | 9.8A | Shielded | 9.35mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | Radial | 0.630" Dia (16.00mm) | - |
|

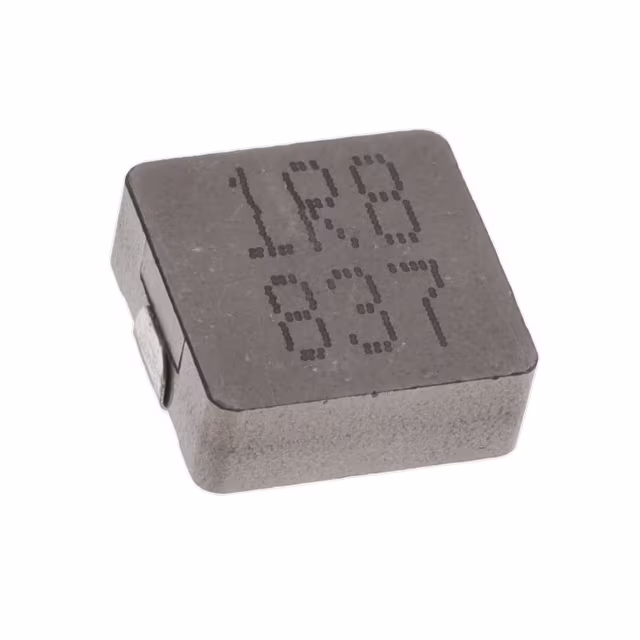

125CDMCCDS-1R8MCFIXED IND 1.8UH 21A 3.5MOHM SMD Sumida America Components Inc. |
3 |
|
规格书 |
125CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.8 µH | ±20% | 21 A | 35A | Shielded | 3.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
