固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDMT40D20HF-1R0NCFIXED IND 1UH 5.4A 14.5 MOHM SMD Sumida America Components Inc. |
2,752 |
|
规格书 |
CDMT40D20 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±30% | 5.4 A | 8.7A | Shielded | 14.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.163" L x 0.163" W (4.15mm x 4.15mm) | 0.083" (2.10mm) |
|

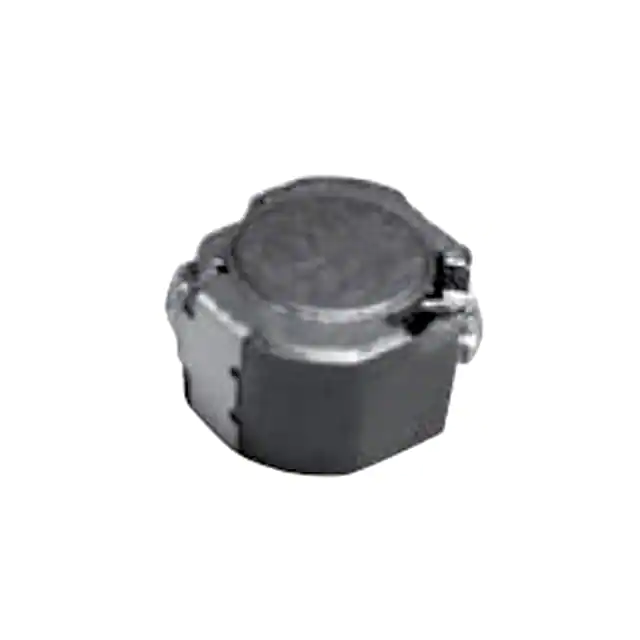

CDRH70D45BT150NP-470MCFIXED IND 47UH 1.97A 130MOHM SMD Sumida America Components Inc. |
2,618 |
|
规格书 |
CDRH70D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±20% | 1.97 A | 1.3A | Shielded | 130mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.287" W (7.70mm x 7.30mm) | 0.189" (4.80mm) |
|
CEP125NP-1R5MC-DFIXED IND 1.5UH 16.5A 2.5MOHM SM Sumida America Components Inc. |
1,485 |
|
规格书 |
CEP125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 16.5 A | 14A | Shielded | 2.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.220" (5.60mm) |
|
|
CEP125NP-1R8MC-HFIXED IND 1.8UH 15.5A 3.4MOHM SM Sumida America Components Inc. |
975 |
|
规格书 |
CEP125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±20% | 15.5 A | 15.3A | Shielded | 3.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.220" (5.60mm) |
|
|
CDRH70D45BT150NP-680MCFIXED IND 68UH 1.57A 190MOHM SMD Sumida America Components Inc. |
744 |
|
规格书 |
CDRH70D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±20% | 1.57 A | 1.1A | Shielded | 190mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.287" W (7.70mm x 7.30mm) | 0.189" (4.80mm) |
|
|
CEP125NP-6R0MCFIXED IND 6UH 9.9A 8 MOHM SMD Sumida America Components Inc. |
331 |
|
规格书 |
CEP125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6 µH | ±20% | 9.9 A | 6.7A | Shielded | 8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.220" (5.60mm) |
|
|
CEP125NP-5R6MC-HFIXED IND 5.6UH 8.2A 11.4MOHM SM Sumida America Components Inc. |
553 |
|
规格书 |
CEP125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 8.2 A | 8.8A | Shielded | 11.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.220" (5.60mm) |
|

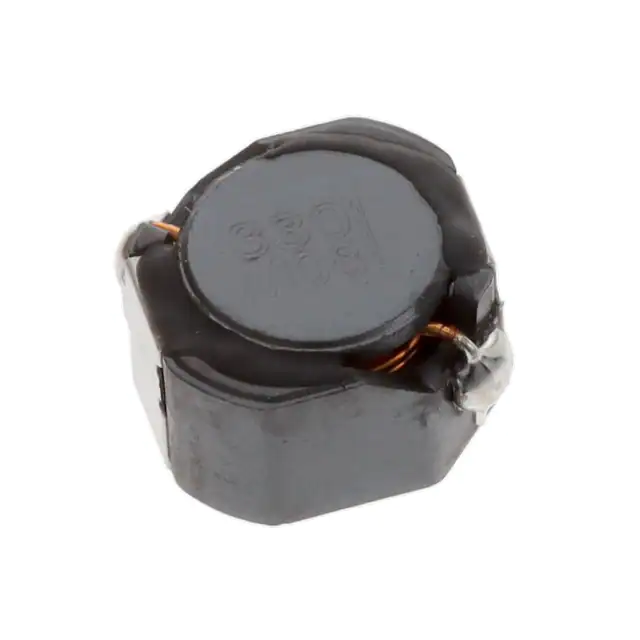

CDRH10D60BT150NP-330MCFIXED IND 33UH 2.9A 57 MOHM SMD Sumida America Components Inc. |
468 |
|
规格书 |
CDRH10D60B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±20% | 2.9 A | 3.35A | Shielded | 57mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.406" L x 0.394" W (10.30mm x 10.00mm) | 0.250" (6.35mm) |
|
|
CEP125NP-1R0MC-HFIXED IND 1UH 16.5A 2.5 MOHM SMD Sumida America Components Inc. |
2,739 |
|
规格书 |
CEP125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 16.5 A | 20A | Shielded | 2.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.220" (5.60mm) |
|
|
CDRH70D45BT150NP-151MCFIXED IND 150UH 1.05A 430MOHM SM Sumida America Components Inc. |
1,523 |
|
规格书 |
CDRH70D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±20% | 1.05 A | 740mA | Shielded | 430mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.287" W (7.70mm x 7.30mm) | 0.189" (4.80mm) |
