上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLS8D28NP-330NCFIXED IND 33UH 1.5A 278 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CLS8D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±30% | 1.5 A | 1.2A | Unshielded | 278mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.118" (3.00mm) |
|
|
CLS8D28NP-470NCFIXED IND 47UH 1.4A 363 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CLS8D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±30% | 1.4 A | 1A | Unshielded | 363mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.118" (3.00mm) |
|
|
CLS8D28NP-4R5NCFIXED IND 4.5UH 4.2A 39 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CLS8D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.5 µH | ±30% | 4.2 A | 3.3A | Unshielded | 39mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.118" (3.00mm) |
|
|
CLS8D28NP-680NCFIXED IND 68UH 1.1A 580 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CLS8D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±30% | 1.1 A | 720mA | Unshielded | 580mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.118" (3.00mm) |
|
|
CLS8D28NP-6R8NCFIXED IND 6.8UH 3.9A 55 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CLS8D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±30% | 3.9 A | 2.5A | Unshielded | 55mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.118" (3.00mm) |
|
CDRH8D43HPNP-1R2NCFIXED IND 1.2UH 5.6A 16.5MOHM SM Sumida America Components Inc. |
0 |
|
规格书 |
CDRH8D43/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.2 µH | ±30% | 5.6 A | 12.6A | Shielded | 16.5mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.185" (4.70mm) |
|
|
CDRH8D43HPNP-100NCFIXED IND 10UH 2.5A 53 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDRH8D43/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 2.5 A | 4.3A | Shielded | 53mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.185" (4.70mm) |
|
CDRH73NP-271MC-BFIXED IND 270UH 320MA 2.31OHM SM Sumida America Components Inc. |
0 |
|
规格书 |
CDRH73 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 270 µH | ±20% | 320 mA | - | Shielded | 2.31Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.134" (3.40mm) |
|
|
CDRH73NP-561MC-BFIXED IND 560UH 220MA 4.67OHM SM Sumida America Components Inc. |
0 |
|
规格书 |
CDRH73 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 560 µH | ±20% | 220 mA | - | Shielded | 4.67Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.134" (3.40mm) |
|

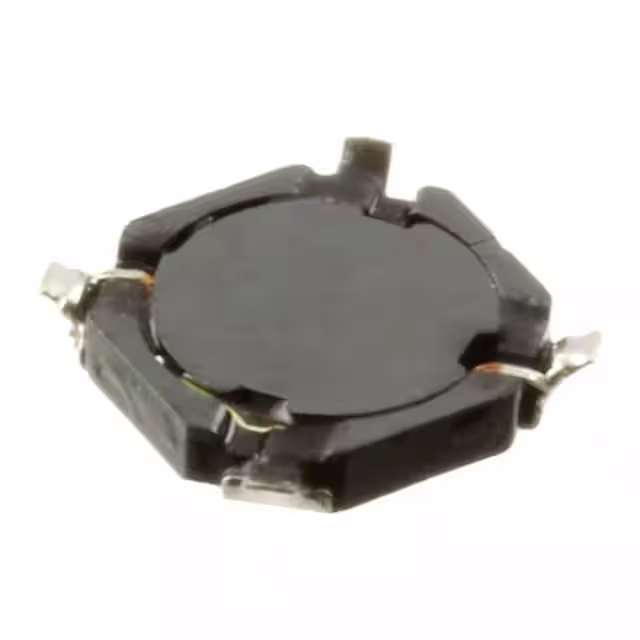

CLS5D11HPNP-150NCFIXED IND 15UH 600MA 390MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CLS | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±30% | 600 mA | 850mA | Shielded | 390mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.230" L x 0.230" W (5.85mm x 5.85mm) | 0.049" (1.25mm) |
