固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

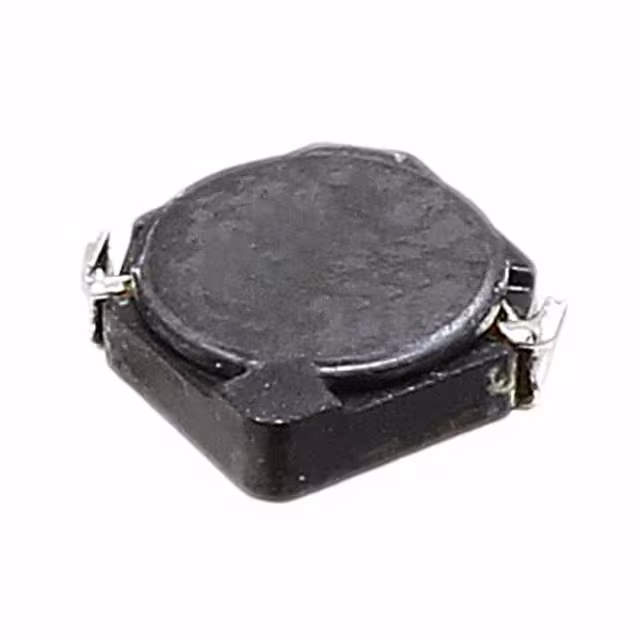

CDRH4D14LDNP-4R7NCFIXED IND 4.7UH 1.9A 66 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDRH4D14/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 1.9 A | 780mA | Shielded | 66mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.181" L x 0.181" W (4.60mm x 4.60mm) | 0.059" (1.50mm) |
|
RCR110DNP-101LFIXED IND 100UH 1.08A 190MOHM TH Sumida America Components Inc. |
0 |
|
规格书 |
RCR-110D | Radial, Vertical Cylinder, 4 Leads | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±15% | 1.08 A | - | Shielded | 190mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
|
|
RCR110DNP-102LFIXED IND 1MH 350MA 1.5 OHM TH Sumida America Components Inc. |
0 |
|
规格书 |
RCR-110D | Radial, Vertical Cylinder, 4 Leads | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±15% | 350 mA | - | Shielded | 1.5Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
|
|
RCR110DNP-120MFIXED IND 12UH 3.24A 24 MOHM TH Sumida America Components Inc. |
0 |
|
规格书 |
RCR-110D | Radial, Vertical Cylinder, 4 Leads | Tape & Reel (TR) | Active | - | Ferrite | 12 µH | ±20% | 3.24 A | - | Shielded | 24mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
|
|
RCR110DNP-121LFIXED IND 120UH 990MA 210MOHM TH Sumida America Components Inc. |
0 |
|
规格书 |
RCR-110D | Radial, Vertical Cylinder, 4 Leads | Tape & Reel (TR) | Active | - | Ferrite | 120 µH | ±15% | 990 mA | - | Shielded | 210mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
|
|
RCR110DNP-150MFIXED IND 15UH 2.88A 36 MOHM TH Sumida America Components Inc. |
0 |
|
规格书 |
RCR-110D | Radial, Vertical Cylinder, 4 Leads | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 2.88 A | - | Shielded | 36mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
|
|
RCR110DNP-151LFIXED IND 150UH 900MA 230MOHM TH Sumida America Components Inc. |
0 |
|
规格书 |
RCR-110D | Radial, Vertical Cylinder, 4 Leads | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±15% | 900 mA | - | Shielded | 230mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
|
|
RCR110DNP-180MFIXED IND 18UH 2.61A 39 MOHM TH Sumida America Components Inc. |
0 |
|
规格书 |
RCR-110D | Radial, Vertical Cylinder, 4 Leads | Tape & Reel (TR) | Active | - | Ferrite | 18 µH | ±20% | 2.61 A | - | Shielded | 39mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
|
|
RCR110DNP-181LFIXED IND 180UH 820MA 260MOHM TH Sumida America Components Inc. |
0 |
|
规格书 |
RCR-110D | Radial, Vertical Cylinder, 4 Leads | Tape & Reel (TR) | Active | - | Ferrite | 180 µH | ±15% | 820 mA | - | Shielded | 260mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
|
|
RCR110DNP-220MFIXED IND 22UH 2.34A 42 MOHM TH Sumida America Components Inc. |
0 |
|
规格书 |
RCR-110D | Radial, Vertical Cylinder, 4 Leads | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 2.34 A | - | Shielded | 42mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
