固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDEP105NP-5R7MC-88FIXED IND 5.7UH 7.4A 12.4MOHM SM Sumida America Components Inc. |
0 |
|
规格书 |
CDEP105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.7 µH | ±20% | 7.4 A | 5.8A | Shielded | 12.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.220" (5.60mm) |
|
|
CDEP105NP-8R8MC-88FIXED IND 8.8UH 4.9A 23.8MOHM SM Sumida America Components Inc. |
0 |
|
规格书 |
CDEP105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.8 µH | ±20% | 4.9 A | 4.8A | Shielded | 23.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.220" (5.60mm) |
|
|
CDMPIH75D43T125NP-6R8PCINDUCTOR Sumida America Components Inc. |
0 |
|
规格书 |
CDMPIH75D43/T125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±25% | 2.8 A | 2.9A | Shielded | 43mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.295" W (7.80mm x 7.50mm) | 0.177" (4.50mm) |
|

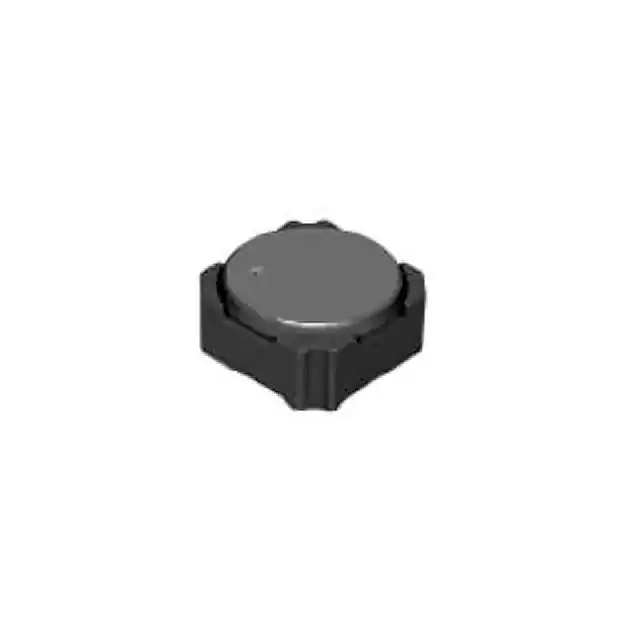

CDR10D48MNNP-100NCFIXED IND 10UH 4.3A 40 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDR10D48MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±25% | 4.3 A | 5.5A | Shielded | 40mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.197" (5.00mm) |
|
|
CDR10D48MNNP-101NCFIXED IND 100UH 1.1A 275MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDR10D48MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±25% | 1.1 A | 1.8A | Shielded | 275mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.197" (5.00mm) |
|
|
CDR10D48MNNP-120NCFIXED IND 12UH 3.6A 42.5MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDR10D48MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 12 µH | ±25% | 3.6 A | 4.9A | Shielded | 42.5mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.197" (5.00mm) |
|
|
CDR10D48MNNP-121NCFIXED IND 120UH 1A 312.5MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDR10D48MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 120 µH | ±25% | 1 A | 1.6A | Shielded | 312.5mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.197" (5.00mm) |
|
|
CDR10D48MNNP-150NCFIXED IND 15UH 3.4A 46 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDR10D48MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±25% | 3.4 A | 4.5A | Shielded | 46mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.197" (5.00mm) |
|
|
CDR10D48MNNP-180NCFIXED IND 18UH 3.2A 50 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDR10D48MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 18 µH | ±25% | 3.2 A | 4.1A | Shielded | 50mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.197" (5.00mm) |
|
|
CDR10D48MNNP-220NCFIXED IND 22UH 2.8A 56 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDR10D48MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±25% | 2.8 A | 4A | Shielded | 56mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.197" (5.00mm) |
