固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0624CDMCCDS-R22MCFIXED IND 220NH 22A 3 MOHM SMD Sumida America Components Inc. |
2,345 |
|
规格书 |
0624CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 220 nH | ±20% | 22 A | 36.1A | Shielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.094" (2.40mm) |
|
CDRH6D28NP-820NCFIXED IND 82UH 600MA 390MOHM SMD Sumida America Components Inc. |
1,937 |
|
规格书 |
CDRH6D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 82 µH | ±30% | 600 mA | - | Shielded | 390mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.118" (3.00mm) |
|

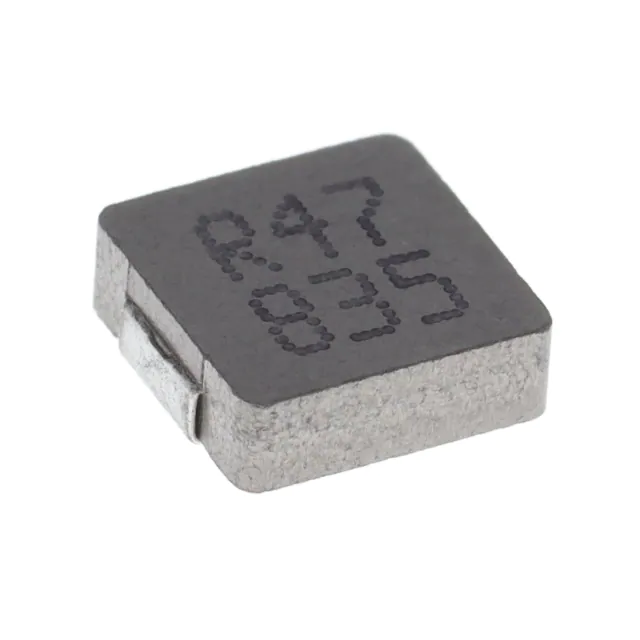

0624CDMCCDS-R47MCFIXED IND 470NH 17.5A 5.1MOHM SM Sumida America Components Inc. |
2,328 |
|
规格书 |
0624CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 17.5 A | 24.5A | Shielded | 5.1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.094" (2.40mm) |
|

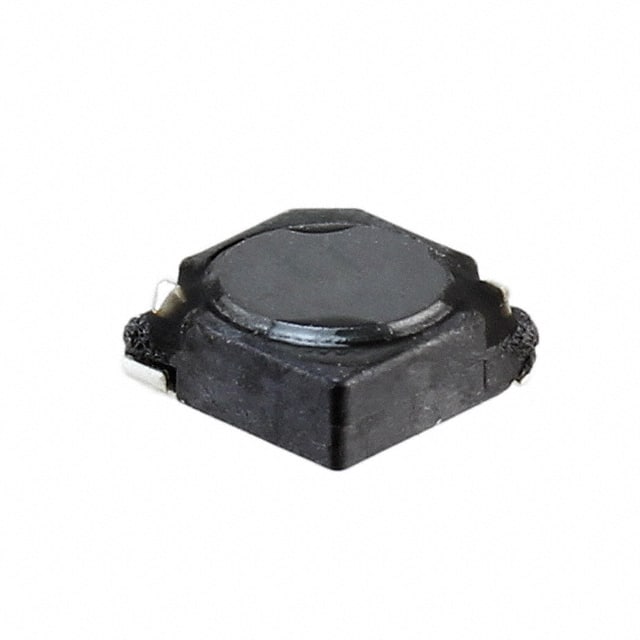

CDC5D23BNP-100LCFIXED IND 10UH 1.04A 133MOHM SMD Sumida America Components Inc. |
1,257 |
|
规格书 |
CDC5D23B | 2323 (5858 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±15% | 1.04 A | - | Unshielded | 133mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.098" (2.50mm) |
|

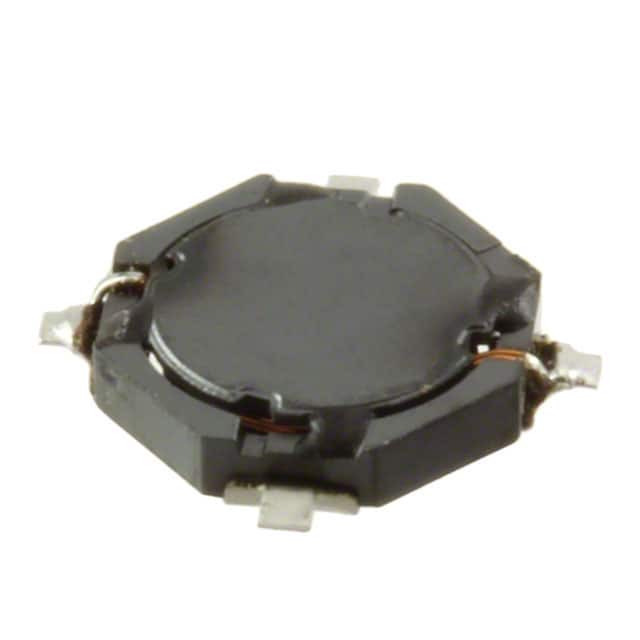

CDRH6D12NP-3R3NCFIXED IND 3.3UH 1.9A 62.5MOHM SM Sumida America Components Inc. |
8,669 |
|
规格书 |
CDRH6D12 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±30% | 1.9 A | 2.2A | Shielded | 62.5mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.059" (1.50mm) |
|
CDRH5D18NP-220NCFIXED IND 22UH 800MA 290MOHM SMD Sumida America Components Inc. |
37,076 |
|
规格书 |
CDRH5D18 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±30% | 800 mA | - | Shielded | 290mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.079" (2.00mm) |
|

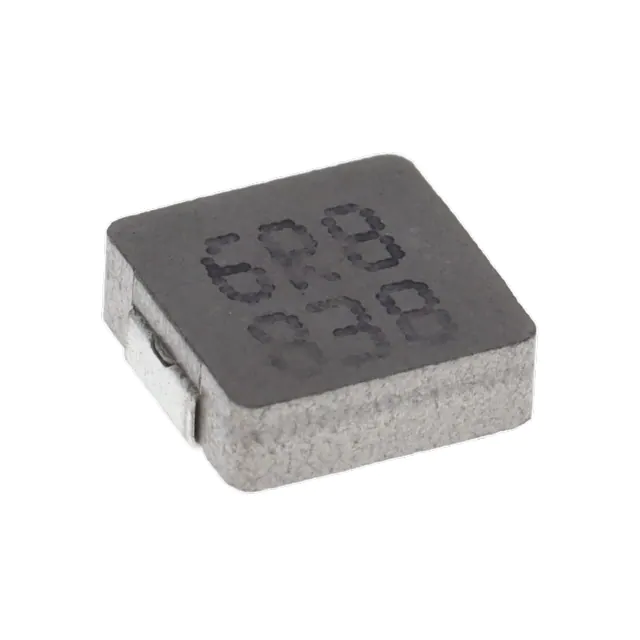

0624CDMCCDS-6R8MCFIXED IND 6.8UH 4.2A 66MOHM SMD Sumida America Components Inc. |
8,644 |
|
规格书 |
0624CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 6.8 µH | ±20% | 4.2 A | 6.7A | Shielded | 66mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.094" (2.40mm) |
|
|
CDRH5D18NP-5R4NCFIXED IND 5.4UH 1.6A 76 MOHM SMD Sumida America Components Inc. |
7,566 |
|
规格书 |
CDRH5D18 | Nonstandard | Tape & Reel (TR) | Active | - | - | 5.4 µH | ±30% | 1.6 A | - | Shielded | 76mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.079" (2.00mm) |
|
|
CDRH6D28NP-180NCFIXED IND 18UH 1.32A 95 MOHM SMD Sumida America Components Inc. |
5,974 |
|
规格书 |
CDRH6D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 18 µH | ±30% | 1.32 A | - | Shielded | 95mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.118" (3.00mm) |
|
CDRH3D28NP-4R7NCFIXED IND 4.7UH 1.62A 88.3 MOHM Sumida America Components Inc. |
3,342 |
|
规格书 |
CDRH3D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 1.62 A | 1.65A | Shielded | 88.3mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.118" (3.00mm) |
