固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

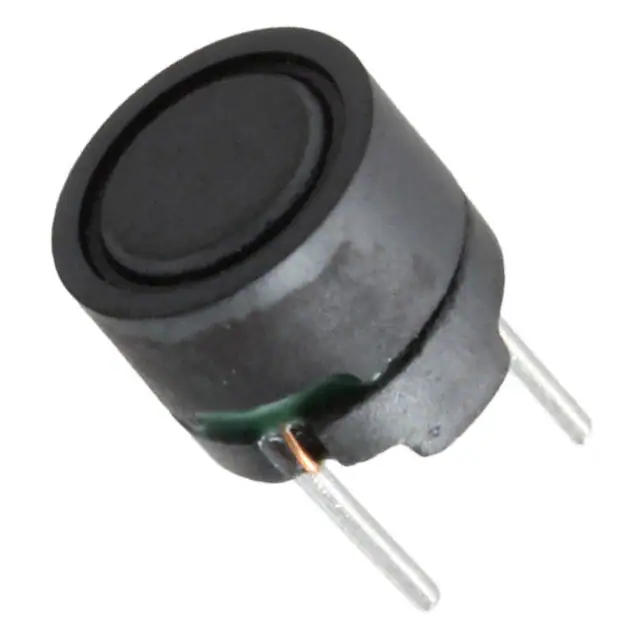

RCR875DNP-101KFIXED IND 100UH 740MA 320MOHM TH Sumida America Components Inc. |
8,596 |
|
规格书 |
RCR-875D | Radial, Vertical Cylinder | Bulk | Active | - | Ferrite | 100 µH | ±10% | 740 mA | - | Shielded | 320mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
CR32NP-220KCFIXED IND 22UH 500MA 470MOHM SMD Sumida America Components Inc. |
5,384 |
|
规格书 |
CR32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 500 mA | - | Unshielded | 470mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.138" W (3.80mm x 3.50mm) | 0.118" (3.00mm) |
|
CD54NP-470LCFIXED IND 47UH 720MA 370MOHM SMD Sumida America Components Inc. |
5,241 |
|
规格书 |
CD54 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±15% | 720 mA | - | Unshielded | 370mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|

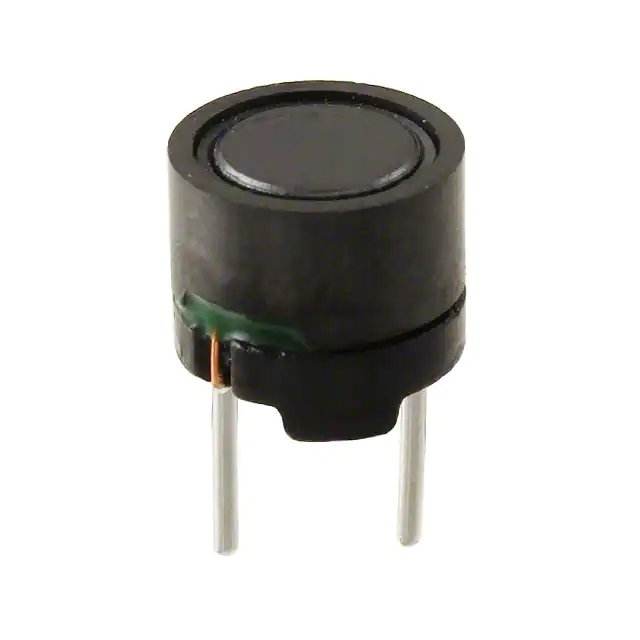

RCR875DNP-470LFIXED IND 47UH 1.1A 170 MOHM TH Sumida America Components Inc. |
2,046 |
|
规格书 |
RCR-875D | Radial, Vertical Cylinder | Bulk | Active | - | Ferrite | 47 µH | ±15% | 1.1 A | - | Shielded | 170mOhm Max | - | - | - | -40°C ~ 85°C | 2.52 MHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
RCR875DNP-151KFIXED IND 150UH 600MA 510MOHM TH Sumida America Components Inc. |
32,853 |
|
规格书 |
RCR-875D | Radial, Vertical Cylinder | Bulk | Active | - | Ferrite | 150 µH | ±10% | 600 mA | - | Shielded | 510mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
|

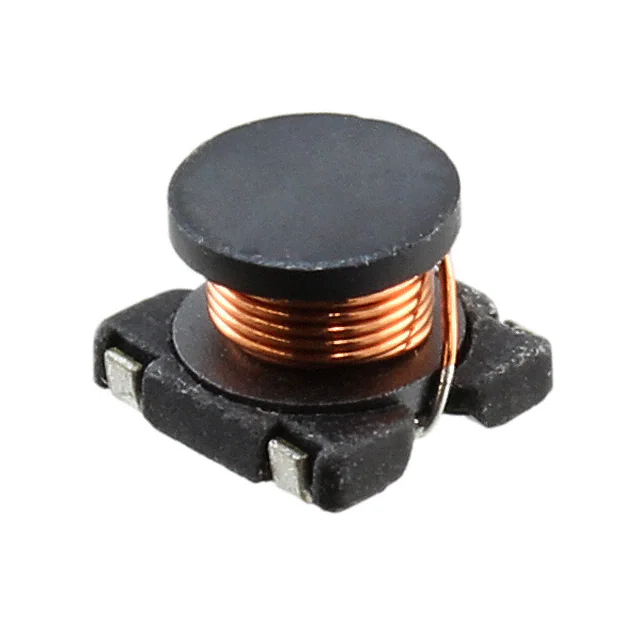

CR32NP-100KCFIXED IND 10UH 760MA 230MOHM SMD Sumida America Components Inc. |
7,484 |
|
规格书 |
CR32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 760 mA | - | Unshielded | 230mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.138" W (3.80mm x 3.50mm) | 0.118" (3.00mm) |
|

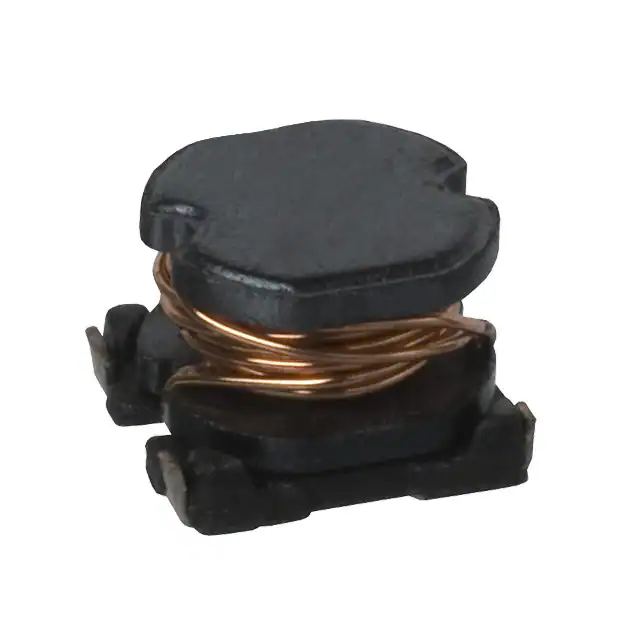

CR43NP-6R8MCFIXED IND 6.8UH 950MA 131.2 MOHM Sumida America Components Inc. |
1,832 |
|
规格书 |
CR43 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 950 mA | - | Unshielded | 131.2mOhm Max | - | 42.3MHz | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.189" L x 0.169" W (4.80mm x 4.30mm) | 0.138" (3.50mm) |
|

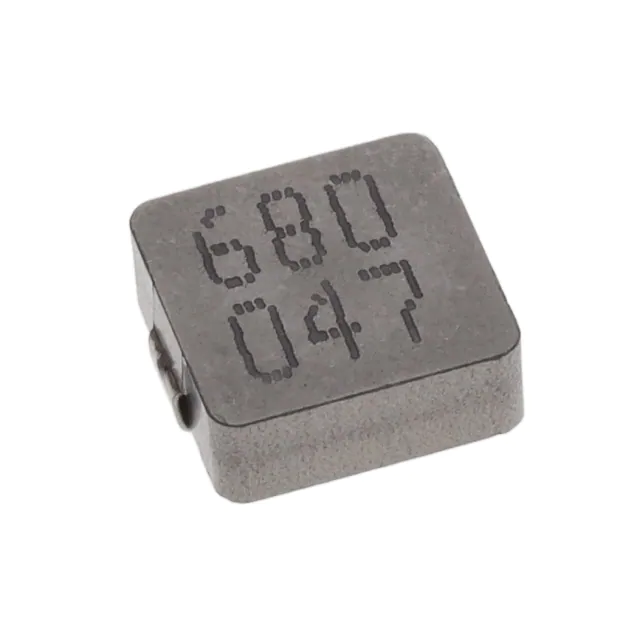

104CDMCCDS-680MCFIXED IND 68UH 2.5A 195MOHM SMD Sumida America Components Inc. |
27,726 |
|
规格书 |
104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 68 µH | ±20% | 2.5 A | 4A | Shielded | 195mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|

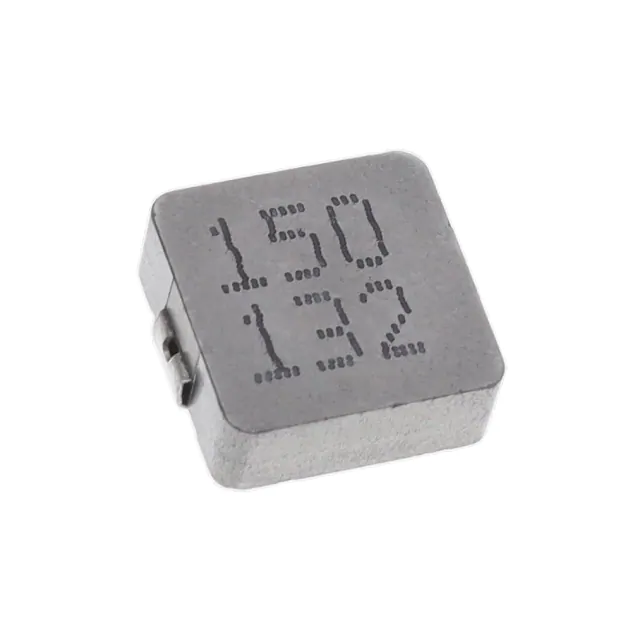

104CDMCCDS-150MCFIXED IND 15UH 6.3A 45 MOHM SMD Sumida America Components Inc. |
2,482 |
|
规格书 |
104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 15 µH | ±20% | 6.3 A | 7.2A | Shielded | 45mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|

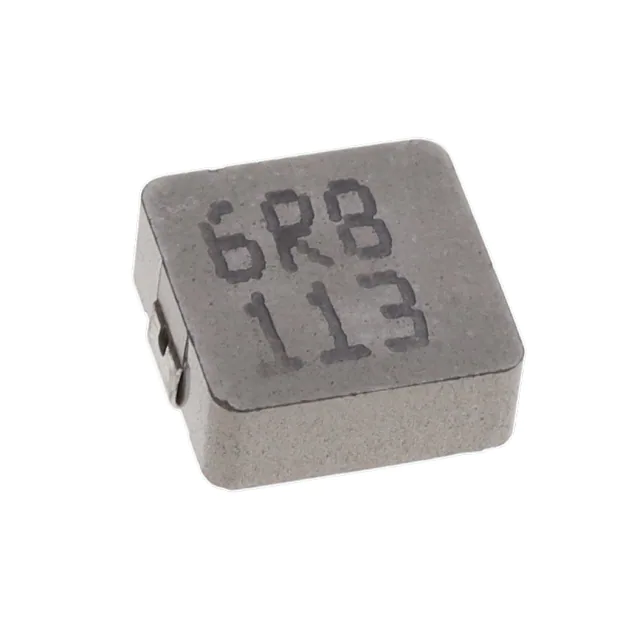

104CDMCCDS-6R8MCFIXED IND 6.8UH 8.5A 25MOHM SMD Sumida America Components Inc. |
2,154 |
|
规格书 |
104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 6.8 µH | ±20% | 8.5 A | 12.5A | Shielded | 25mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
