固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDH38D16BNP-8R2MCFIXED IND 8.2UH 1.1A 175MOHM SMD Sumida America Components Inc. |
0 |
|
- |
CDH38D16B | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 8.2 µH | ±20% | 1.1 A | 590mA | Unshielded | 175mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.159" L x 0.150" W (4.05mm x 3.80mm) | 0.071" (1.80mm) |
|
|
CDRH30D14RNP-100MCINDUCTOR Sumida America Components Inc. |
0 |
|
规格书 |
CDRH30D14R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 630 mA | 600mA | Shielded | 394mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.063" (1.60mm) |
|
|
CDRH30D14RNP-3R3MCINDUCTOR Sumida America Components Inc. |
0 |
|
规格书 |
CDRH30D14R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.28 A | 1.05A | Shielded | 111mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.063" (1.60mm) |
|
|
CDRH30D14RNP-2R2NCINDUCTOR Sumida America Components Inc. |
0 |
|
规格书 |
CDRH30D14R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 1.62 A | 1.3A | Shielded | 74mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.063" (1.60mm) |
|
|
CDRH30D14RNP-6R4MCINDUCTOR Sumida America Components Inc. |
0 |
|
规格书 |
CDRH30D14R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.4 µH | ±20% | 950 mA | 750mA | Shielded | 223mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.063" (1.60mm) |
|
|
CDRH30D14RNP-4R7MCINDUCTOR Sumida America Components Inc. |
0 |
|
规格书 |
CDRH30D14R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.16 A | 900mA | Shielded | 153mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.063" (1.60mm) |
|
|
CDRH30D14RNP-1R4NCINDUCTOR Sumida America Components Inc. |
0 |
|
规格书 |
CDRH30D14R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.4 µH | ±30% | 2.1 A | 1.6A | Shielded | 50mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.063" (1.60mm) |
|
|
CDRH30D14RNP-1R0NCINDUCTOR Sumida America Components Inc. |
0 |
|
规格书 |
CDRH30D14R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.43 A | 1.9A | Shielded | 39mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.063" (1.60mm) |
|

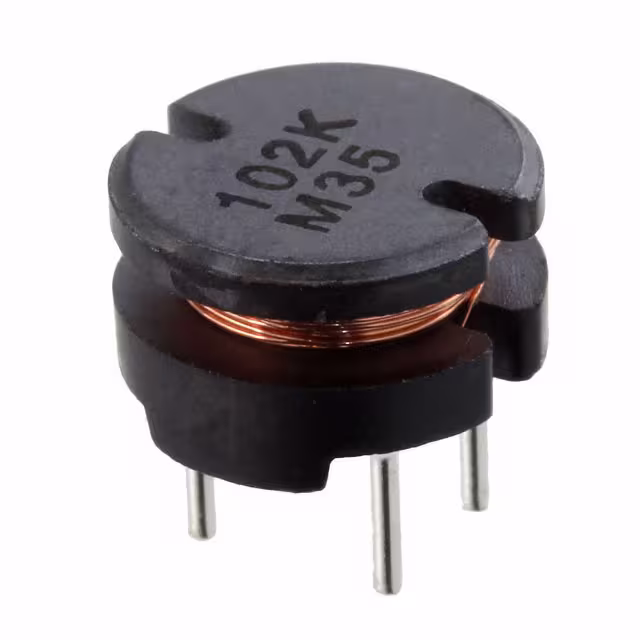

RCH106NP-102KFIXED IND 1MH 360MA 3.2 OHM TH Sumida America Components Inc. |
0 |
|
规格书 |
RCH-106 | Radial, Vertical Cylinder, 4 Leads (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 360 mA | - | Unshielded | 3.2Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.256" (6.50mm) |
|
CR54NP-120MCFIXED IND 12UH 1.4A 120 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CR54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 1.4 A | - | Unshielded | 120mOhm Max | - | 27.7MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.209" W (5.80mm x 5.30mm) | 0.191" (4.85mm) |
