固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDH3D13SNP-3R6MCFIXED IND 3.6UH 1.65A 150MOHM SM Sumida America Components Inc. |
0 |
|
- |
CDH3D13/S | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 3.6 µH | ±20% | 1.65 A | 1.25A | Unshielded | 150mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.157" L x 0.150" W (4.00mm x 3.80mm) | 0.055" (1.40mm) |
|
|
CDH3D13SNP-4R7MCFIXED IND 4.7UH 1.4A 175MOHM SMD Sumida America Components Inc. |
0 |
|
- |
CDH3D13/S | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 4.7 µH | ±20% | 1.4 A | 1.15A | Unshielded | 175mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.157" L x 0.150" W (4.00mm x 3.80mm) | 0.055" (1.40mm) |
|
|
CDH3D13SNP-7R0MCFIXED IND 7UH 1.3A 250 MOHM SMD Sumida America Components Inc. |
0 |
|
- |
CDH3D13/S | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 7 µH | ±20% | 1.3 A | 950mA | Unshielded | 250mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.157" L x 0.150" W (4.00mm x 3.80mm) | 0.055" (1.40mm) |
|

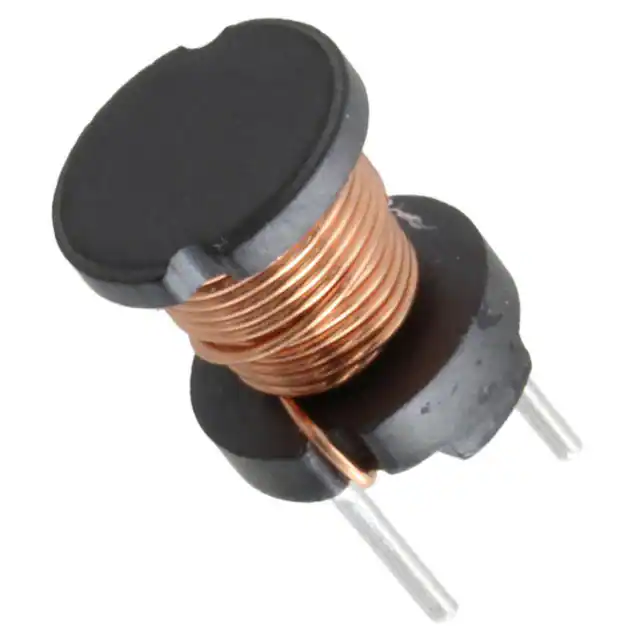

RCH895NP-680KFIXED IND 68UH 810MA 140 MOHM TH Sumida America Components Inc. |
0 |
|
规格书 |
RCH-895 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 810 mA | 1.1A | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.374" (9.50mm) |
|

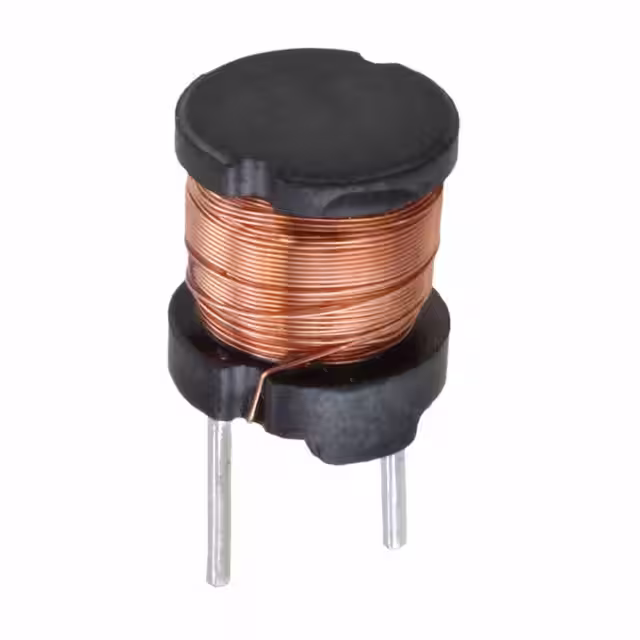

RCH895NP-822KFIXED IND 8.2MH 75MA 15.3 OHM TH Sumida America Components Inc. |
0 |
|
规格书 |
RCH-895 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 8.2 mH | ±10% | 75 mA | 100mA | Unshielded | 15.3Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.374" (9.50mm) |
|
RCH875NP-271KFIXED IND 270UH 320MA 880MOHM TH Sumida America Components Inc. |
0 |
|
规格书 |
RCH-875 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 320 mA | 510mA | Unshielded | 880mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
CDH53NP-120LCFIXED IND 12UH 1.12A 180MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDH53 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±15% | 1.12 A | - | Unshielded | 180mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.236" L x 0.205" W (6.00mm x 5.20mm) | 0.126" (3.20mm) |
|
|
CDH53NP-121JCFIXED IND 120UH 340MA 1.8OHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDH53 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±5% | 340 mA | - | Unshielded | 1.8Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.236" L x 0.205" W (6.00mm x 5.20mm) | 0.126" (3.20mm) |
|
|
CDH53NP-150KCFIXED IND 15UH 1A 250 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDH53 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 1 A | - | Unshielded | 250mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.236" L x 0.205" W (6.00mm x 5.20mm) | 0.126" (3.20mm) |
|
|
CDH53NP-151JCFIXED IND 150UH 310MA 2.4OHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDH53 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±5% | 310 mA | - | Unshielded | 2.4Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.236" L x 0.205" W (6.00mm x 5.20mm) | 0.126" (3.20mm) |
