固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRC-0807-220J-ULRADIAL INDUCTOR WITH LEADS, 22.0 Signal Transformer |
0 |
|
规格书 |
DRC-0807 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±5% | 1.5 A | 1.6A | Unshielded | 70mOhm Max | 20 @ 2.52MHz | 12MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.394" Dia (10.00mm) | 0.374" (9.50mm) |
|
|
DRC-0807-681J-ULRADIAL INDUCTOR WITH LEADS, 680H Signal Transformer |
0 |
|
规格书 |
DRC-0807 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±5% | 320 mA | 280mA | Unshielded | 1.5Ohm Max | 10 @ 796kHz | 1.9MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.394" Dia (10.00mm) | 0.374" (9.50mm) |
|

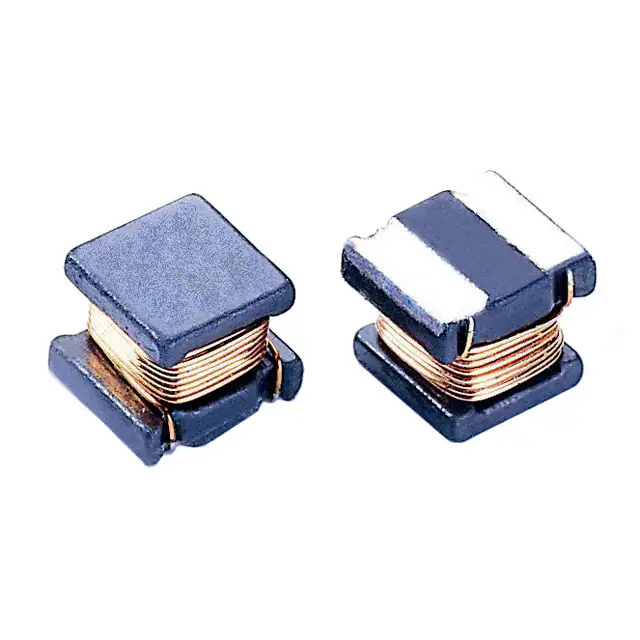

SC2220-1R0FIXED IND 1UH 4.4A 26.6 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC2220 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±20% | 4.4 A | 4A | Unshielded | 26.6mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.236" L x 0.209" W (6.00mm x 5.30mm) | 0.197" (5.00mm) |
|
|
SC2220-R10FIXED IND 100NH 7.8A 9.8MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC2220 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 nH | ±30% | 7.8 A | 6A | Unshielded | 9.8mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.236" L x 0.209" W (6.00mm x 5.30mm) | 0.197" (5.00mm) |
|
|
SCNR4012-220INDUCTOR SMD 22UH 0.51A 790MOHM Signal Transformer |
0 |
|
规格书 |
SCNR4012 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 500 mA | 510mA | Unshielded | 790mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.049" (1.25mm) |
|
|
F1B1-464612-120MFIXED IND 12.0UH 970MA 432 MOHM Signal Transformer |
0 |
|
规格书 |
F1B1-464612 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 12 µH | ±20% | 970 mA | 850mA | Unshielded | 432Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.181" L x 0.181" W (4.60mm x 4.60mm) | 0.047" (1.20mm) |
|
|
F1B1-464615-120MFIXED IND 12.0UH 950MA 396 MOHM Signal Transformer |
0 |
|
规格书 |
F1B1-464615 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 12 µH | ±20% | 950 mA | 1.3A | Unshielded | 396Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.181" L x 0.181" W (4.60mm x 4.60mm) | 0.059" (1.50mm) |
|
|
F1B1-464612-100MFIXED IND 10.0UH 1.0A 384 MOHM Signal Transformer |
0 |
|
规格书 |
F1B1-464612 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 10 µH | ±20% | 1 A | 920mA | Unshielded | 384Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.181" L x 0.181" W (4.60mm x 4.60mm) | 0.047" (1.20mm) |
|
|
F1B1-464615-1R5MFIXED IND 1.5UH 2.0A 96 MOHM Signal Transformer |
0 |
|
规格书 |
F1B1-464615 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 1.5 µH | ±20% | 2 A | 3.5A | Unshielded | 96Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.181" L x 0.181" W (4.60mm x 4.60mm) | 0.059" (1.50mm) |
|
|
F1B1-464612-5R6MFIXED IND 5.6UH 1.39A 210 MOHM Signal Transformer |
0 |
|
规格书 |
F1B1-464612 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 5.6 µH | ±20% | 1.39 A | 1.3A | Unshielded | 210Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.181" L x 0.181" W (4.60mm x 4.60mm) | 0.047" (1.20mm) |
