固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC54-680FIXED IND 68UH 780MA 460MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC54 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 780 mA | 610mA | Unshielded | 460mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.240" L x 0.217" W (6.10mm x 5.50mm) | 0.189" (4.80mm) |
|
|
SC54-820FIXED IND 82UH 700MA 600MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC54 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 82 µH | ±20% | 700 mA | 580mA | Unshielded | 600mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.240" L x 0.217" W (6.10mm x 5.50mm) | 0.189" (4.80mm) |
|
SC32-2R2FIXED IND 2.2UH 1.7A 84 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC32 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 1.7 A | 1.6A | Unshielded | 84mOhm Max | - | - | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - | 0.150" L x 0.130" W (3.80mm x 3.30mm) | 0.094" (2.40mm) |
|
F1C1-322512-6R8MFIXED IND 3.8 UH 1.9A 210 MOHM Signal Transformer |
0 |
|
规格书 |
F1C1-3225 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 6.8 µH | ±20% | 1.9 A | 2.4A | Shielded | 210mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
F1C1-322512-100MFIXED IND 10.0 UH 1.8 A 230 MOHM Signal Transformer |
0 |
|
规格书 |
F1C1-3225 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 10 µH | ±20% | 1.8 A | 1.9A | Shielded | 230mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
F1C1-322512-2R2MFIXED IND 2.2 UH 3.0A 70 MOHM Signal Transformer |
0 |
|
规格书 |
F1C1-3225 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 3 A | 4.2A | Shielded | 70mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
F1C1-322510-100MFIXED IND 10.0 UH 1.8A 365 MOHM Signal Transformer |
0 |
|
规格书 |
F1C1-3225 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 10 µH | ±20% | 1.8 A | 1.8A | Shielded | 365mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.039" (1.00mm) |
|
|
F1C1-322510-6R8MFIXED IND 6.8 UH 1.6A 320 MOHM Signal Transformer |
0 |
|
规格书 |
F1C1-3225 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 6.8 µH | ±20% | 1.6 A | 2A | Shielded | 320mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.039" (1.00mm) |
|
|
DRC-0406-1R2J-ULRADIAL INDUCTOR WITH LEADS, 1.2H Signal Transformer |
0 |
|
规格书 |
DRC-0406 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±5% | 1.95 A | - | Unshielded | 58mOhm Max | 100 @ 7.96MHz | 120MHz | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.217" Dia (5.50mm) | 0.315" (8.00mm) |
|

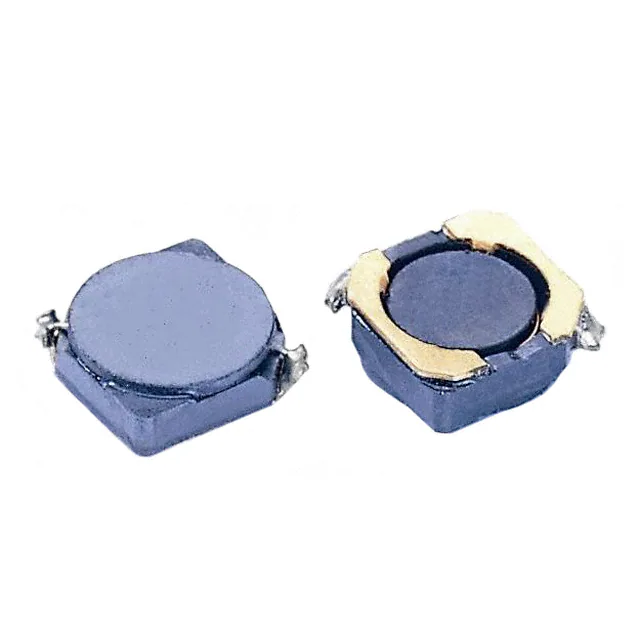

SCRH5D18-4R1FIXED IND 4.1UH 1.95A 57MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCRH5D18 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 4.1 µH | ±30% | 1.95 A | 1.95A | Shielded | 57mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.079" (2.00mm) |
