固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SFAPI-470K-UL-TRFIXED IND 47UH 804MA AXIAL Signal Transformer |
1,000 |
|
规格书 |
SFAPI | Axial | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±10% | 804 mA | - | Unshielded | 109mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.650" L (6.60mm x 16.50mm) | - |
|
|
SFAPI-472K-UL-TRFIXED IND 4.7MH 100MA AXIAL Signal Transformer |
1,000 |
|
规格书 |
SFAPI | Axial | Tape & Reel (TR) | Active | - | Ferrite | 4.7 mH | ±10% | 100 mA | - | Unshielded | 10.5Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.650" L (6.60mm x 16.50mm) | - |
|
|
SFAPI-332K-UL-TRFIXED IND 3.3MH 125 MA AXIAL Signal Transformer |
1,000 |
|
规格书 |
SFAPI | Axial | Tape & Reel (TR) | Active | - | Ferrite | 3.3 mH | ±10% | 125 mA | - | Unshielded | 6.56Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.650" L (6.60mm x 16.50mm) | - |
|
HCTI-100-7.0FIXED IND 100UH 7A 37 MOHM TH Signal Transformer |
0 |
|
规格书 |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 100 µH | ±15% | 7 A | - | Shielded | 37mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|

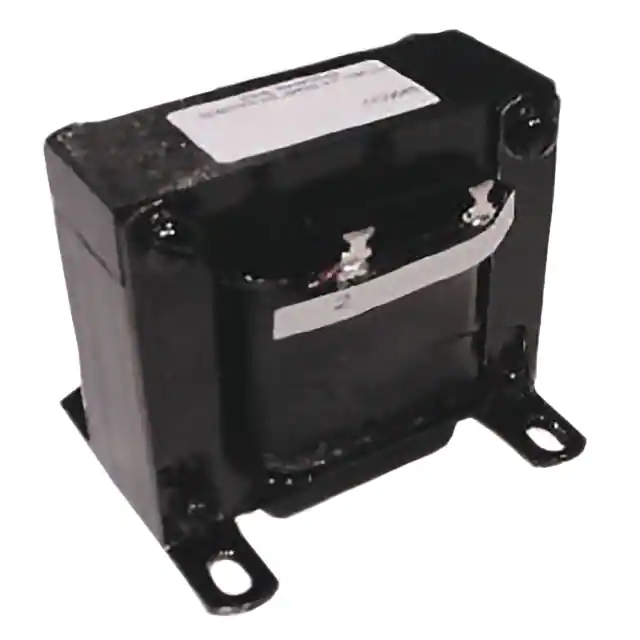

CH-2FIXED IND 70MH 2A 900 MOHM CHASS Signal Transformer |
4 |
|
规格书 |
- | Nonstandard | Box | Active | - | - | 70 mH | - | 2 A | - | Unshielded | 900mOhm | - | - | - | - | - | - | Chassis Mount | - | 3.374" L x 2.752" W (85.70mm x 69.90mm) | 2.874" (73.00mm) |
|

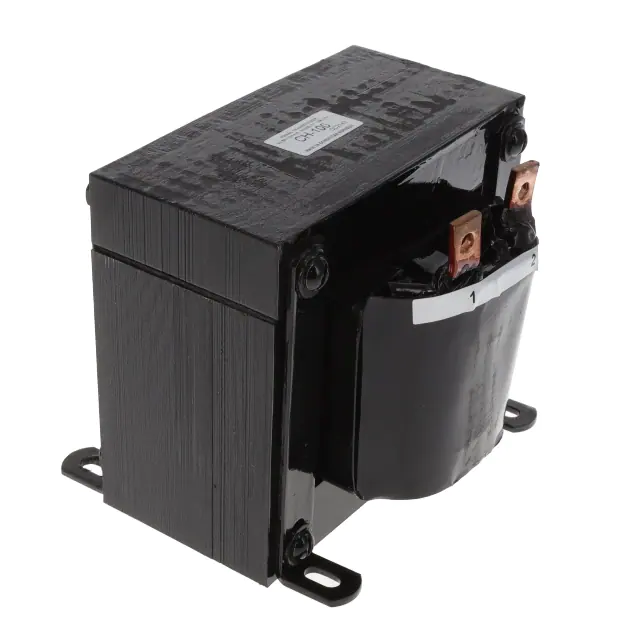

CH-100FIXED IND 500UH 100A 5 MOHM CHAS Signal Transformer |
0 |
|
规格书 |
- | Nonstandard | Box | Active | - | - | 500 µH | - | 100 A | - | Unshielded | 5mOhm | - | - | - | - | - | - | Chassis Mount | - | 6.374" L x 6.252" W (161.90mm x 158.80mm) | 5.374" (136.50mm) |
|
|
HCTI-560-3.6FIXED IND 560UH 3.6A 140 MOHM TH Signal Transformer |
0 |
|
规格书 |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 560 µH | ±15% | 3.6 A | - | Shielded | 140mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
HCTI-820-2.6FIXED IND 820UH 2.6A 270 MOHM TH Signal Transformer |
0 |
|
规格书 |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 820 µH | ±15% | 2.6 A | - | Shielded | 270mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
CH-8FIXED IND 30MH 8A 300 MOHM CHASS Signal Transformer |
0 |
|
规格书 |
- | Nonstandard | Box | Active | - | - | 30 mH | - | 8 A | - | Unshielded | 300mOhm | - | - | - | - | - | - | Chassis Mount | - | 4.126" L x 3.626" W (104.80mm x 92.10mm) | 3.500" (88.90mm) |
|
CH-25FIXED IND 5MH 25A 25 MOHM CHASS Signal Transformer |
0 |
|
规格书 |
- | Nonstandard | Box | Active | - | - | 5 mH | - | 25 A | - | Unshielded | 25mOhm | - | - | - | - | - | - | Chassis Mount | - | 5.252" L x 4.752" W (133.40mm x 120.70mm) | 4.437" (112.70mm) |
