固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

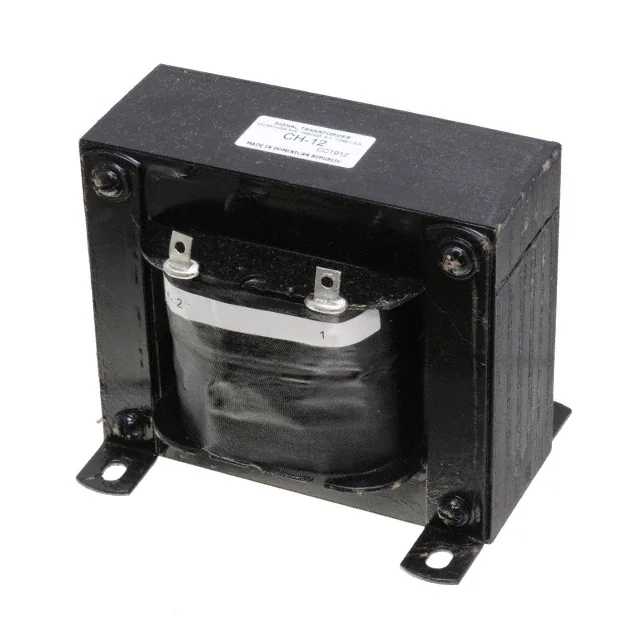

CH-12FIXED IND 15MH 12A 100 MOHM CHAS Signal Transformer |
32 |
|
规格书 |
- | Nonstandard | Box | Active | - | - | 15 mH | - | 12 A | - | Unshielded | 100mOhm | - | - | - | - | - | - | Chassis Mount | - | 5.252" L x 4.000" W (133.40mm x 101.60mm) | 4.437" (112.70mm) |
|
DRC-V-220KFIXED IND 22UH 2.55A 0.07OHM TH Signal Transformer |
2,330 |
|
规格书 |
DRC-V | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 2.55 A | 2A | Unshielded | 70mOhm Max | 40 @ 2.52MHz | 9.2MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Through Hole | Radial | 0.343" Dia (8.70mm) | 0.492" (12.50mm) |
|
|
DRC-V-100KFIXED IND 10UH 3.1A 0.045OHM TH Signal Transformer |
2,135 |
|
规格书 |
DRC-V | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 3.1 A | 3A | Unshielded | 45mOhm Max | 50 @ 2.52MHz | 14MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Through Hole | Radial | 0.343" Dia (8.70mm) | 0.492" (12.50mm) |
|
|
DRC-V-3R3MFIXED IND 3.3UH 4.6A 0.025OHM TH Signal Transformer |
1,449 |
|
规格书 |
DRC-V | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 4.6 A | 5.5A | Unshielded | 25mOhm Max | 20 @ 7.96MHz | 79MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Through Hole | Radial | 0.343" Dia (8.70mm) | 0.492" (12.50mm) |
|
|
DRC-V-2R2MFIXED IND 2.2UH 5.6A 0.021OHM TH Signal Transformer |
2,449 |
|
规格书 |
DRC-V | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 5.6 A | 6.5A | Unshielded | 21mOhm Max | 20 @ 7.96MHz | 100MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Through Hole | Radial | 0.343" Dia (8.70mm) | 0.492" (12.50mm) |
|
SCRH104R-220FIXED IND 22UH 2.7A 73 MOHM SMD Signal Transformer |
12,682 |
|
规格书 |
SCRH104R | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±30% | 2.7 A | 2.9A | Shielded | 73mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
|
DRC-V-822KFIXED IND 8.2MH 130MA 21OHM TH Signal Transformer |
2,478 |
|
规格书 |
DRC-V | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 8.2 mH | ±10% | 130 mA | 50mA | Unshielded | 21Ohm Max | 20 @ 252kHz | 200kHz | - | -40°C ~ 125°C | 252 kHz | - | Through Hole | Radial | 0.343" Dia (8.70mm) | 0.492" (12.50mm) |
|
|
DRC-V-391KFIXED IND 390UH 500MA 1OHM TH Signal Transformer |
2,470 |
|
规格书 |
DRC-V | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 500 mA | 480mA | Unshielded | 1Ohm Max | 10 @ 796kHz | 2.1MHz | - | -40°C ~ 125°C | 796 kHz | - | Through Hole | Radial | 0.343" Dia (8.70mm) | 0.492" (12.50mm) |
|
|
DRC-V-102KFIXED IND 1MH 350MA 2.9OHM TH Signal Transformer |
2,313 |
|
规格书 |
DRC-V | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 350 mA | 290mA | Unshielded | 2.9Ohm Max | 20 @ 252kHz | 1.3MHz | - | -40°C ~ 125°C | 252 kHz | - | Through Hole | Radial | 0.343" Dia (8.70mm) | 0.492" (12.50mm) |
|

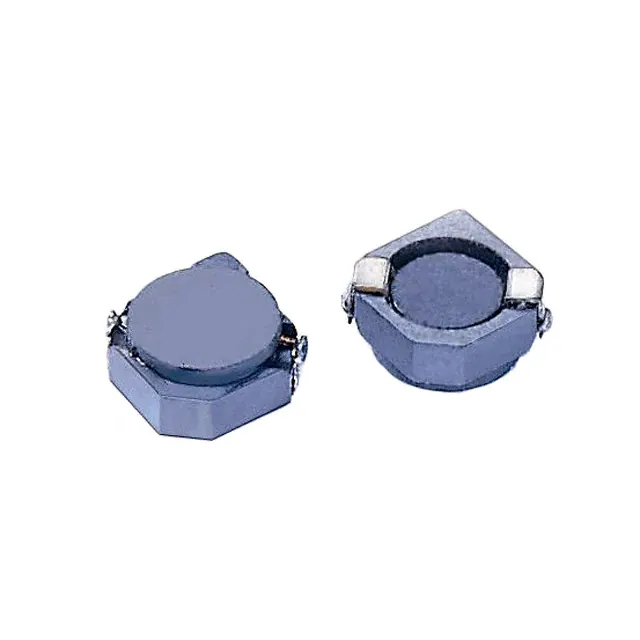

SCRH2D11-100FIXED IND 10UH 700MA 524MOHM SMD Signal Transformer |
6,011 |
|
规格书 |
SCRH2D11 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±30% | 700 mA | 340mA | Shielded | 524mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.051" (1.30mm) |
