固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLPPI06-15-1R0MHI POWER IND 1.00UH 18.4 MOHM 2 Signal Transformer |
0 |
|
规格书 |
SLPPI06 | Nonstandard | Bulk | Obsolete | Molded | - | 1 µH | ±20% | 7.6 A | 10A | Shielded | 21mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.059" (1.50mm) |
|

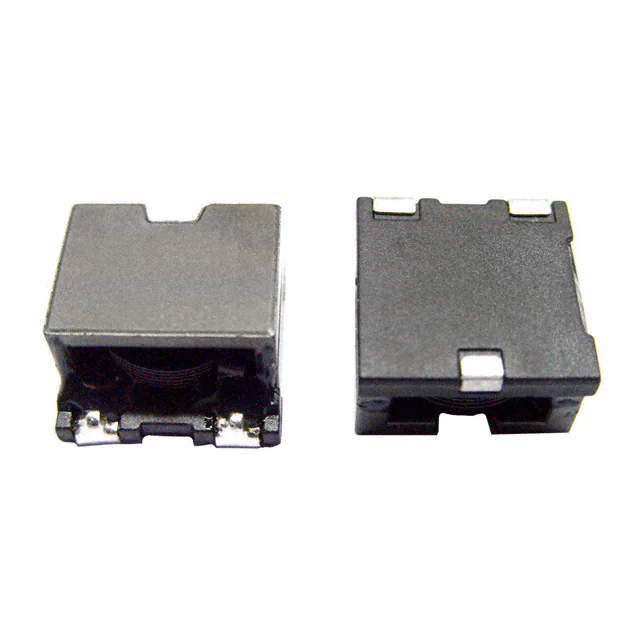

SCEP147H-1R8FIXED IND 1.8UH 16.5A 3.9MOHM SM Signal Transformer |
0 |
|
规格书 |
SCEP147H | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.8 µH | ±20% | 16.5 A | 29.6A | Shielded | 3.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
SCIHP1338-8R2MFIXED IND 8.2UH 8A 31 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCIHP1338 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 8.2 µH | ±20% | 8 A | 13.5A | Shielded | 31mOhm | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | 0.150" (3.80mm) |
|
|
SCIHP0718-5R6MFIXED IND 5.6UH 2.8A 108MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCIHP0718 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 5.6 µH | ±20% | 2.8 A | 5A | Shielded | 108mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.071" (1.80mm) |
|
|
HTTI-82-4.8TOROIDAL IND HI TEMP 82UH 4.8ADC Signal Transformer |
0 |
|
规格书 |
HTTI | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 82 µH | ±15% | 4.8 A | - | Shielded | 49mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
SLPPI06-15-2R2MHI POWER IND 2.2UH 36.0 MOHM 7. Signal Transformer |
0 |
|
规格书 |
SLPPI06 | Nonstandard | Bulk | Obsolete | Molded | - | 2.2 µH | ±20% | 5.2 A | 7A | Shielded | 42mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.059" (1.50mm) |
|
|
SLPPI06-15-1R5MHI POWER IND 1.50UH 23.9 MOHM 2 Signal Transformer |
0 |
|
规格书 |
SLPPI06 | Nonstandard | Bulk | Obsolete | Molded | - | 1.5 µH | ±20% | 6 A | 9.6A | Shielded | 28mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.059" (1.50mm) |
|
|
SLPPI06-18-2R2MHI POWER IND 2.20UH 29.7MOHM 11 Signal Transformer |
0 |
|
规格书 |
SLPPI06 | Nonstandard | Bulk | Obsolete | Molded | - | 2.2 µH | ±20% | 5 A | 10A | Shielded | 34mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.071" (1.80mm) |
|
|
SLPPI06-15-3R3MHI POWER IND 3.30UH 54.0 MOHM Signal Transformer |
0 |
|
规格书 |
SLPPI06 | Nonstandard | Bulk | Obsolete | Molded | - | 3.3 µH | ±20% | 4.2 A | 6.4A | Shielded | 63mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.059" (1.50mm) |
|
|
SLPPI06-18-100MHI POWER IND 10.0UH 125.0 MOHM Signal Transformer |
0 |
|
规格书 |
SLPPI06 | Nonstandard | Bulk | Obsolete | Molded | - | 10 µH | ±20% | 2.4 A | 4A | Shielded | 145mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.071" (1.80mm) |
