固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

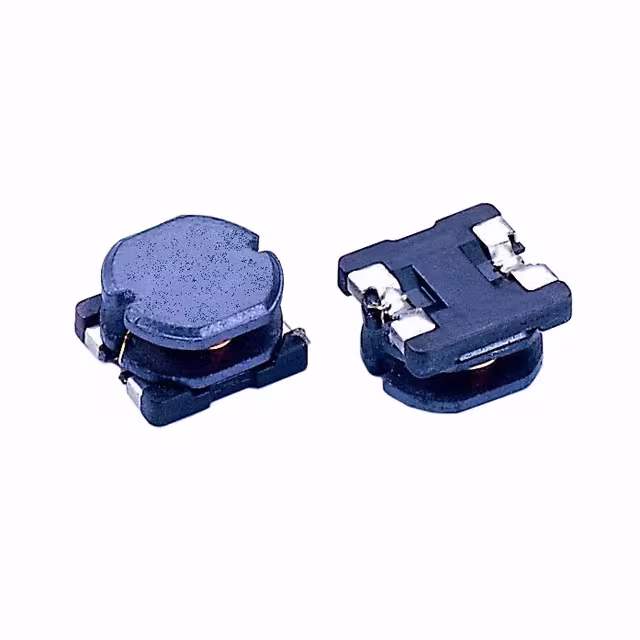

SC73B-390FIXED IND 39UH 1.3A 220 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 39 µH | ±20% | 1.3 A | 740mA | Unshielded | 220mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-470FIXED IND 47UH 1.22A 290MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 1.22 A | 680mA | Unshielded | 290mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-560FIXED IND 56UH 1.13A 340MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 56 µH | ±20% | 1.13 A | 640mA | Unshielded | 340mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-680FIXED IND 68UH 1.05A 400MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 1.05 A | 590mA | Unshielded | 400mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-820FIXED IND 82UH 960MA 470MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 82 µH | ±20% | 960 mA | 540mA | Unshielded | 470mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
SCIHP1338-1R0MFIXED IND 1UH 22A 3.5 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCIHP1338 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 22 A | 38A | Shielded | 3.5mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | 0.150" (3.80mm) |
|
|
SCIHP1338-2R2MFIXED IND 2.2UH 16A 8 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCIHP1338 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 16 A | 25A | Shielded | 8mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | 0.150" (3.80mm) |
|
|
SCIHP1338-3R3MFIXED IND 3.3UH 12A 12 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCIHP1338 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 12 A | 22A | Shielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | 0.150" (3.80mm) |
|
|
SCIHP1338-4R7MFIXED IND 4.7UH 10A 15 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCIHP1338 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 10 A | 18A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | 0.150" (3.80mm) |
|
|
SCIHP1338-5R6MFIXED IND 5.6UH 9.5A 18 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCIHP1338 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 5.6 µH | ±20% | 9.5 A | 16A | Shielded | 18mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | 0.150" (3.80mm) |
