固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCIH1040HC-R82MFIXED IND 820NH 22A 3 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCIH1040HC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 820 nH | ±20% | 22 A | 30A | Shielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.453" L x 0.402" W (11.50mm x 10.20mm) | 0.157" (4.00mm) |
|

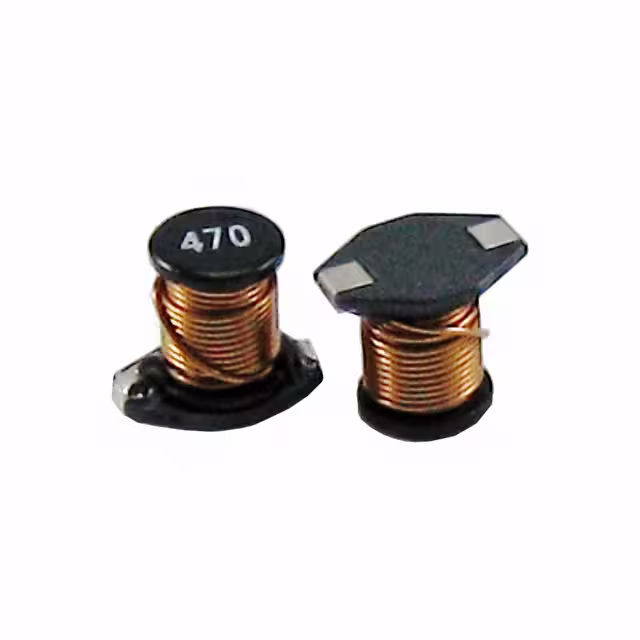

SC3340F-100FIXED IND 10UH 5.4A 40 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC3340F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 5.4 A | 8A | Unshielded | 40mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | 0.450" (11.43mm) |
|
|
SC3340F-101FIXED IND 100UH 1.8A 220MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC3340F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 1.8 A | 2.5A | Unshielded | 220mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | 0.450" (11.43mm) |
|
|
SC3340F-102FIXED IND 1MH 580MA 2 OHM SMD Signal Transformer |
0 |
|
规格书 |
SC3340F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 580 mA | 800mA | Unshielded | 2Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | 0.450" (11.43mm) |
|
|
SC3340F-150FIXED IND 15UH 4.5A 50 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC3340F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 4.5 A | 7A | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | 0.450" (11.43mm) |
|
|
SC3340F-151FIXED IND 150UH 1.5A 340MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC3340F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | 1.5 A | 2A | Unshielded | 340mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | 0.450" (11.43mm) |
|
|
SC3340F-1R5FIXED IND 1.5UH 13.5A 11MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC3340F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 13.5 A | 18A | Unshielded | 11mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | 0.450" (11.43mm) |
|
|
SC3340F-221FIXED IND 220UH 1.2A 440MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC3340F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±20% | 1.2 A | 1.6A | Unshielded | 440mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | 0.450" (11.43mm) |
|
|
SC3340F-2R2FIXED IND 2.2UH 11.5A 15MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC3340F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 11.5 A | 14A | Unshielded | 15mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | 0.450" (11.43mm) |
|
|
SC3340F-330FIXED IND 33UH 3.3A 80 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC3340F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 3.3 A | 4A | Unshielded | 80mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | 0.450" (11.43mm) |
