固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

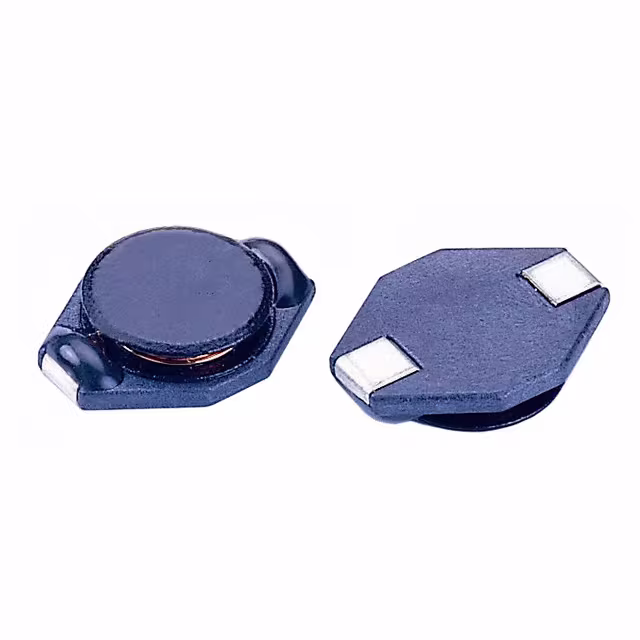

SC3308F-220FIXED IND 22UH 1.64A 230MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC3308F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 1.64 A | 1.6A | Unshielded | 230mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | 0.118" (3.00mm) |
|
|
SC3308F-330FIXED IND 33UH 1.3A 300 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC3308F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 1.3 A | 1.4A | Unshielded | 300mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | 0.118" (3.00mm) |
|
|
SC3308F-331FIXED IND 330UH 380MA 2.7OHM SMD Signal Transformer |
0 |
|
规格书 |
SC3308F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 380 mA | 400mA | Unshielded | 2.7Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | 0.118" (3.00mm) |
|
|
SC3308F-471FIXED IND 470UH 280MA 4 OHM SMD Signal Transformer |
0 |
|
规格书 |
SC3308F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±20% | 280 mA | 300mA | Unshielded | 4Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | 0.118" (3.00mm) |
|
|
SC3308F-681FIXED IND 680UH 240MA 5.3OHM SMD Signal Transformer |
0 |
|
规格书 |
SC3308F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 240 mA | 200mA | Unshielded | 5.3Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | 0.118" (3.00mm) |
|
SCNR4018-101INDUCTOR SMD 100UH 0.40A 2.20OH Signal Transformer |
0 |
|
规格书 |
SCNR4018 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 320 mA | 400mA | Unshielded | 2.22Ohm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.063" (1.60mm) |
|
|
SLPPI04-02-R68M-TRHI POWER IND 0.68UH 13.3 MOHM 1 Signal Transformer |
0 |
|
规格书 |
SLPPI04 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 7 A | 11A | Shielded | 16mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.173" L x 0.157" W (4.40mm x 4.00mm) | 0.079" (2.00mm) |
|
|
SLPPI04-02-2R2M-TRHI POWER IND 2.20UH 31.5 MOHM 6 Signal Transformer |
0 |
|
规格书 |
SLPPI04 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 3.5 A | 5.5A | Shielded | 38mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.173" L x 0.157" W (4.40mm x 4.00mm) | 0.079" (2.00mm) |
|
|
SLPPI03-15-1R0M-TRHI POWER IND 1.00UH 36.0 MOHM 6 Signal Transformer |
0 |
|
规格书 |
SLPPI03 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 3.5 A | 5.2A | Shielded | 42mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.134" L x 0.118" W (3.40mm x 3.00mm) | 0.059" (1.50mm) |
|
|
SLPPI04-02-R33M-TRHI POWER IND 0.33UH 7.0 MOHM 14 Signal Transformer |
0 |
|
规格书 |
SLPPI04 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 9 A | 12A | Shielded | 8.4mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.173" L x 0.157" W (4.40mm x 4.00mm) | 0.079" (2.00mm) |
