上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

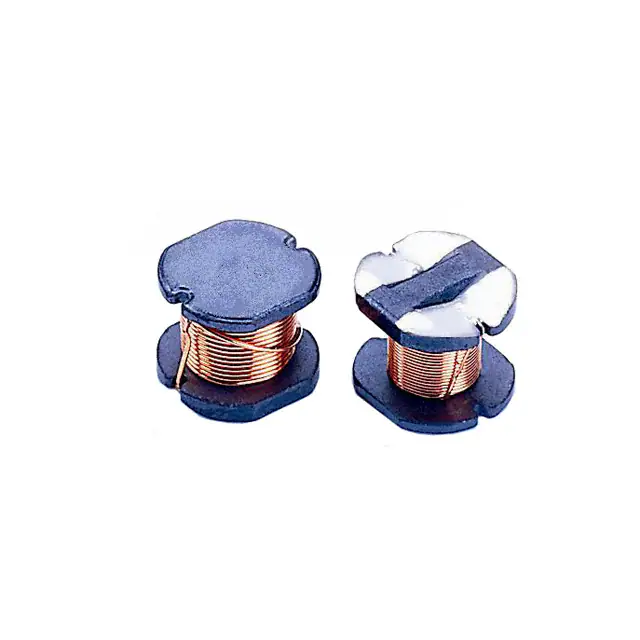

SC108-391FIXED IND 390UH 800MA 670MOHM SM Signal Transformer |
0 |
|
规格书 |
SC108 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 390 µH | ±20% | 800 mA | 800mA | Unshielded | 670mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.327" (8.30mm) |
|
|
SC108-470FIXED IND 47UH 2.6A 110 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC108 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 2.6 A | 2A | Unshielded | 110mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.327" (8.30mm) |
|
|
SC108-471FIXED IND 470UH 750MA 880MOHM SM Signal Transformer |
0 |
|
规格书 |
SC108 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±20% | 750 mA | 700mA | Unshielded | 880mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.327" (8.30mm) |
|
|
SC108-560FIXED IND 56UH 2.4A 120 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC108 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 56 µH | ±20% | 2.4 A | 1.9A | Unshielded | 120mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.327" (8.30mm) |
|
|
SC108-680FIXED IND 68UH 2.3A 150 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC108 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 2.3 A | 1.8A | Unshielded | 150mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.327" (8.30mm) |
|
|
SC108-681FIXED IND 680UH 720MA 1.18OHM SM Signal Transformer |
0 |
|
规格书 |
SC108 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 720 mA | 600mA | Unshielded | 1.18Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.327" (8.30mm) |
|
|
SC108-820FIXED IND 82UH 2A 190 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC108 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 82 µH | ±20% | 2 A | 1.6A | Unshielded | 190mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.327" (8.30mm) |
|
SCRH1035R-100FIXED IND 10UH 3A 69 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCRH1035R | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±30% | 3 A | 3.4A | Shielded | 69mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.122" (3.10mm) |
|
|
SCRH1035R-101FIXED IND 100UH 1.08A 450MOHM SM Signal Transformer |
0 |
|
规格书 |
SCRH1035R | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±30% | 1.08 A | 1.2A | Shielded | 450mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.122" (3.10mm) |
|
|
SCRH1035R-120FIXED IND 12UH 2.85A 82 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCRH1035R | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±30% | 2.85 A | 3.2A | Shielded | 82mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.122" (3.10mm) |
