固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

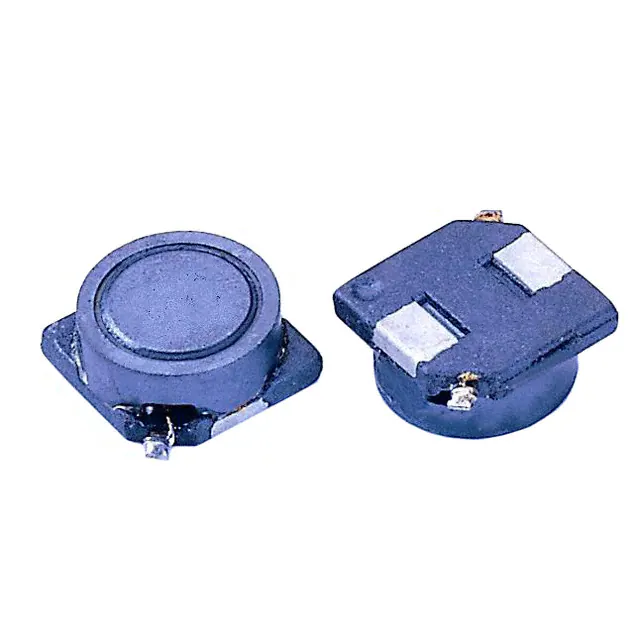

SCB63C-820FIXED IND 82UH 700MA 572MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCB63C | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 82 µH | ±20% | 700 mA | 250mA | Shielded | 572mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.118" (3.00mm) |
|

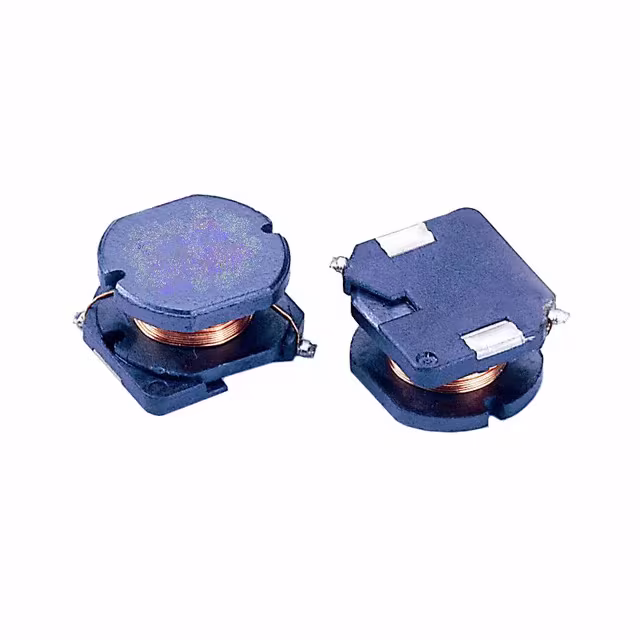

SC105B-101FIXED IND 100UH 1.2A 370MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC105B | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 µH | ±20% | 1.2 A | 970mA | Unshielded | 370mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.429" L x 0.386" W (10.90mm x 9.80mm) | 0.236" (6.00mm) |
|
|
SC105B-120FIXED IND 12UH 3.2A 70 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC105B | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 12 µH | ±20% | 3.2 A | 2.45A | Unshielded | 70mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.429" L x 0.386" W (10.90mm x 9.80mm) | 0.236" (6.00mm) |
|
|
SC105B-150FIXED IND 15UH 2.9A 80 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC105B | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | ±20% | 2.9 A | 2.27A | Unshielded | 80mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.429" L x 0.386" W (10.90mm x 9.80mm) | 0.236" (6.00mm) |
|
|
SC105B-180FIXED IND 18UH 2.6A 90 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC105B | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 18 µH | ±20% | 2.6 A | 2.15A | Unshielded | 90mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.429" L x 0.386" W (10.90mm x 9.80mm) | 0.236" (6.00mm) |
|
|
SC105B-181FIXED IND 180UH 860MA 630MOHM SM Signal Transformer |
0 |
|
规格书 |
SC105B | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 180 µH | ±20% | 860 mA | 720mA | Unshielded | 630mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.429" L x 0.386" W (10.90mm x 9.80mm) | 0.236" (6.00mm) |
|
|
SC105B-220FIXED IND 22UH 2.4A 100 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC105B | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 2.4 A | 1.95A | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.429" L x 0.386" W (10.90mm x 9.80mm) | 0.236" (6.00mm) |
|
|
SC105B-221FIXED IND 220UH 820MA 730MOHM SM Signal Transformer |
0 |
|
规格书 |
SC105B | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 220 µH | ±20% | 820 mA | 660mA | Unshielded | 730mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.429" L x 0.386" W (10.90mm x 9.80mm) | 0.236" (6.00mm) |
|
|
SC105B-270FIXED IND 27UH 2.1A 136 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC105B | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 27 µH | ±20% | 2.1 A | 1.76A | Unshielded | 136mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.429" L x 0.386" W (10.90mm x 9.80mm) | 0.236" (6.00mm) |
|
|
SC105B-271FIXED IND 270UH 720MA 970MOHM SM Signal Transformer |
0 |
|
规格书 |
SC105B | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 270 µH | ±20% | 720 mA | 570mA | Unshielded | 970mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.429" L x 0.386" W (10.90mm x 9.80mm) | 0.236" (6.00mm) |
