固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

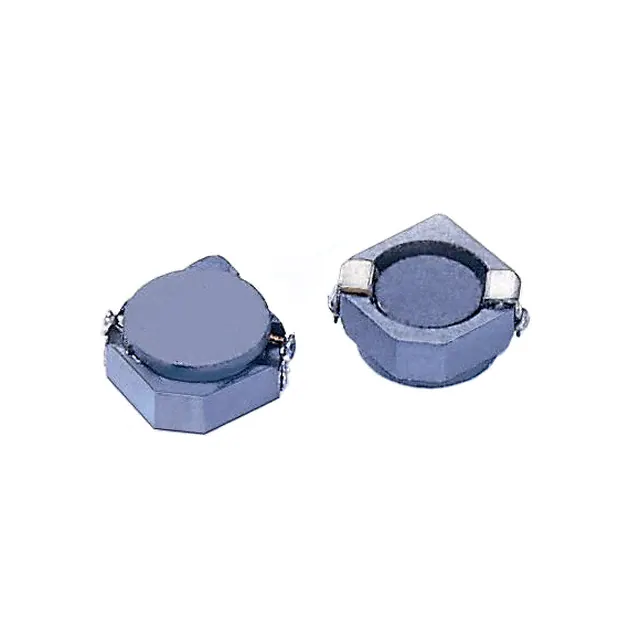

SCRH3D16-470FIXED IND 47UH 520MA 940MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCRH3D16 | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±30% | 520 mA | 220mA | Shielded | 940mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.071" (1.80mm) |
|
|
SCRH3D16-680FIXED IND 68UH 440MA 1.28OHM SMD Signal Transformer |
0 |
|
规格书 |
SCRH3D16 | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±30% | 440 mA | 200mA | Shielded | 1.28Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.071" (1.80mm) |
|
|
SCRH3D16-6R8FIXED IND 6.8UH 1.14A 170MOHM SM Signal Transformer |
0 |
|
规格书 |
SCRH3D16 | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±30% | 1.14 A | 730mA | Shielded | 170mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.071" (1.80mm) |
|
|
SCRH3D16-820FIXED IND 82UH 410MA 1.55OHM SMD Signal Transformer |
0 |
|
规格书 |
SCRH3D16 | Nonstandard | Tape & Reel (TR) | Active | - | - | 82 µH | ±30% | 410 mA | 170mA | Shielded | 1.55Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.071" (1.80mm) |
|
F1A1-303012-5R6NFIXED IND 5.6UH 670MA 442 MOHM Signal Transformer |
0 |
|
规格书 |
F1A1-303012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 5.6 µH | ±30% | 670 mA | 350mA | Shielded | 442Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.117" L x 0.117" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
F1A1-303012-2R2NFIXED IND 2.2UH 900MA 182 MOHM Signal Transformer |
0 |
|
规格书 |
F1A1-303012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 2.2 µH | ±30% | 900 mA | 600mA | Shielded | 182Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.117" L x 0.117" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
F1A1-303012-4R7NFIXED IND 4.7UH 720MA 312 MOHM Signal Transformer |
0 |
|
规格书 |
F1A1-303012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 4.7 µH | ±30% | 720 mA | 400mA | Shielded | 312Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.117" L x 0.117" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
F1A1-303012-6R8NFIXED IND 6.8UH 620MA 520 MOHM Signal Transformer |
0 |
|
规格书 |
F1A1-303012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 6.8 µH | ±30% | 620 mA | 300mA | Shielded | 520Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.117" L x 0.117" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
F1A1-303012-8R2NFIXED IND 8.2UH 580MA 560 MOHM Signal Transformer |
0 |
|
规格书 |
F1A1-303012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 8.2 µH | ±30% | 580 mA | 280mA | Shielded | 560Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.117" L x 0.117" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
F1A1-303012-3R3NFIXED IND 3.3UH 820MA 260 MOHM Signal Transformer |
0 |
|
规格书 |
F1A1-303012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 3.3 µH | ±30% | 820 mA | 500mA | Shielded | 260Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.117" L x 0.117" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
