固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F1A2-383815-5R6NFIXED IND 5.6UH 950MA 150 MOHM Signal Transformer |
0 |
|
规格书 |
F1A2-3838 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 5.6 µH | ±30% | 950 mA | 1.2A | Shielded | 150mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.059" (1.50mm) |
|
|
F1A2-383815-3R3NFIXED IND 3.3UH 1.10A 120 MOHM Signal Transformer |
0 |
|
规格书 |
F1A2-3838 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±30% | 1.1 A | 1.5A | Shielded | 120mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.059" (1.50mm) |
|
|
F1A2-383818-5R6NFIXED IND 5.6UH 1.00A 170 MOHM Signal Transformer |
0 |
|
规格书 |
F1A2-3838 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 5.6 µH | ±30% | 1 A | 1.6A | Shielded | 170mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|
|
F1A2-383812-270MFIXED IND 27.0UH 420MA 820 MOHM Signal Transformer |
0 |
|
规格书 |
F1A2-3838 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 27 µH | ±20% | 420 mA | 380mA | Shielded | 820mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.047" (1.20mm) |
|

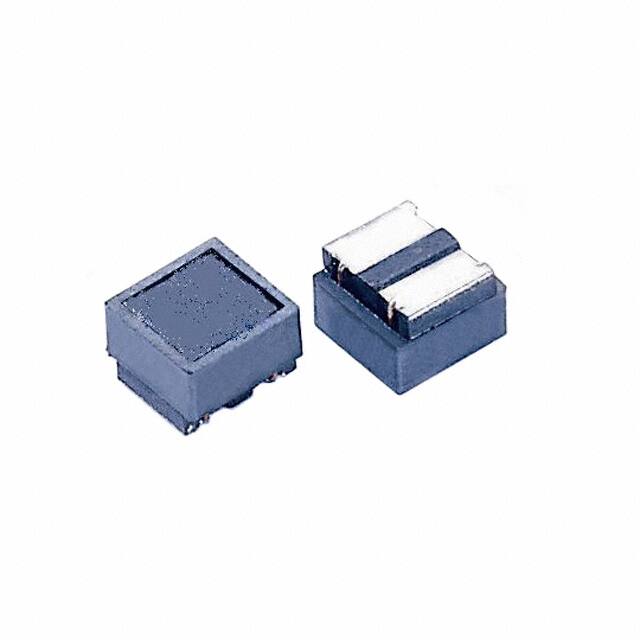

SC1212-102FIXED IND 1MH 145MA 12 OHM SMD Signal Transformer |
0 |
|
规格书 |
SC1212 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 1 mH | ±30% | 145 mA | 30mA | Shielded | 12Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.138" L x 0.138" W (3.50mm x 3.50mm) | 0.091" (2.30mm) |
|
|
SC1212-222FIXED IND 2.2MH 110MA 23.5OHM SM Signal Transformer |
0 |
|
规格书 |
SC1212 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 2.2 mH | ±30% | 110 mA | 20mA | Shielded | 23.5Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.138" L x 0.138" W (3.50mm x 3.50mm) | 0.091" (2.30mm) |
|
|
SC1212-681FIXED IND 680UH 175MA 9 OHM SMD Signal Transformer |
0 |
|
规格书 |
SC1212 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 680 µH | ±30% | 175 mA | 37mA | Shielded | 9Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.138" L x 0.138" W (3.50mm x 3.50mm) | 0.091" (2.30mm) |
|

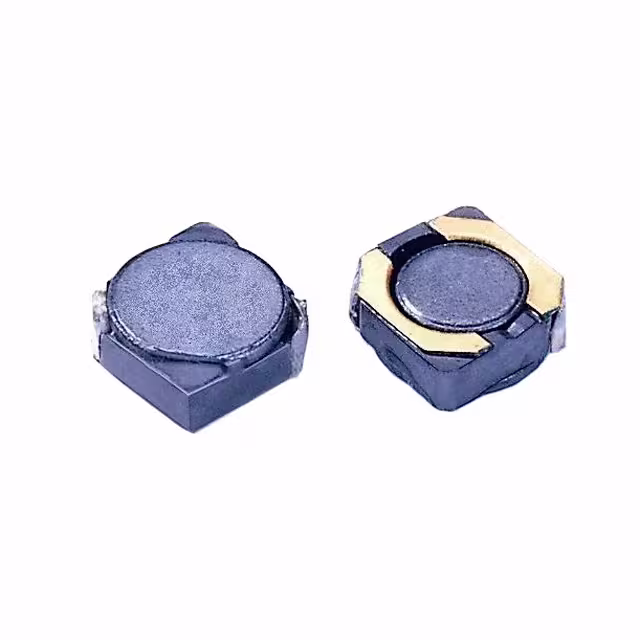

SCRH4D18-2R2FIXED IND 2.2UH 2.7A 58 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCRH4D18 | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±30% | 2.7 A | 1.32A | Shielded | 58mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
|
SCRH4D18-5R6FIXED IND 5.6UH 1.35A 145MOHM SM Signal Transformer |
0 |
|
规格书 |
SCRH4D18 | Nonstandard | Tape & Reel (TR) | Active | - | - | 5.6 µH | ±30% | 1.35 A | 800mA | Shielded | 145mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|

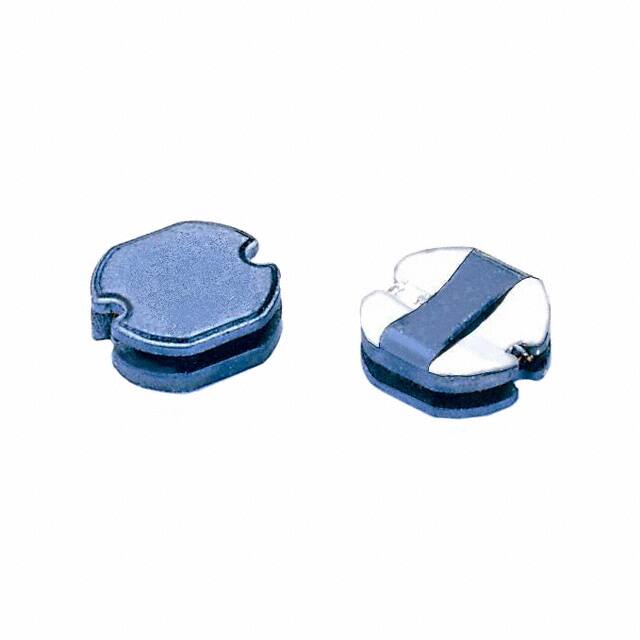

SC104-100FIXED IND 10UH 3.5A 53 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC104 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 3.5 A | 2.38A | Unshielded | 53mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.406" L x 0.366" W (10.30mm x 9.30mm) | 0.169" (4.30mm) |
