固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR7032-102MFIXED IND 1MH 150MA 5.4 OHM SMD |
54,500 |
|
规格书 |
SRR7032 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 150 mA | 140mA | Shielded | 5.4Ohm Max | 120 @ 252kHz | 3.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
|
SRR7045-470MFIXED IND 47UH 950MA 150MOHM SMD |
44,640 |
|
规格书 |
SRR7045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.4 A | 900mA | Shielded | 150mOhm Max | 29 @ 2.52MHz | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
SRR5028-330YFIXED IND 33UH 900MA 190MOHM SMD |
42,484 |
|
规格书 |
SRR5028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 900 mA | 780mA | Shielded | 190mOhm Max | 11 @ 2.52MHz | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.118" (3.00mm) |
|
|
SRR5028-100YFIXED IND 10UH 1.5A 70 MOHM SMD |
36,144 |
|
规格书 |
SRR5028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 1.5 A | 1.4A | Shielded | 70mOhm Max | 9 @ 2.52MHz | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.118" (3.00mm) |
|
SRR6038-180YFIXED IND 18UH 1.5A 92 MOHM SMD |
26,375 |
|
规格书 |
SRR6038 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±30% | 1.5 A | 1.7A | Shielded | 92mOhm Max | 8 @ 2.52MHz | 13.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.157" (4.00mm) |
|
|
SRR7045-471MFIXED IND 470UH 320MA 1.1OHM SMD |
25,434 |
|
规格书 |
SRR7045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 500 mA | 230mA | Shielded | 1.1Ohm Max | 80 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|

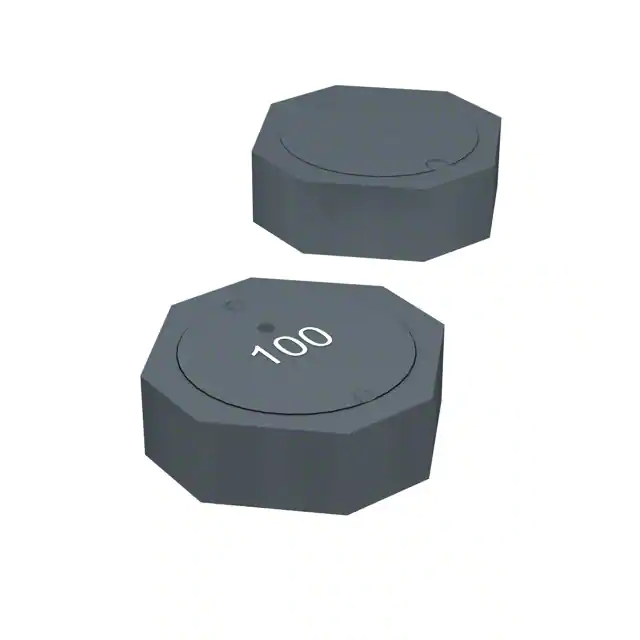

SRU5016-100YFIXED IND 10UH 1A 84 MOHM SMD |
24,508 |
|
规格书 |
SRU5016 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 1 A | 900mA | Shielded | 84mOhm | 15 @ 2.52MHz | 40MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.071" (1.80mm) |
|
|
SRR6038-470YFIXED IND 47UH 950MA 155MOHM SMD |
23,402 |
|
规格书 |
SRR6038 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 950 mA | 1A | Shielded | 155mOhm Max | 8.5 @ 2.52MHz | 10.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.157" (4.00mm) |
|
SLF7045T-470MR90-HFIXED IND 47UH 900MA 216MOHM SMD |
20,634 |
|
规格书 |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 900 mA | 900mA | Shielded | 216mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
SRR6038-3R3YFIXED IND 3.3UH 3.5A 20 MOHM SMD |
19,695 |
|
规格书 |
SRR6038 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 3.5 A | 3.6A | Shielded | 20mOhm Max | 9.8 @ 7.96MHz | 75.9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.157" (4.00mm) |
|
|
SRR7045-681MFIXED IND 680UH 270MA 1.6OHM SMD |
18,233 |
|
规格书 |
SRR7045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 400 mA | 200mA | Shielded | 1.6Ohm Max | 65 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
SRR6038-560YFIXED IND 56UH 850MA 202MOHM SMD |
18,217 |
|
规格书 |
SRR6038 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±30% | 850 mA | 900mA | Shielded | 202mOhm Max | 8.2 @ 2.52MHz | 8.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.157" (4.00mm) |
|
|
SRR7045-100MFIXED IND 10UH 2A 42 MOHM SMD |
18,194 |
|
规格书 |
SRR7045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.7 A | 1.9A | Shielded | 42mOhm Max | 30 @ 2.52MHz | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
SRR6038-680YFIXED IND 68UH 750MA 234MOHM SMD |
15,902 |
|
规格书 |
SRR6038 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±30% | 750 mA | 870mA | Shielded | 234mOhm Max | 7.4 @ 2.52MHz | 7.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.157" (4.00mm) |
|
|
SRR7045-680MFIXED IND 68UH 770MA 210MOHM SMD |
15,894 |
|
规格书 |
SRR7045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.2 A | 750mA | Shielded | 210mOhm Max | 22 @ 2.52MHz | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
SRR7045-331MFIXED IND 330UH 400MA 730MOHM SM |
14,969 |
|
规格书 |
SRR7045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 600 mA | 270mA | Shielded | 730mOhm Max | 65 @ 796kHz | 4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
1235AS-H-100M=P3FIXED IND 10UH 1.7A 132 MOHM SMD |
14,159 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.7 A | 1.3A | Shielded | 132mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.071" (1.80mm) |
|
|
SRR6038-390YFIXED IND 39UH 1A 138 MOHM SMD |
12,073 |
|
规格书 |
SRR6038 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±30% | 1 A | 1.1A | Shielded | 138mOhm Max | 8.3 @ 2.52MHz | 11.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.157" (4.00mm) |
|
|
SRR7045-330MFIXED IND 33UH 1.15A 115MOHM SMD |
11,823 |
|
规格书 |
SRR7045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.6 A | 1A | Shielded | 115mOhm Max | 25 @ 2.52MHz | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
SRR6038-150YFIXED IND 15UH 1.6A 57 MOHM SMD |
10,766 |
|
规格书 |
SRR6038 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 1.6 A | 1.9A | Shielded | 57mOhm Max | 8.6 @ 2.52MHz | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.157" (4.00mm) |
