固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TFM201610ALMAR24MTAAFIXED IND 240NH 5A 23 MOHM SMD |
1,642 |
|
规格书 |
TFM-ALMA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 240 nH | ±20% | 5 A | 5.9A | Shielded | 23mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | Soft Termination | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
7440329100FIXED IND 10UH 450MA 390MOHM SMD |
1,276 |
|
规格书 |
WE-LQ | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 450 mA | 600mA | Unshielded | 390mOhm Max | - | 26MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
TYS8040470M-10FIXED IND 47UH 1.55A 136MOHM SMD |
25,285 |
|
规格书 |
TYS8040 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±20% | 1.55 A | 1.75A | Shielded | 176.8mOhm Max | - | 6.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|

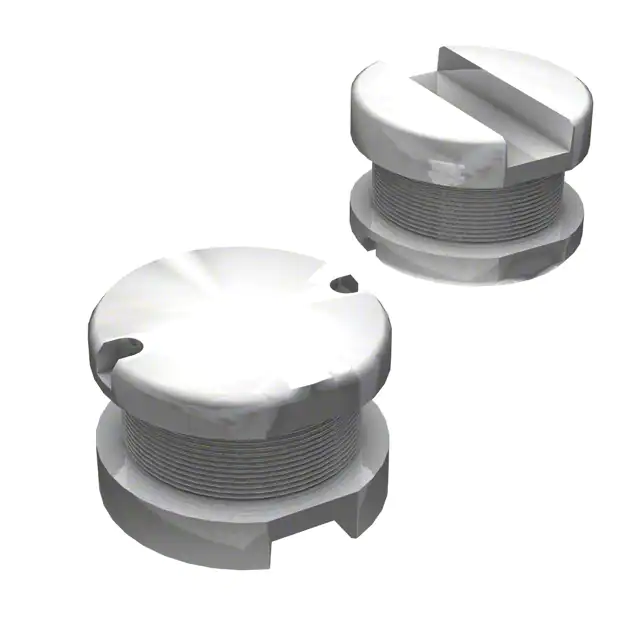

SDR0805-222KLFIXED IND 2.2MH 130MA 10 OHM SMD |
20,373 |
|
规格书 |
SDR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 130 mA | 200mA | Unshielded | 10Ohm Max | 29 @ 252kHz | 2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
|
B82432T1332K000FIXED IND 3.3UH 900MA 190MOHM SM |
19,243 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 900 mA | - | Unshielded | 190mOhm Max | 10 @ 7.96MHz | 50MHz | AEC-Q200 | -55°C ~ 150°C | 7.96 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
AIAP-02-220KFIXED IND 22UH 2.7A 50 MOHM TH |
17,337 |
|
规格书 |
AIAP-02 | Axial | Bulk | Active | Wirewound | - | 22 µH | ±10% | 2.7 A | - | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.252" Dia x 0.551" L (6.40mm x 14.00mm) | - |
|
B82498F3471G000FIXED IND 470NH 190MA 1.9OHM SMD |
15,953 |
|
规格书 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 470 nH | ±2% | 190 mA | - | Unshielded | 1.9Ohm Max | 30 @ 100MHz | 650MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
|
SDR0805-330KLFIXED IND 33UH 1.2A 140 MOHM SMD |
15,301 |
|
规格书 |
SDR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 1.2 A | 1.9A | Unshielded | 140mOhm Max | 15 @ 2.52MHz | 10MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
|
|
SDR0805-221KLFIXED IND 220UH 490MA 960MOHM SM |
15,213 |
|
规格书 |
SDR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 490 mA | 800mA | Unshielded | 960mOhm Max | 12 @ 796kHz | 5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" Dia (7.80mm) | 0.209" (5.30mm) |
|
AMDLA3020S-2R2MTFIXED IND 2.2UH 3.3A 69MOHM SMD |
12,384 |
|
规格书 |
AMDLA3020S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 3.3 A | 4.8A | Shielded | 69mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.134" L x 0.118" W (3.40mm x 3.00mm) | 0.079" (2.00mm) |
|
|
AMDLA3020S-1R0MTFIXED IND 1UH 5A 30 MOHM SMD |
8,865 |
|
规格书 |
AMDLA3020S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 5 A | 8A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.134" L x 0.118" W (3.40mm x 3.00mm) | 0.079" (2.00mm) |
|
|
TYS8040101M-10FIXED IND 100UH 1A 290 MOHM SMD |
8,087 |
|
规格书 |
TYS8040 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 1 A | 1.15A | Shielded | 290mOhm Max | - | 4.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
SDR0805-220MLFIXED IND 22UH 1.5A 110 MOHM SMD |
8,035 |
|
规格书 |
SDR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.5 A | 2.3A | Unshielded | 110mOhm Max | 20 @ 2.52MHz | 13MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
|
CDRH4D18CNP-100PCFIXED IND 10UH 830MA 156MOHM SMD |
7,303 |
|
规格书 |
CDRH4D18C | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±25% | 830 mA | - | Shielded | 156mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.079" (2.00mm) |
|
|
SDR0805-4R7MLFIXED IND 4.7UH 3.7A 30 MOHM SMD |
6,747 |
|
规格书 |
SDR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 3.7 A | 5A | Unshielded | 30mOhm Max | 31 @ 7.96MHz | 38MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
.jpg)
|
TFM201610ALVA2R2MTAAINDUCTORS FOR POWER CIRCUITS, AU |
6,542 |
|
规格书 |
TFM-ALVA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 2.2 µH | ±20% | 2.1 A | 2A | Shielded | 152mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
82224CFIXED IND 220UH 100MA 8 OHM SMD |
5,013 |
|
规格书 |
8200 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±10% | 100 mA | - | Unshielded | 8Ohm Max | 40 @ 800kHz | 10MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.091" (2.30mm) |
|
|
SDR0805-681KLFIXED IND 680UH 280MA 2.8OHM SMD |
4,601 |
|
规格书 |
SDR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 280 mA | 420mA | Unshielded | 2.8Ohm Max | 29 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
|
|
SDR0805-101KLFIXED IND 100UH 720MA 450MOHM SM |
3,521 |
|
规格书 |
SDR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 720 mA | 1.1A | Unshielded | 450mOhm Max | 12 @ 796kHz | 7MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
|
|
SDR0805-100MLFIXED IND 10UH 2.3A 70 MOHM SMD |
3,189 |
|
规格书 |
SDR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.3 A | 3.2A | Unshielded | 70mOhm Max | 25 @ 2.52MHz | 22MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
