固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMS252012ALM-4R7MTAAFIXED IND 4.7UH 1.6A 200MOHM SMD |
5,930 |
|
规格书 |
TMS-ALM | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 4.7 µH | ±20% | 1.6 A | 1.9A | Shielded | 200mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
SDR0503-472JLFIXED IND 4.7MH 40MA 48 OHM SMD |
4,556 |
|
规格书 |
SDR0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±5% | 40 mA | 50mA | Unshielded | 48Ohm Max | 40 @ 252kHz | 1MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.197" L x 0.189" W (5.00mm x 4.80mm) | 0.130" (3.30mm) |
|
24470CFIXED IND 47UH 720MA 370MOHM SMD |
1,566 |
|
规格书 |
2400 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | - | 720 mA | - | Unshielded | 370mOhm Max | - | 10.9MHz | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.177" (4.50mm) |
|
VLCF4020T-6R8N1R0FIXED IND 6.8UH 1.05A 131MOHM SM |
1,122 |
|
规格书 |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 1.05 A | 1.05A | Shielded | 131mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
CDRH5D28RNP-100NCFIXED IND 10UH 1.3A 54 MOHM SMD |
55,058 |
|
规格书 |
CDRH5D28R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 1.3 A | - | Shielded | 54mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.232" W (6.00mm x 5.90mm) | 0.118" (3.00mm) |
|
NR10050T220MFIXED IND 22UH 2.5A 58.5MOHM SMD |
52,900 |
|
规格书 |
NR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.5 A | 2.6A | Unshielded | 58.5mOhm Max | - | 10MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
|
B82141A1223K000FIXED IND 22UH 335MA 900 MOHM TH |
17,164 |
|
规格书 |
SBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 335 mA | - | Unshielded | 900mOhm Max | 55 @ 2.52MHz | 12MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.118" Dia x 0.268" L (3.00mm x 6.80mm) | - |
|

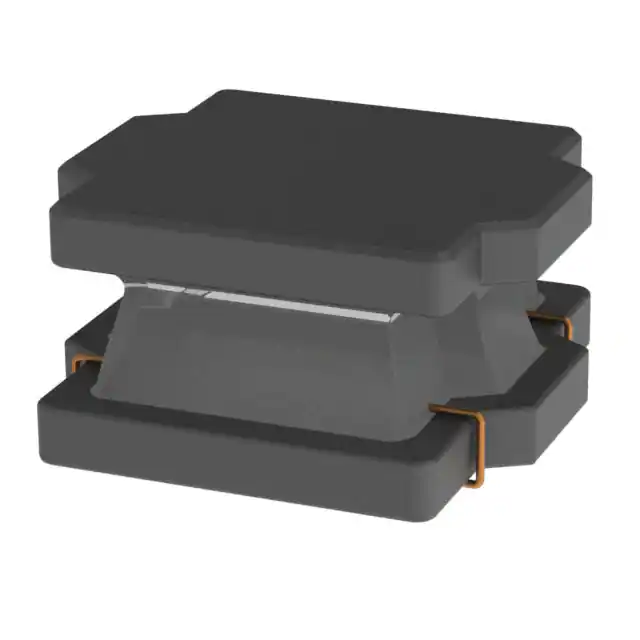

PA4337.105NLTFIXED IND 1MH 300MA 4.5 OHM SMD |
12,896 |
|
规格书 |
PA4337.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 1 mH | ±20% | 300 mA | 300mA | Shielded | 4.5Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
13R225CFIXED IND 2.2MH 240MA 4.5 OHM TH |
12,423 |
|
规格书 |
1300R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 2.2 mH | ±10% | 240 mA | - | Unshielded | 4.5Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.531" (13.50mm) |
|
LQM32PN1R0MG0LFIXED IND 1UH 1.8A 60 MOHM SMD |
12,268 |
|
规格书 |
LQM32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 1.8 A | - | Shielded | 60mOhm Max | - | 40MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.039" (1.00mm) |
|
ASPI-8040S-221M-TFIXED IND 220UH 800MA 599MOHM SM |
7,350 |
|
规格书 |
ASPI-8040S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 800 mA | 850mA | Shielded | 599mOhm | - | 3.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
ASPI-8040S-330M-TFIXED IND 33UH 1.8A 97 MOHM SMD |
6,417 |
|
规格书 |
ASPI-8040S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.8 A | 2.05A | Shielded | 97mOhm | - | 7.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
SDR0503-152JLFIXED IND 1.5MH 59MA 13 OHM SMD |
3,739 |
|
规格书 |
SDR0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±5% | 59 mA | 72mA | Unshielded | 13Ohm Max | 40 @ 252kHz | 2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.197" L x 0.189" W (5.00mm x 4.80mm) | 0.130" (3.30mm) |
|
|
ASPI-8040S-100M-TFIXED IND 10UH 3.3A 29 MOHM SMD |
3,699 |
|
规格书 |
ASPI-8040S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.3 A | 3.6A | Shielded | 29mOhm | - | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
13R104CFIXED IND 100UH 1A 240 MOHM TH |
3,141 |
|
规格书 |
1300R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 100 µH | ±10% | 1 A | - | Unshielded | 240mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.531" (13.50mm) |
|
|
13R106CFIXED IND 10MH 85MA 23.8 OHM TH |
2,932 |
|
规格书 |
1300R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 10 mH | ±10% | 85 mA | - | Unshielded | 23.8Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.531" (13.50mm) |
|
22R105CFIXED IND 1MH 170MA 3.63 OHM TH |
2,285 |
|
规格书 |
2200R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 1 mH | ±10% | 170 mA | - | Unshielded | 3.63Ohm Max | 120 @ 100kHz | 2.1MHz | - | -25°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.413" (10.50mm) |
|
|
ASPI-8040S-270M-TFIXED IND 27UH 2A 78 MOHM SMD |
2,192 |
|
规格书 |
ASPI-8040S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 2 A | 2.15A | Shielded | 78mOhm | - | 9.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
22R224CFIXED IND 220UH 430MA 830MOHM TH |
2,072 |
|
规格书 |
2200R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 220 µH | ±10% | 430 mA | - | Unshielded | 830mOhm Max | 100 @ 100kHz | 4.4MHz | - | -25°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.413" (10.50mm) |
|
|
22R223CFIXED IND 22UH 1.08A 90 MOHM TH |
1,836 |
|
规格书 |
2200R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 22 µH | ±10% | 1.08 A | - | Unshielded | 90mOhm Max | 50 @ 500kHz | 17MHz | - | -25°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.413" (10.50mm) |
