固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQH43PN221M26LFIXED IND 220UH 240MA 3.48OHM SM |
3,743 |
|
规格书 |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 240 mA | 220mA | Shielded | 3.48Ohm Max | - | 2MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
LQW15CAR50J00DFIXED IND 500NH 270MA 0.97OHM SM |
3,613 |
|
规格书 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 500 nH | ±5% | 270 mA | - | Unshielded | 970mOhm Max | - | 900MHz | - | -40°C ~ 125°C | 10 MHz | - | Surface Mount | - | 0.040" L x 0.022" W (1.02mm x 0.55mm) | 0.026" (0.66mm) |
-Height-1.00mm.jpg)
|
DFE201612PD-R15M=P2FIXED IND 150NH 5.2A 18MOHM SMD |
3,553 |
|
规格书 |
DFE201612P | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 150 nH | ±20% | 5.2 A | 6.2A | Shielded | 18mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
WPN4020H3R3MTFIXED IND 3.3UH 3.45A 72MOHM SMD |
3,361 |
|
规格书 |
WPN | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 3.45 A | 5.9A | Shielded | 72mOhm Max | - | 19MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
LQH44PH680MPRLFIXED IND 68UH 500MA 1.2 OHM SMD |
3,221 |
|
规格书 |
LQH32 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 500 mA | 580mA | Shielded | 1.2Ohm Max | - | 8MHz | AEC-Q200 | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
LQH44PH2R2MPRLFIXED IND 2.2UH 2.4A 50.4MOHM SM |
3,057 |
|
规格书 |
LQH32 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.4 A | 3.3A | Shielded | 50.4mOhm Max | - | 55MHz | AEC-Q200 | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
LQH44PH220MPRLFIXED IND 22UH 900MA 348MOHM SMD |
2,951 |
|
规格书 |
LQH32 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 900 mA | 1.05A | Shielded | 348mOhm Max | - | 17MHz | AEC-Q200 | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|

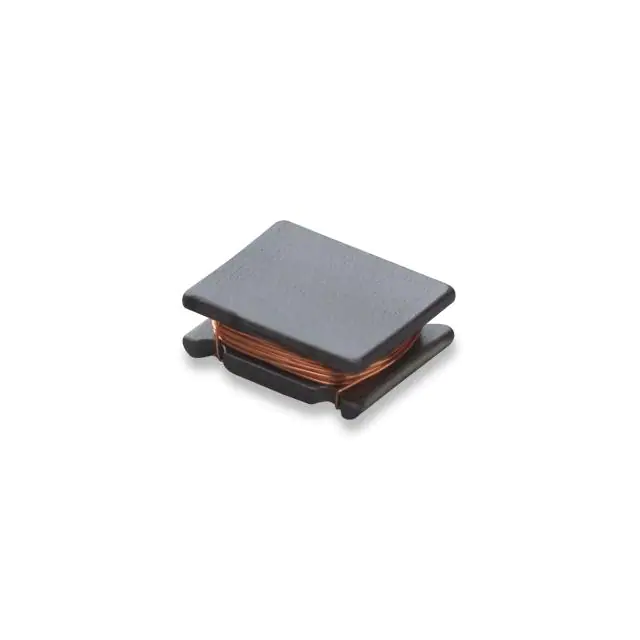

LQH2HNH220J03LFIXED IND 22UH 95MA POWRTRN |
2,940 |
|
规格书 |
LQH2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±5% | 95 mA | - | Shielded | 2.75Ohm | - | 21MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
LQH44PH1R0MPRLFIXED IND 1UH 3.2A 30 MOHM SMD |
2,910 |
|
规格书 |
LQH32 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 3.2 A | 4.3A | Shielded | 30mOhm Max | - | 85MHz | AEC-Q200 | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
DFE201612PD-R24M=P2FIXED IND 240NH 4A 22 MOHM SMD |
2,719 |
|
规格书 |
DFE201612P | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 240 nH | ±20% | 4 A | 5A | Shielded | 22mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
46683CFIXED IND 68UH 1.05A 360MOHM SMD |
2,622 |
|
规格书 |
4600 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 1.05 A | - | Shielded | 360mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.179" (4.55mm) |
|
LQW03AW5N1J00DFIXED IND 5.1NH 480MA 140MOHM SM |
2,290 |
|
规格书 |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 5.1 nH | ±5% | 480 mA | - | Unshielded | 140mOhm Max | 45 @ 900MHz | 9.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.018" (0.45mm) |
|
SWPA5040S100MTFIXED IND 10UH 2.1A 83 MOHM SMD |
2,287 |
|
规格书 |
SWPA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.1 A | 2.9A | Shielded | 83mOhm Max | - | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
RLB1014-563KLFIXED IND 56MH 52MA 200 OHM TH |
2,268 |
|
规格书 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 56 mH | ±10% | 52 mA | 60mA | Unshielded | 200Ohm Max | 35 @ 79.6kHz | 150kHz | - | -40°C ~ 125°C | 79.6 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.512" (13.00mm) |
|
|
LQH44PH150MPRLFIXED IND 15UH 1.1A 240 MOHM SMD |
2,031 |
|
规格书 |
LQH32 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.1 A | 1.3A | Shielded | 240mOhm Max | - | 18MHz | AEC-Q200 | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
SRN3015BTA-100MFIXED IND 10UH 1.5A 0.264OHM SMD |
1,949 |
|
规格书 |
SRN3015BTA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.5 A | 1A | Shielded | 264mOhm Max | 10 @ 1MHz | 45MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
DFE201612PD-R47M=P2FIXED IND 470NH 3.2A 32MOHM SMD |
1,709 |
|
规格书 |
DFE201612P | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 3.2 A | 3.8A | Shielded | 32mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
LQH43PN101M26LFIXED IND 100UH 320MA 1.85OHM SM |
1,707 |
|
规格书 |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 320 mA | 320mA | Shielded | 1.85Ohm Max | - | 4MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
DFE252012PD-R68M=P2FIXED IND 680NH 3.5A 0.037OHM SM |
1,640 |
|
规格书 |
DFE252012PD | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 680 nH | ±20% | 3.5 A | 4.3A | Shielded | 37mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | Flat Wire | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
46104CFIXED IND 100UH 860MA 500MOHM SM |
1,241 |
|
规格书 |
4600 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 860 mA | - | Shielded | 500mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.179" (4.55mm) |
