固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPI-6045S-331M-TFIXED IND 330UH 570MA 1.27OHM SM |
8,084 |
|
规格书 |
ASPI-6045S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 570 mA | 570mA | Shielded | 1.27Ohm | - | 2.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
ASPI-6045S-180M-TFIXED IND 18UH 1.85A 81 MOHM SMD |
6,913 |
|
规格书 |
ASPI-6045S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 1.85 A | 2.2A | Shielded | 81mOhm | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
TYS50404R7N-10FIXED IND 4.7UH 3A 30 MOHM SMD |
6,817 |
|
规格书 |
TYS5040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±30% | 3 A | 3.5A | Shielded | 30mOhm Max | - | 28MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.165" (4.20mm) |
|
BMRA000606301R0MA1FIXED IND 1UH 12A 10 MOHM SMD |
6,645 |
|
规格书 |
BMRA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 12 A | 22A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
TYS5040101M-10FIXED IND 100UH 700MA 560MOHM SM |
5,822 |
|
规格书 |
TYS5040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 700 mA | 750mA | Shielded | 560mOhm Max | - | 4.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.165" (4.20mm) |
|
|
ASPI-6045S-100M-TFIXED IND 10UH 2.45A 48 MOHM SMD |
5,686 |
|
规格书 |
ASPI-6045S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.45 A | 3.2A | Shielded | 48mOhm | - | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
BMRB00060630100MA1FIXED IND 10UH 4A 68 MOHM SMD |
5,457 |
|
规格书 |
BMRB | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 4 A | 5.5A | Shielded | 68mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
ASPI-6045S-101M-TFIXED IND 100UH 800MA 433MOHM SM |
5,446 |
|
规格书 |
ASPI-6045S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 800 mA | 950mA | Shielded | 433mOhm | - | 4.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
36501JR22JTDGFIXED IND 220NH 250MA 1.6OHM SMD |
5,016 |
|
规格书 |
3650, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 220 nH | ±5% | 250 mA | - | Unshielded | 1.6Ohm Max | 25 @ 250MHz | 1.2GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
ASPI-6045S-5R6M-TFIXED IND 5.6UH 3.15A 29MOHM SMD |
4,867 |
|
规格书 |
ASPI-6045S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 3.15 A | 4.15A | Shielded | 29mOhm | - | 23MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
SRN4018TA-6R8MFIXED IND 6.8UH 1.7A 98 MOHM SMD |
4,424 |
|
规格书 |
SRN4018TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.7 A | 1.7A | Shielded | 98mOhm | 10 @ 100kHz | 40MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
BMRA000606304R7MA1FIXED IND 4.7UH 5.5A 40 MOHM SMD |
4,237 |
|
规格书 |
BMRA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 5.5 A | 9A | Shielded | 40mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|

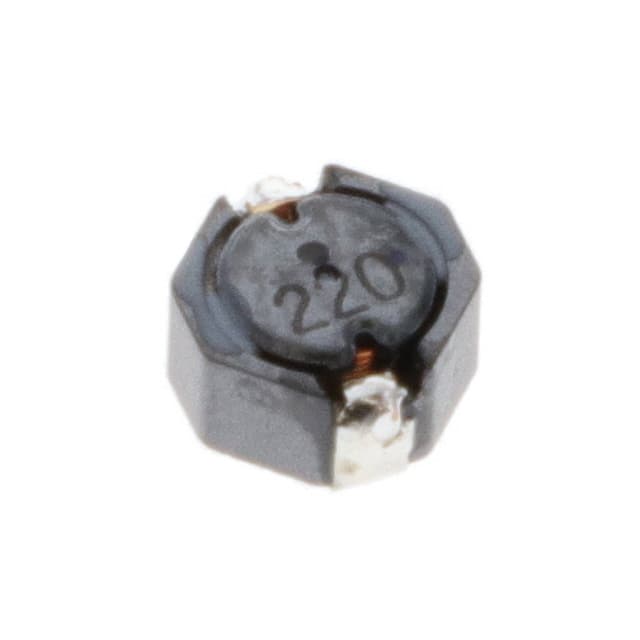

#A915AY-220M=P3FIXED IND 22UH 810MA 0.208OHM SM |
4,181 |
|
规格书 |
D53LC | 2020 (5050 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 810 mA | 860mA | Shielded | 208mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.118" (3.00mm) |
|
VLS6045EX-2R2N-HFIXED IND 2.2UH 5.1A 24.7MOHM SM |
3,545 |
|
规格书 |
VLS-EX-H | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 5.1 A | 7.5A | Shielded | 24.7mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.177" (4.50mm) |
|
|
ASPI-6045S-6R8M-TFIXED IND 6.8UH 3A 31 MOHM SMD |
2,547 |
|
规格书 |
ASPI-6045S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 3 A | 3.9A | Shielded | 31mOhm | - | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|

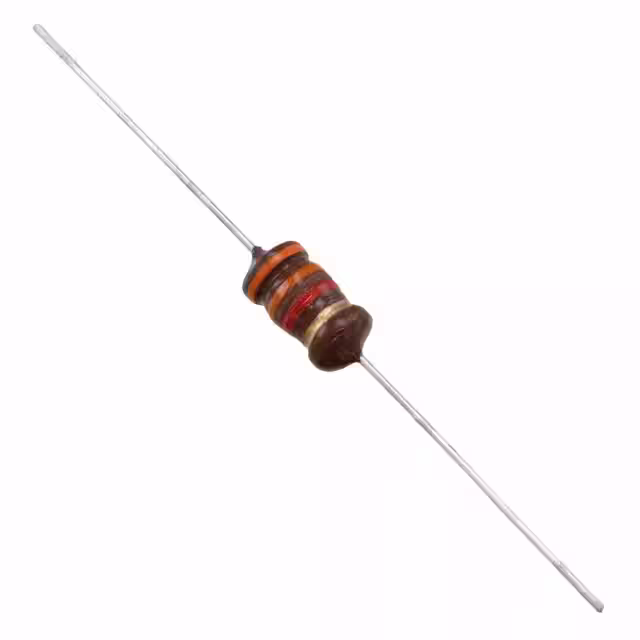

B82145A1335J000FIXED IND 3.3MH 200MA 12.5OHM TH |
2,409 |
|
规格书 |
HLBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±5% | 200 mA | - | Unshielded | 12.5Ohm Max | 60 @ 252kHz | 600kHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.472" L (6.50mm x 12.00mm) | - |
|
|
ASPI-6045S-300M-TFIXED IND 30UH 1.5A 132 MOHM SMD |
2,293 |
|
规格书 |
ASPI-6045S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 30 µH | ±20% | 1.5 A | 1.7A | Shielded | 132mOhm | - | 7.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
VLS6045EX-330M-HFIXED IND 33UH SMD |
2,204 |
|
规格书 |
VLS-EX-H | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | - | - | Shielded | - | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.177" (4.50mm) |
|
SRN5020TA-8R2MFIXED IND 8.2UH 1.75A 98MOHM SMD |
1,867 |
|
规格书 |
SRN5020TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 1.75 A | 1.9A | Shielded | 98mOhm | 15 @ 100kHz | 43MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
SRN4018TA-3R3MFIXED IND 3.3UH 2A 55 MOHM SMD |
1,749 |
|
规格书 |
SRN4018TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2 A | 2.3A | Shielded | 55mOhm | 10 @ 100kHz | 72MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
