上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AIAP-01-390K-TFIXED IND 39UH 880MA 260 MOHM TH Abracon LLC |
9,971 |
|
规格书 |
AIAP-01 | Axial | Tape & Reel (TR) | Active | Wirewound | - | 39 µH | ±10% | 880 mA | - | Unshielded | 260mOhm Max | - | 7.1MHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.130" Dia x 0.360" L (3.30mm x 9.14mm) | - |
|
|
AIAP-01-392K-TFIXED IND 3.9MH 77MA 34 OHM TH Abracon LLC |
9,727 |
|
规格书 |
AIAP-01 | Axial | Tape & Reel (TR) | Active | Wirewound | - | 3.9 mH | ±10% | 77 mA | - | Unshielded | 34Ohm Max | - | 480kHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.130" Dia x 0.360" L (3.30mm x 9.14mm) | - |
|

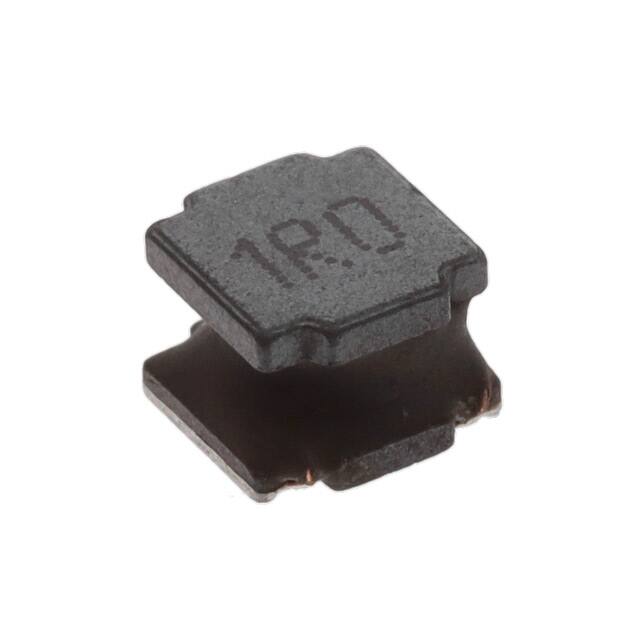

ASPI-6045T-1R0N-TIND 1UH 5.14A 14M Abracon LLC |
5,769 |
|
规格书 |
ASPI-6045T | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±30% | 5.14 A | 9.85A | Shielded | 14mOhm Max | - | 100MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
AISC-0603F-R39J-TFIXED IND 390NH 490MA 330MOHM SM Abracon LLC |
4,250 |
|
规格书 |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 nH | ±5% | 490 mA | - | Unshielded | 330mOhm Max | - | 750MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.047" (1.20mm) |
|
AOTA-B141206SR47MTIND 0.47UH 2.9A 41MOHM Abracon LLC |
2,805 |
|
规格书 |
AOTA-B141206S | 0505 (1412 Metric) | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 2.9 A | 3A | Shielded | 41mOhm Max | - | 115MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0505 | 0.055" L x 0.047" W (1.40mm x 1.20mm) | 0.026" (0.65mm) |
|
|
AOTA-B141206SR33MTIND 0.33UH 3.5A 32MOHM Abracon LLC |
2,580 |
|
规格书 |
AOTA-B141206S | 0505 (1412 Metric) | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 3.5 A | 5.4A | Shielded | 32mOhm Max | - | 120MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0505 | 0.055" L x 0.047" W (1.40mm x 1.20mm) | 0.026" (0.65mm) |
|

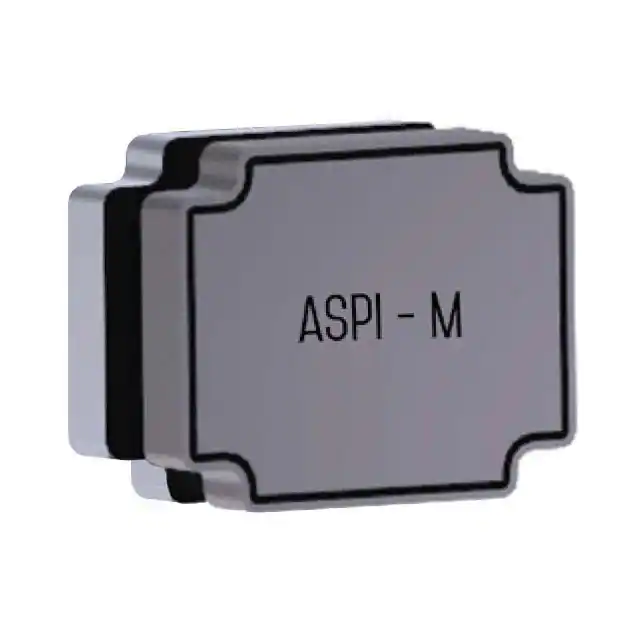

ASPI-M3015-2R2M-TFIXED IND 2.2UH SMD Abracon LLC |
2,000 |
|
规格书 |
ASPI-M | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | - | 2.2 µH | - | - | - | Unshielded | - | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
ASPI-M3015-4R7M-TFIXED IND 4.7UH SMD Abracon LLC |
1,995 |
|
规格书 |
ASPI-M | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | - | 4.7 µH | - | - | - | Unshielded | - | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
ASPI-M3015-100M-TFIXED IND 10UH SMD Abracon LLC |
1,983 |
|
规格书 |
ASPI-M | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | - | - | Unshielded | - | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
ASPI-M3015-1R0M-TFIXED IND 1UH SMD Abracon LLC |
1,900 |
|
规格书 |
ASPI-M | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | - | 1 µH | - | - | - | Unshielded | - | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
