上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AISC-0603F-220J-TFIXED IND 22UH 70MA 11.4 OHM SMD Abracon LLC |
2,679 |
|
规格书 |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±5% | 70 mA | - | Unshielded | 11.4Ohm Max | - | 20MHz | - | -40°C ~ 85°C | 2.5 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.047" (1.20mm) |
|

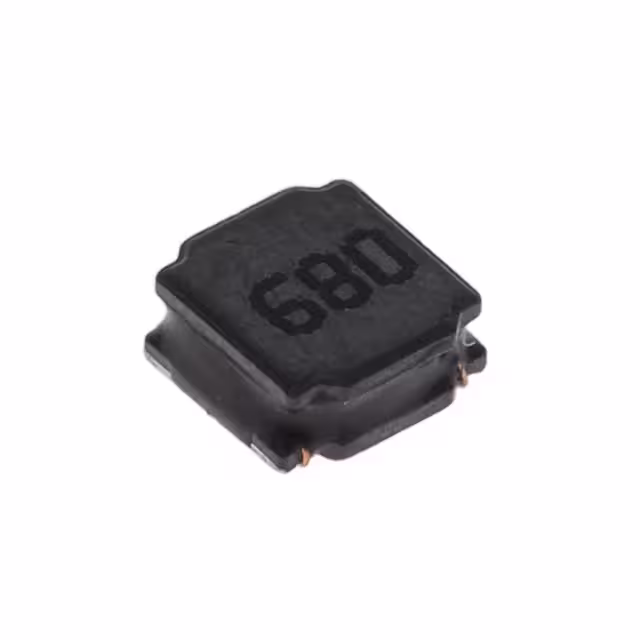

ASPI-0418FS-680M-T3FIXED IND 68UH 500MA 1.128OHM SM Abracon LLC |
2,258 |
|
规格书 |
ASPI-0418FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 400 mA | 530mA | Shielded | 972mOhm Max | - | 7.1MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
ASPI-0425-680M-T3FIXED IND 68UH 350MA 852MOHM SMD Abracon LLC |
2,254 |
|
规格书 |
ASPI-0425 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 68 µH | ±20% | 350 mA | 350mA | Shielded | 852mOhm Max | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.098" (2.50mm) |
|
ASPI-U252010-4R7M-TFIXED IND 4.7UH SMD Abracon LLC |
0 |
|
规格书 |
ASPI-U | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | - | - | - | Unshielded | - | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
AISC-0603F-2R2J-TFIXED IND 2.2UH 220MA 1.5OHM SMD Abracon LLC |
1,647 |
|
规格书 |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±5% | 220 mA | - | Unshielded | 1.5Ohm Max | - | 120MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.047" (1.20mm) |
|
ASPI-4020S-330M-TFIXED IND 33UH 490MA 550MOHM SMD Abracon LLC |
1,313 |
|
规格书 |
ASPI-4020S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 490 mA | 850mA | Shielded | 550mOhm | - | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
ASPI-0628-330M-T1FIXED IND 33UH 1.1A 220 MOHM SMD Abracon LLC |
1,925 |
|
规格书 |
ASPI-0628 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.1 A | 1.1A | Shielded | 220mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 0628 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
ASPI-0615FS-3R3N-T2FIXED IND 3.3UH 2.8A 30 MOHM SMD Abracon LLC |
1,371 |
|
规格书 |
ASPI-0615FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 2.8 A | 2.8A | Shielded | 30mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.087" (2.20mm) |
|
|
AISC-0603F-R10K-TFIXED IND 100NH 850MA 110MOHM SM Abracon LLC |
5,476 |
|
规格书 |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±10% | 850 mA | - | Unshielded | 110mOhm Max | - | 1.37GHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.047" (1.20mm) |
|

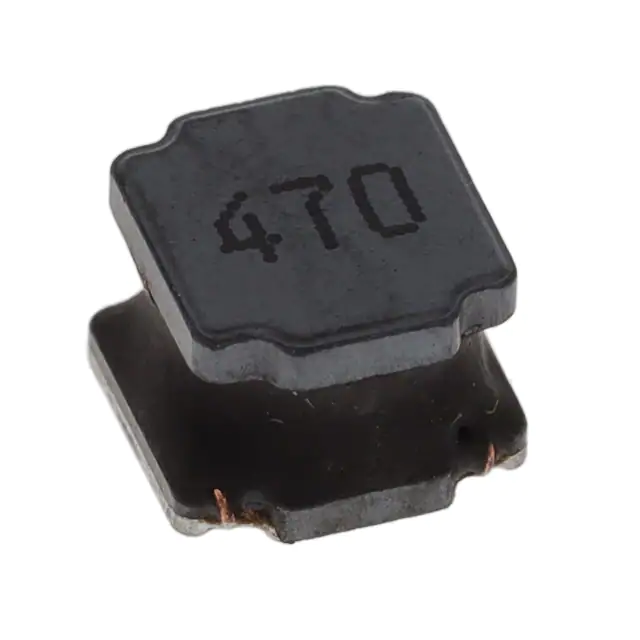

ASPI-6045T-470M-TIND 47UH 1.2A 260M Abracon LLC |
2,357 |
|
规格书 |
ASPI-6045T | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 1.2 A | 1.4A | Shielded | 260mOhm Max | - | 6.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
