上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

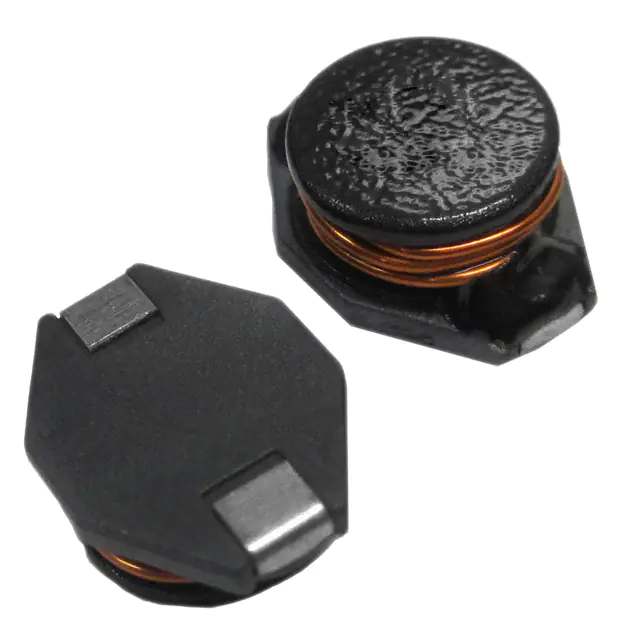

ASPI-1306T-750M-TFIXED IND 75UH 2.3A 152 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-1306T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 75 µH | ±20% | 2.3 A | 3A | Unshielded | 152mOhm Max | - | 8MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
|
ASPI-1306T-151M-TFIXED IND 150UH 1.5A 250MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-1306T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.5 A | 2.6A | Unshielded | 250mOhm Max | - | 6MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
|
ASPI-1306T-221M-TFIXED IND 220UH 1.2A 380MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-1306T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.2 A | 2.4A | Unshielded | 380mOhm Max | - | 5MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
|
ASPI-1306T-331M-TFIXED IND 330UH 1A 560 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-1306T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 1 A | 1.9A | Unshielded | 560mOhm Max | - | 4MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
|
ASPI-1306T-471M-TFIXED IND 470UH 820MA 850MOHM SM Abracon LLC |
0 |
|
规格书 |
ASPI-1306T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 820 mA | 1.4A | Unshielded | 850mOhm Max | - | 3MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
|
ASPI-1306T-681M-TFIXED IND 680UH 720MA 1.1OHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-1306T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 720 mA | 1.2A | Unshielded | 1.1Ohm Max | - | 2.5MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
|
ASPI-1306T-102M-TFIXED IND 1MH 560MA 1.8 OHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-1306T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 560 mA | 1A | Unshielded | 1.8Ohm Max | - | 2MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
ATCA-04-151M-HFIXED IND 150UH 5A 42 MOHM TH Abracon LLC |
0 |
|
规格书 |
ATCA | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 150 µH | ±20% | 5 A | - | Unshielded | 42mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.063" Dia (27.00mm) | 0.531" (13.50mm) |
|
|
ATCA-04-221M-HFIXED IND 220UH 4A 59 MOHM TH Abracon LLC |
0 |
|
规格书 |
ATCA | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 220 µH | ±20% | 4 A | - | Unshielded | 59mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.063" Dia (27.00mm) | 0.531" (13.50mm) |
|
ATCA-04-151M-VFIXED IND 150UH 5A 42 MOHM TH Abracon LLC |
0 |
|
规格书 |
ATCA | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 150 µH | ±20% | 5 A | - | Unshielded | 42mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.063" L x 0.531" W (27.00mm x 13.50mm) | - |
