固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

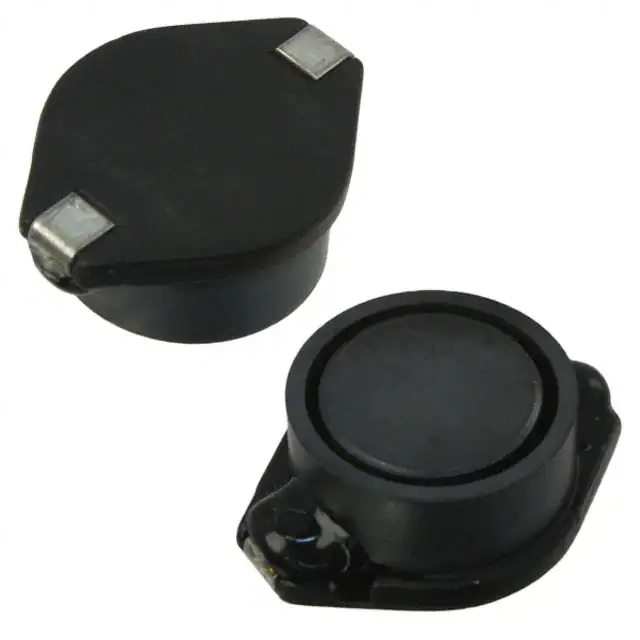

ASPI-1306S-680M-TFIXED IND 68UH 2A 138 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-1306S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2 A | 3A | Shielded | 138mOhm Max | - | 3MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.300" (7.62mm) |
|
|
ASPI-1306S-151M-TFIXED IND 150UH 1.3A 293MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-1306S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.3 A | 2.1A | Shielded | 293mOhm Max | - | 2.1MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.300" (7.62mm) |
|
|
ASPI-1306S-221M-TFIXED IND 220UH 1.1A 470MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-1306S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.1 A | 1.9A | Shielded | 470mOhm Max | - | 1.9MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.300" (7.62mm) |
|
AIRD-02-1R0KFIXED IND 1UH 11.4A 3 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIRD-02 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 11.4 A | 108A | Unshielded | 3mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.827" Dia (21.00mm) | 0.827" (21.00mm) |
|
|
AIRD-02-1R2KFIXED IND 1.2UH 11.4A 3 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIRD-02 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1.2 µH | ±10% | 11.4 A | 108A | Unshielded | 3mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.827" Dia (21.00mm) | 0.827" (21.00mm) |
|
|
AIRD-02-1R5KFIXED IND 1.5UH 11.4A 3 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIRD-02 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±10% | 11.4 A | 83A | Unshielded | 3mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.827" Dia (21.00mm) | 0.827" (21.00mm) |
|
|
AIRD-02-1R8KFIXED IND 1.8UH 11.4A 3 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIRD-02 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1.8 µH | ±10% | 11.4 A | 68A | Unshielded | 3mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.827" Dia (21.00mm) | 0.827" (21.00mm) |
|
|
AIRD-02-2R2KFIXED IND 2.2UH 11.4A 4 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIRD-02 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 11.4 A | 68A | Unshielded | 4mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.827" Dia (21.00mm) | 0.827" (21.00mm) |
|
|
AIRD-02-2R7KFIXED IND 2.7UH 11.4A 5 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIRD-02 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 2.7 µH | ±10% | 11.4 A | 58A | Unshielded | 5mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.827" Dia (21.00mm) | 0.827" (21.00mm) |
|
|
AIRD-02-3R3KFIXED IND 3.3UH 11.4A 5 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIRD-02 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 11.4 A | 58A | Unshielded | 5mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.827" Dia (21.00mm) | 0.827" (21.00mm) |
