固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPIAIG-FLR4020-R56M-TIND 0.56UH 11.3A 7.8MOHM Abracon LLC |
0 |
|
规格书 |
ASPIAIG-FLR4020 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 560 nH | ±20% | 12.6 A | 11.3A | Shielded | 7.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.173" W (4.40mm x 4.40mm) | 0.083" (2.10mm) |
|
AMSLA-1280-R23K-TIND 0.23UH 50A 0.31M Abracon LLC |
0 |
|
规格书 |
AMSLA-1280 | Nonstandard | Tape & Reel (TR) | Active | Molded | Manganese Zinc Ferrite (MnZn) | 230 nH | ±10% | 50 A | 50A | Shielded | 0.31mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.315" W (12.00mm x 8.00mm) | 0.276" (7.00mm) |
|
|
AMSLA-1280-R23M-TIND 0.23UH 50A 0.31M Abracon LLC |
0 |
|
规格书 |
AMSLA-1280 | Nonstandard | Tape & Reel (TR) | Active | Molded | Manganese Zinc Ferrite (MnZn) | 230 nH | ±20% | 50 A | 50A | Shielded | 0.31mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.315" W (12.00mm x 8.00mm) | 0.276" (7.00mm) |
|
|
AMSLA-1280-R22M-TIND 0.22UH 50A 0.31M Abracon LLC |
0 |
|
规格书 |
AMSLA-1280 | Nonstandard | Tape & Reel (TR) | Active | Molded | Manganese Zinc Ferrite (MnZn) | 220 nH | ±20% | 50 A | 54A | Shielded | 0.31mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.315" W (12.00mm x 8.00mm) | 0.276" (7.00mm) |
|

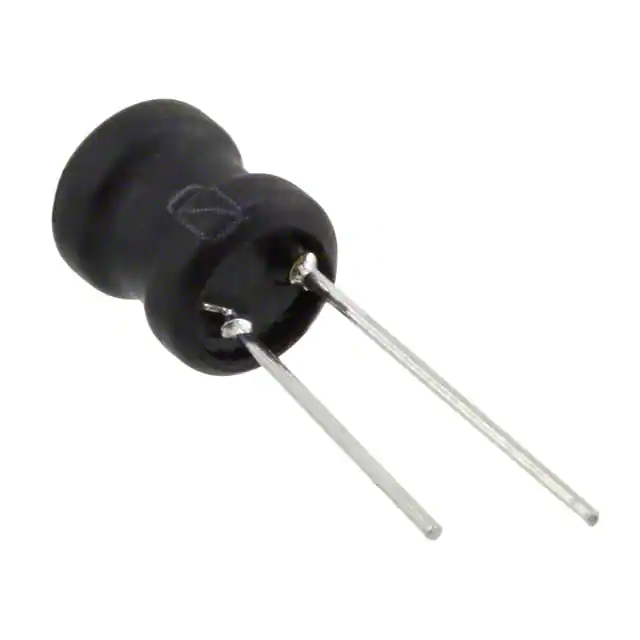

AIUR-12-100KFIXED IND 10UH 1.5A 70 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-12 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 1.5 A | - | Unshielded | 70mOhm Max | 30 @ 100kHz | 20MHz | - | -40°C ~ 85°C | 100 kHz | - | Through Hole | - | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
AIUR-12-220KFIXED IND 22UH 1A 110 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-12 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 1 A | - | Unshielded | 110mOhm Max | 30 @ 100kHz | 10MHz | - | -40°C ~ 85°C | 100 kHz | - | Through Hole | - | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
AIUR-12-330KFIXED IND 33UH 920MA 150 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-12 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 920 mA | - | Unshielded | 150mOhm Max | 30 @ 100kHz | 5MHz | - | -40°C ~ 85°C | 100 kHz | - | Through Hole | - | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
AIUR-12-101KFIXED IND 100UH 660MA 500MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-12 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 660 mA | - | Unshielded | 500mOhm Max | 30 @ 100kHz | 2MHz | - | -40°C ~ 85°C | 100 kHz | - | Through Hole | - | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
AIUR-12-221KFIXED IND 220UH 440MA 1.05OHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-12 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 440 mA | - | Unshielded | 1.05Ohm Max | 30 @ 100kHz | 2MHz | - | -40°C ~ 85°C | 100 kHz | - | Through Hole | - | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
AIUR-12-331KFIXED IND 330UH 380MA 1.21OHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-12 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 380 mA | - | Unshielded | 1.21Ohm Max | 30 @ 100kHz | 2MHz | - | -40°C ~ 85°C | 100 kHz | - | Through Hole | - | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
