固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPI-0403S-472M-TFIXED IND 4.7MH 60MA 13.9OHM SMD Abracon LLC |
7,747 |
|
规格书 |
ASPI-0403S | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 mH | ±20% | 60 mA | - | Shielded | 13.9Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
AMXLA-Q1040-2R2M-TIND 2.2UH 15A 7.2M Abracon LLC |
926 |
|
规格书 |
AMXLA-Q1040 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 2.2 µH | ±20% | 15 A | 18A | Shielded | 7.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
ASPI-0403S-100M-TFIXED IND 10UH 1A 75 MOHM SMD Abracon LLC |
509 |
|
规格书 |
ASPI-0403S | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 1 A | - | Shielded | 75mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
AMPLA5030S-6R8MTFIXED IND 6.8UH 4A 76.2 MOHM SMD Abracon LLC |
777 |
|
规格书 |
AMPLA5030S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 6.8 µH | ±20% | 4 A | 4.3A | Shielded | 76.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
ASPI-8040LR-220M-TIND 22UH 3.3A 94.2M Abracon LLC |
3,833 |
|
规格书 |
ASPI-8040LR | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 22 µH | ±20% | 4.3 A | 3.3A | Shielded | 94.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.339" L x 0.323" W (8.60mm x 8.20mm) | 0.157" (4.00mm) |
|
|

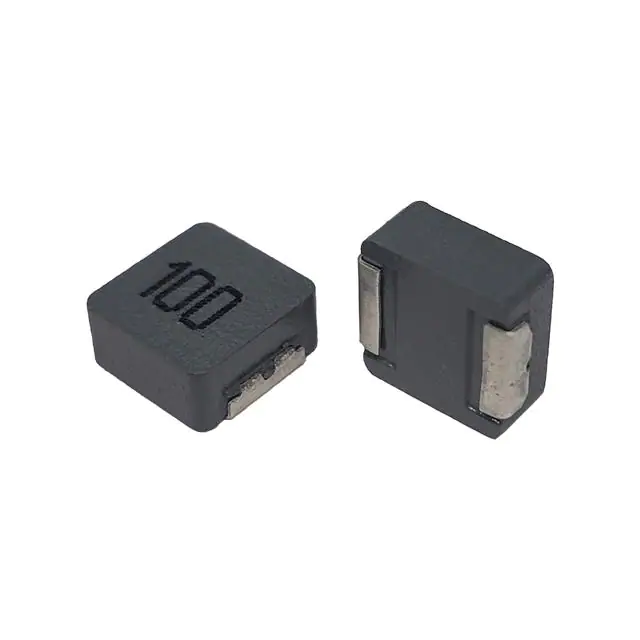

ASPI-8040LR-100M-TIND 10UH 6.4A 51.8M Abracon LLC |
2,961 |
|
规格书 |
ASPI-8040LR | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 10 µH | ±20% | 5.4 A | 6.4A | Shielded | 51.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.339" L x 0.323" W (8.60mm x 8.20mm) | 0.157" (4.00mm) |
|
AIAP-03-561KFIXED IND 560UH 1.17A 420MOHM TH Abracon LLC |
1,898 |
|
规格书 |
AIAP-03 | Axial | Bulk | Active | Wirewound | - | 560 µH | ±10% | 1.17 A | - | Unshielded | 420mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.449" Dia x 0.902" L (11.40mm x 22.90mm) | - |
|
ASPI-0704S-102M-TFIXED IND 1MH 180MA 6 OHM SMD Abracon LLC |
1,726 |
|
规格书 |
ASPI-0704S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 180 mA | - | Shielded | 6Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
ASPI-104S-330M-TFIXED IND 33UH 2.2A 93 MOHM SMD Abracon LLC |
1,027 |
|
规格书 |
ASPI-104S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.2 A | 2.3A | Shielded | 93mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.157" (4.00mm) |
|

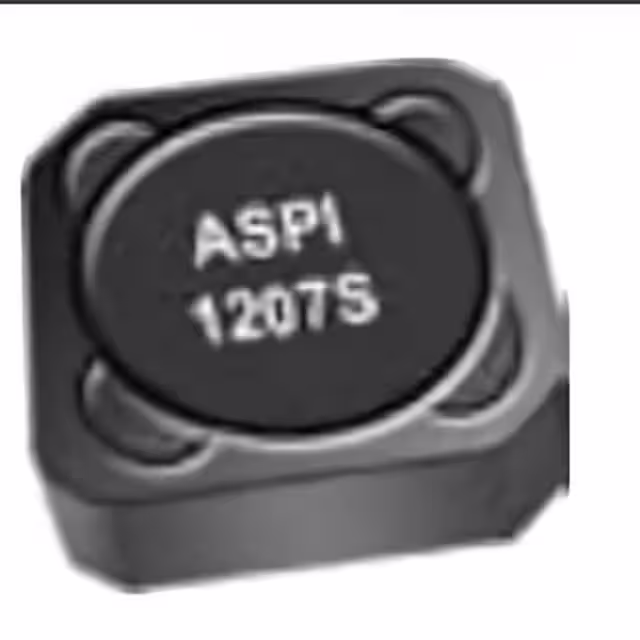

ASPI-1207S-680M-TFIXED IND 68UH 2.1A 0.14OHM SMD Abracon LLC |
138 |
|
规格书 |
ASPI-1207S | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 2.1 A | - | Shielded | 140mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
