固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

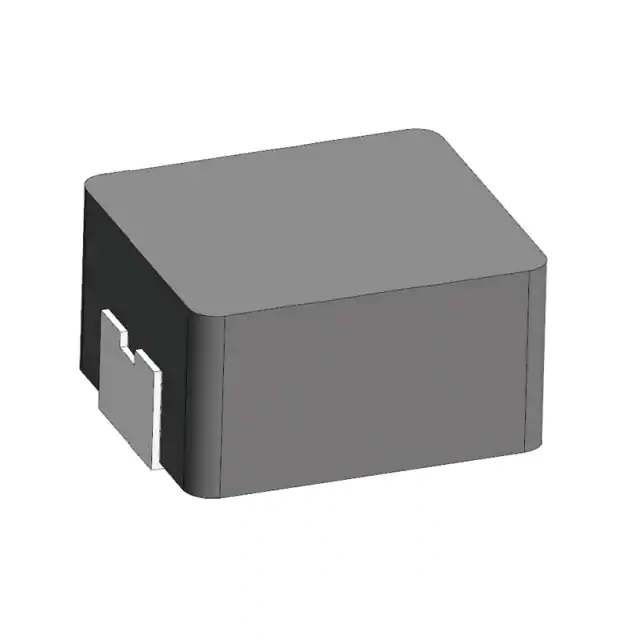

AMDLA4020Q-150MTFIXED IND 15UH 1.2A 275 MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMDLA4020Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 15 µH | ±20% | 1.2 A | 1.6A | Shielded | 275mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.173" L x 0.157" W (4.40mm x 4.00mm) | 0.079" (2.00mm) |
|
|
AMDLA4020Q-R33MTFIXED IND 330NH 9A 9.5 MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMDLA4020Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 330 nH | ±20% | 9 A | 13A | Shielded | 9.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.173" L x 0.157" W (4.40mm x 4.00mm) | 0.079" (2.00mm) |
|
|
AMDLA4020Q-R12MTFIXED INDUCTOR 120NH 12A SMD Abracon LLC |
0 |
|
规格书 |
AMDLA4020Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 120 nH | ±20% | 12 A | 17A | Shielded | 5mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.173" L x 0.157" W (4.40mm x 4.00mm) | 0.079" (2.00mm) |
|
|
AMDLA4020Q-220MTFIXED IND 22UH 900MA 460MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMDLA4020Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 22 µH | ±20% | 900 mA | 1.4A | Shielded | 460mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.173" L x 0.157" W (4.40mm x 4.00mm) | 0.079" (2.00mm) |
|
|
AMDLA4020Q-R22MTFIXED IND 220NH 11A 8 MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMDLA4020Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 220 nH | ±20% | 11 A | 15A | Shielded | 8mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.173" L x 0.157" W (4.40mm x 4.00mm) | 0.079" (2.00mm) |
|
ASPI-0315S-4R7N-TFIXED IND 4.7UH 900MA 105MOHM SM Abracon LLC |
0 |
|
规格书 |
ASPI-0315S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 900 mA | - | Shielded | 105mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.146" L x 0.146" W (3.70mm x 3.70mm) | 0.071" (1.80mm) |
|
|
ASPI-0315S-3R9N-TFIXED IND 3.9UH 1A 95 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0315S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±30% | 1 A | - | Shielded | 95mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.146" L x 0.146" W (3.70mm x 3.70mm) | 0.071" (1.80mm) |
|
|
ASPI-0315S-3R3N-TFIXED IND 3.3UH 1.1A 85MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0315S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 1.1 A | - | Shielded | 85mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.146" L x 0.146" W (3.70mm x 3.70mm) | 0.071" (1.80mm) |
|
|
ASPI-0315S-8R2N-TFIXED IND 8.2UH 621MA 190MOHM SM Abracon LLC |
0 |
|
规格书 |
ASPI-0315S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | 621 mA | - | Shielded | 190mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.146" L x 0.146" W (3.70mm x 3.70mm) | 0.071" (1.80mm) |
|
|
ASPI-0315S-5R6N-TFIXED IND 5.6UH 822MA 119MOHM SM Abracon LLC |
0 |
|
规格书 |
ASPI-0315S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±30% | 822 mA | - | Shielded | 119mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.146" L x 0.146" W (3.70mm x 3.70mm) | 0.071" (1.80mm) |
