上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

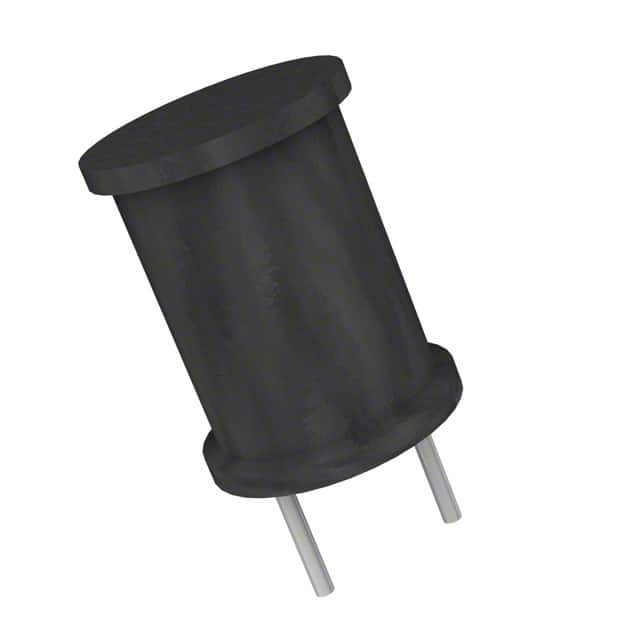

AIUR-04-472JFIXED IND 4.7MH 50MA 18 OHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-04 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±5% | 50 mA | 50mA | Unshielded | 18Ohm Max | 40 @ 252kHz | 600kHz | - | -25°C ~ 85°C | 252 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.441" (11.20mm) |
|
AIUR-04-682JFIXED IND 6.8MH 50MA 26 OHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-04 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 mH | ±5% | 50 mA | 50mA | Unshielded | 26Ohm Max | 40 @ 252kHz | 500kHz | - | -25°C ~ 85°C | 252 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.441" (11.20mm) |
|

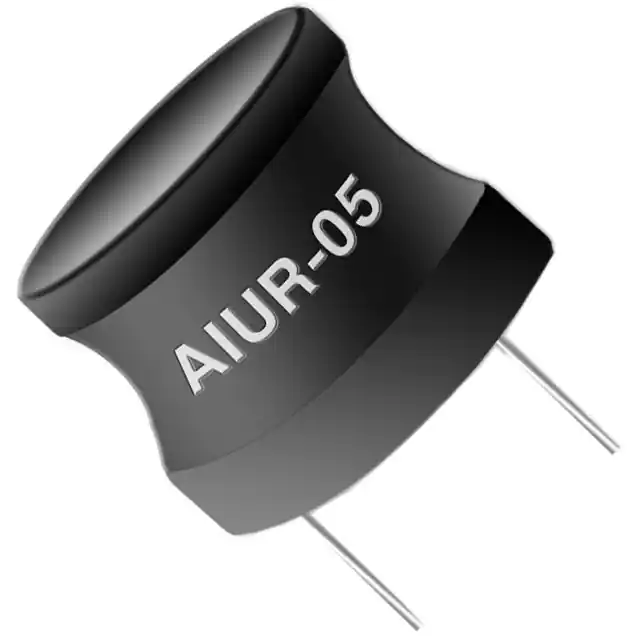

AIUR-05-150KFIXED IND 15UH 1.4A 42 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-05 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 1.4 A | 2A | Unshielded | 42mOhm Max | 10 @ 2.52kHz | 15MHz | - | -25°C ~ 85°C | 2.52 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.354" (9.00mm) |
|
AIUR-05-102KFIXED IND 1MH 180MA 2.2 OHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-05 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 180 mA | 230mA | Unshielded | 2.2Ohm Max | 10 @ 252kHz | 1.5MHz | - | -25°C ~ 85°C | 252 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.354" (9.00mm) |
|
|
AIUR-04-681JFIXED IND 680UH 200MA 4 OHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-04 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±5% | 200 mA | 200mA | Unshielded | 4Ohm Max | 30 @ 796kHz | 1.6MHz | - | -25°C ~ 85°C | 796 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.441" (11.20mm) |
|
|
AIUR-04-223JFIXED IND 22MH 30MA 80 OHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-04 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 mH | ±5% | 30 mA | 30mA | Unshielded | 80Ohm Max | 40 @ 79.6kHz | 300kHz | - | -25°C ~ 85°C | 79.6 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.441" (11.20mm) |
|
|
AIUR-05-152KFIXED IND 1.5MH 150MA 3.5 OHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-05 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 150 mA | 180mA | Unshielded | 3.5Ohm Max | 10 @ 252kHz | 1.2MHz | - | -25°C ~ 85°C | 252 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.354" (9.00mm) |
|
ASPI-0403H-1R8M-TFIXED IND 1.8UH 2.91A 42MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0403H | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.8 µH | ±20% | 2.91 A | - | Unshielded | 42mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
ASPI-0403H-2R7M-TFIXED IND 2.7UH 2.43A 52MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0403H | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.7 µH | ±20% | 2.43 A | - | Unshielded | 52mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
ASPI-0403H-4R7M-TFIXED IND 4.7UH 1.7A 94 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0403H | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 1.7 A | - | Unshielded | 94mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
