固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

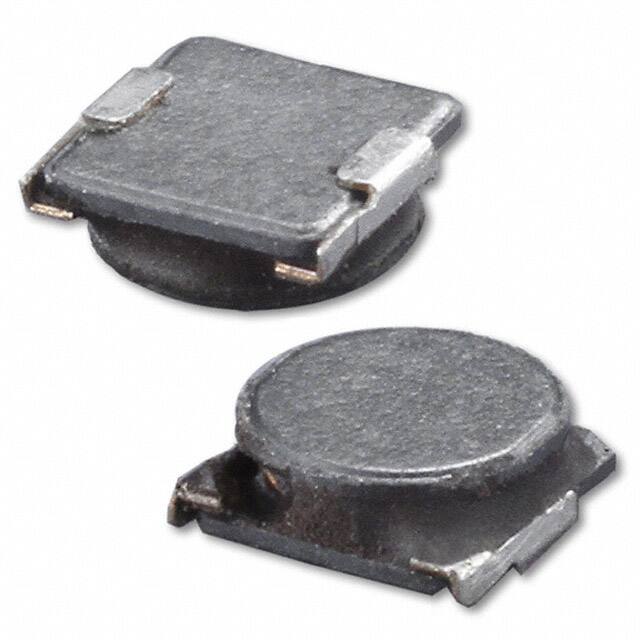

ASPI-0312FSSA-6R8M-T4FIXED IND 6.8UH 800MA 210MOHM SM Abracon LLC |
0 |
|
规格书 |
ASPI-0312FSSA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 6.8 µH | ±20% | 800 mA | 840mA | Shielded | 210mOhm | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
ASPI-0312FSSA-100M-T4FIXED IND 10UH 700MA 290MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0312FSSA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 10 µH | ±20% | 700 mA | 730mA | Shielded | 290mOhm | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
ASPI-0312FSSA-220M-T4FIXED IND 22UH 400MA 700MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0312FSSA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 22 µH | ±20% | 400 mA | 430mA | Shielded | 700mOhm | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
AISC-1206-R68J-TFIXED IND 680NH 430MA 1.58OHM SM Abracon LLC |
0 |
|
规格书 |
AISC-1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 680 nH | ±5% | 430 mA | - | Unshielded | 1.58Ohm Max | 45 @ 150MHz | 450MHz | - | -40°C ~ 125°C | 35 MHz | - | Surface Mount | - | 0.140" L x 0.085" W (3.56mm x 2.16mm) | 0.060" (1.52mm) |
|

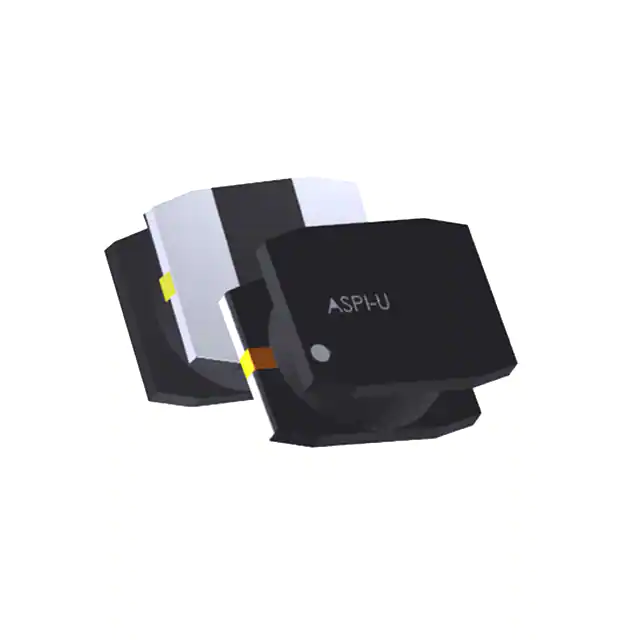

ASPI-U252010-R12M-TFIXED INDUCTOR 120NH 5A SMD Abracon LLC |
0 |
|
规格书 |
ASPI-U | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Wirewound | - | 120 nH | ±20% | - | - | Unshielded | - | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
ASPI-U252010-R24M-TFIXED IND 240NH SMD Abracon LLC |
0 |
|
规格书 |
ASPI-U | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Wirewound | - | 240 nH | ±20% | - | - | Unshielded | - | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
ASPI-U252010-R33M-TFIXED IND 330NH SMD Abracon LLC |
0 |
|
规格书 |
ASPI-U | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Wirewound | - | 330 nH | ±20% | - | - | Unshielded | - | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
ASPI-U252010-R68M-TFIXED IND 680NH SMD Abracon LLC |
0 |
|
规格书 |
ASPI-U | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Wirewound | - | 680 nH | ±20% | - | - | Unshielded | - | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
ASPI-4030S-180M-TFIXED IND 18UH 1.1A 200 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-4030S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 18 µH | ±20% | 1.1 A | 1.4A | Shielded | 200mOhm | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
|
ASPI-4030S-1R8N-TFIXED IND 1.8UH 3.2A 25 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-4030S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 1.8 µH | ±30% | 3.2 A | 5.4A | Shielded | 25mOhm | - | 60MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
