固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AISC-Q0402HQ-1N0C-TFIXED IND 1NH 2.3A SMD Abracon LLC |
0 |
|
规格书 |
AISC-Q0402HQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 1 nH | ±0.2nH | 2.3 A | - | Unshielded | 30mOhm Max | 46 @ 900MHz | 16GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
AIML-0805-220K-TFIXED IND 22UH 5MA 1.1OHM SMD Abracon LLC |
0 |
|
规格书 |
AIML-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 22 µH | ±10% | 5 mA | - | Shielded | 1.1Ohm | 30 @ 1MHz | 16MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
AMELA2010S-R68MTFIXED IND 680NH 3.6A 44MOHM SMD Abracon LLC |
0 |
|
规格书 |

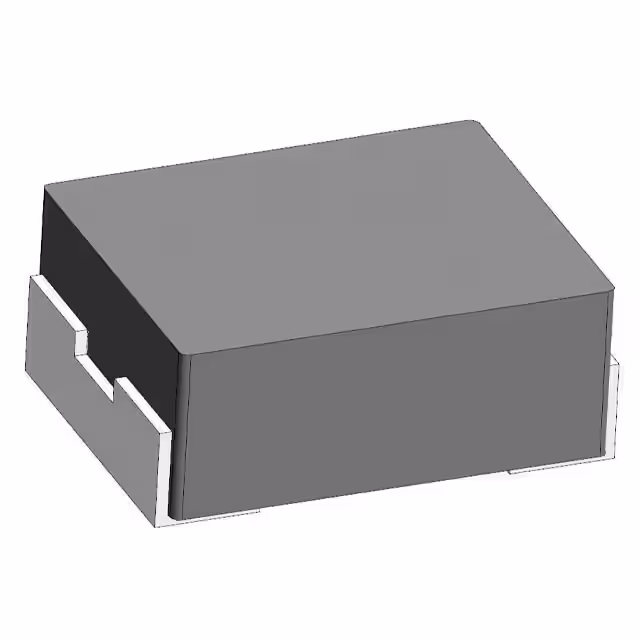

AMELA2010S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 680 nH | ±20% | 3.6 A | 4.6A | Shielded | 44mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
AMELA2010S-R33MTFIXED IND 330NH 5.5A 20MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMELA2010S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 330 nH | ±20% | 5.5 A | 6.5A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
AISC-0402F-18NJ-TFIXED IND 18NH 1.4A 46 MOHM SMD Abracon LLC |
0 |
|
规格书 |
AISC-0402F | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 18 nH | ±5% | 1.4 A | - | Unshielded | 46mOhm Max | - | 3GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|
|
AISC-0402F-48NJ-TFIXED IND 48NH 1.1A 78 MOHM SMD Abracon LLC |
0 |
|
规格书 |
AISC-0402F | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 48 nH | ±5% | 1.1 A | - | Unshielded | 78mOhm Max | - | 1.4GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|
|
AISC-0402F-R13J-TFIXED IND 130NH 640MA 230MOHM SM Abracon LLC |
0 |
|
规格书 |
AISC-0402F | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 130 nH | ±5% | 640 mA | - | Unshielded | 230mOhm Max | - | 1GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|
AISC-0603HP-R15J-TFIXED IND 150NH 390MA 820MOHM SM Abracon LLC |
0 |
|
规格书 |
AISC-0603HP | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 150 nH | ±5% | 390 mA | - | Unshielded | 820mOhm Max | 30 @ 150MHz | 1.15GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
AISC-Q1008-R56J-TFIXED IND 560NH 580MA 1.33OHM SM Abracon LLC |
0 |
|
规格书 |
AISC-Q1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 560 nH | ±5% | 580 mA | - | Unshielded | 1.33Ohm Max | 45 @ 100MHz | 415MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.115" (2.92mm) |
|
|
AISC-Q1008-R18J-TFIXED IND 180NH 620MA 0.77OHM SM Abracon LLC |
0 |
|
规格书 |
AISC-Q1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 180 nH | ±5% | 620 mA | - | Unshielded | 770mOhm Max | 45 @ 100MHz | 750MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.115" (2.92mm) |
