固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AISC-Q0805-1R8G-TFIXED IND 1.8UH 170MA 2.5OHM SMD Abracon LLC |
0 |
|
规格书 |
AISC-Q0805 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 1.8 µH | ±2% | 170 mA | - | Unshielded | 2.5Ohm Max | 16 @ 7.9MHz | 80MHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.090" (2.29mm) |
|
|
AISC-Q0805-62NG-TFIXED IND 62NH 500MA 0.36OHM SMD Abracon LLC |
0 |
|
规格书 |
AISC-Q0805 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 62 nH | ±2% | 500 mA | - | Unshielded | 360mOhm Max | 60 @ 500MHz | 1.5GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.090" (2.29mm) |
|
|
AISC-Q0805-24NG-TFIXED IND 24NH 500MA 0.22OHM SMD Abracon LLC |
0 |
|
规格书 |
AISC-Q0805 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 24 nH | ±2% | 500 mA | - | Unshielded | 220mOhm Max | 50 @ 500MHz | 2GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.090" (2.29mm) |
|
|
AISC-Q0805-39NG-TFIXED IND 39NH 500MA 0.29OHM SMD Abracon LLC |
0 |
|
规格书 |
AISC-Q0805 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 39 nH | ±2% | 500 mA | - | Unshielded | 290mOhm Max | 60 @ 500MHz | 2GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.090" (2.29mm) |
|
|
AISC-Q0805-R43G-TFIXED IND 430NH 230MA 1.7OHM SMD Abracon LLC |
0 |
|
规格书 |
AISC-Q0805 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 430 nH | ±2% | 230 mA | - | Unshielded | 1.7Ohm Max | 33 @ 100MHz | 430MHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.090" (2.29mm) |
|

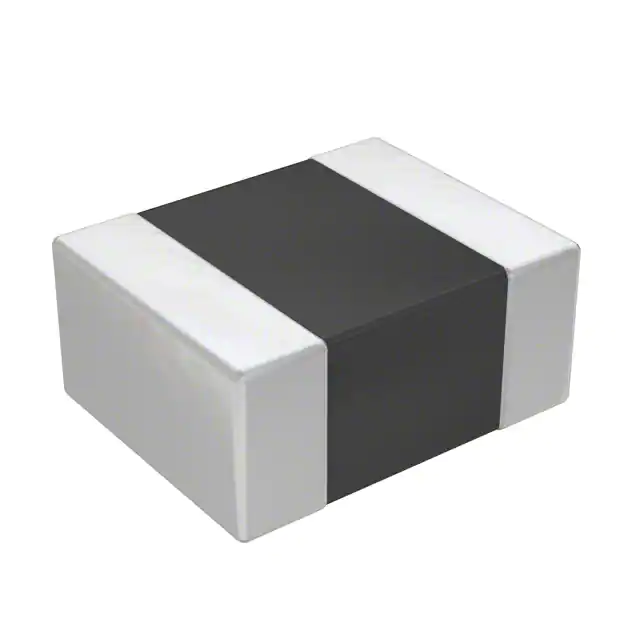

ASMPM-0806-3R3M-TFIXED IND 3.3UH 1.4A 225MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASMPM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3.3 µH | ±20% | 1.4 A | 1.5A | Unshielded | 225mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
AISC-Q0603HC-10NG-TFIXED IND 10NH 2A SMD Abracon LLC |
0 |
|
规格书 |
AISC-Q0603HC | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 10 nH | ±2% | 2 A | - | Unshielded | 71mOhm Max | 38 @ 250MHz | 3.7GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
AISC-Q0603HC-12NG-TFIXED IND 12NH 2A SMD Abracon LLC |
0 |
|
规格书 |
AISC-Q0603HC | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 12 nH | ±2% | 2 A | - | Unshielded | 75mOhm Max | 38 @ 250MHz | 3GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
AISC-Q0603HQ-7N2G-TFIXED IND 7.2NH 1.4A SMD Abracon LLC |
0 |
|
规格书 |
AISC-Q0603HQ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 7.2 nH | ±2% | 1.4 A | - | Unshielded | 52mOhm Max | 48 @ 250MHz | 5.4GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
AISC-Q0603HC-15NG-TFIXED IND 15NH 1.9A SMD Abracon LLC |
0 |
|
规格书 |
AISC-Q0603HC | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 15 nH | ±2% | 1.9 A | - | Unshielded | 80mOhm Max | 38 @ 250MHz | 2.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
