固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

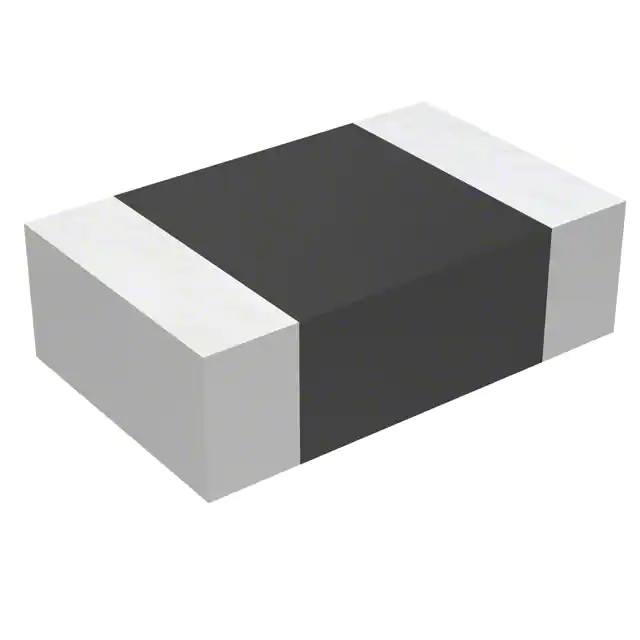

ASMPL-0805-R22N-TFIXED IND 220NH 1.6A 88 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASMPL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 220 nH | ±30% | 1.6 A | 1.2A | Unshielded | 88mOhm Max | - | 100MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.024" (0.60mm) |
|
|
ASMPL-0805-R33M-TFIXED IND 330NH 1.2A 125MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASMPL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 330 nH | ±20% | 1.2 A | 1.35A | Unshielded | 125mOhm Max | - | 90MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.024" (0.60mm) |
|
|
ASMPL-0805-R33N-TFIXED IND 330NH 1.2A 125MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASMPL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 330 nH | ±30% | 1.2 A | 1.35A | Unshielded | 125mOhm Max | - | 90MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.024" (0.60mm) |
|
|
ASMPL-0805-R47M-TFIXED IND 470NH 1.1A 150MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASMPL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 470 nH | ±20% | 1.1 A | 1.3A | Unshielded | 150mOhm Max | - | 80MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.024" (0.60mm) |
|
|
ASMPL-0805-R47N-TFIXED IND 470NH 1.1A 150MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASMPL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 470 nH | ±30% | 1.1 A | 1.3A | Unshielded | 150mOhm Max | - | 80MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.024" (0.60mm) |
|
AISC-Q0603HQ-3N0J-TFIXED IND 3NH 1A SMD Abracon LLC |
0 |
|
规格书 |
AISC-Q0603HQ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 3 nH | ±5% | 1 A | - | Unshielded | 24mOhm Max | 35 @ 250MHz | 9.5GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
AIML-0805-R10K-TFIXED IND 100NH 250MA 0.3OHM SMD Abracon LLC |
0 |
|
规格书 |
AIML-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 100 nH | ±10% | 250 mA | - | Shielded | 300mOhm | 20 @ 25MHz | 235MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
AIML-0805-R12K-TFIXED IND 120NH 250MA 0.3OHM SMD Abracon LLC |
0 |
|
规格书 |
AIML-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 120 nH | ±10% | 250 mA | - | Shielded | 300mOhm | 20 @ 25MHz | 220MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
AIML-0805-R18K-TFIXED IND 180NH 250MA 0.4OHM SMD Abracon LLC |
0 |
|
规格书 |
AIML-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 180 nH | ±10% | 250 mA | - | Shielded | 400mOhm | 20 @ 25MHz | 185MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
AIML-0805-R22K-TFIXED IND 220NH 250MA 0.5OHM SMD Abracon LLC |
0 |
|
规格书 |
AIML-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 220 nH | ±10% | 250 mA | - | Shielded | 500mOhm | 20 @ 25MHz | 170MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
