固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AIMC-0603-22NJ-TFIXED IND 22NH 300MA 400MOHM SMD Abracon LLC |
11,968 |
|
规格书 |
AIMC-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 22 nH | ±5% | 300 mA | - | Unshielded | 400mOhm Max | 12 @ 100MHz | 1.7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
AIMC-0603-39NJ-TFIXED IND 39NH 300MA 600MOHM SMD Abracon LLC |
7,066 |
|
规格书 |
AIMC-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 39 nH | ±5% | 300 mA | - | Unshielded | 600mOhm Max | 12 @ 100MHz | 1.1GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|

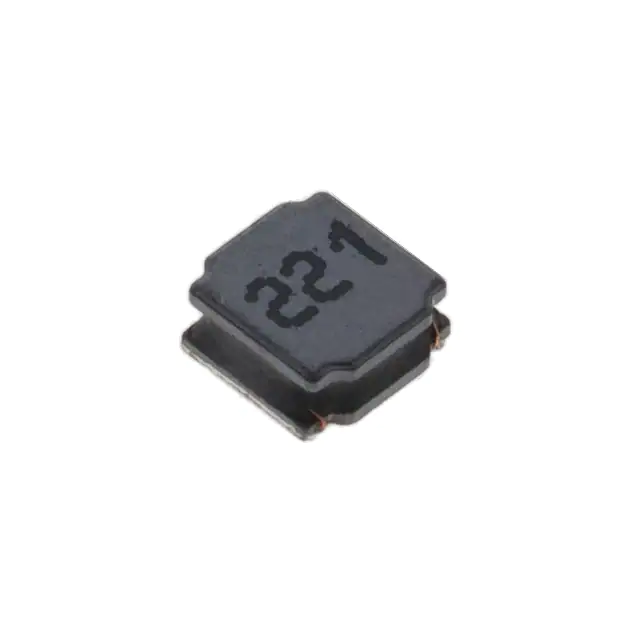

ASPI-0418FS-221M-T3FIXED IND 220UH 280MA 3.552 OHM Abracon LLC |
22,385 |
|
规格书 |
ASPI-0418FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 250 mA | 330mA | Shielded | 3.84Ohm Max | - | 4.2MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
ASPI-0312FS-2R2M-T2FIXED IND 2.2UH 1.2A 70 MOHM SMD Abracon LLC |
7,809 |
|
规格书 |
ASPI-0312FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.2 A | 1.1A | Shielded | 70mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
AIAP-01-2R7K-TFIXED IND 2.7UH 2.5A 33 MOHM TH Abracon LLC |
6,254 |
|
规格书 |
AIAP-01 | Axial | Tape & Reel (TR) | Active | Wirewound | - | 2.7 µH | ±10% | 2.5 A | - | Unshielded | 33mOhm Max | - | 120MHz | - | -40°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.130" Dia x 0.360" L (3.30mm x 9.14mm) | - |
|
AISM-1210-R47M-TFIXED IND 470NH 450MA 500MOHM SM Abracon LLC |
5,517 |
|
规格书 |
AISM-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 470 nH | ±20% | 450 mA | - | Unshielded | 500mOhm Max | 30 @ 25.2MHz | 220MHz | - | -40°C ~ 85°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
ASPI-3012S-101M-TFIXED IND 100UH 250MA 2.86OHM SM Abracon LLC |
3,556 |
|
规格书 |
ASPI-3012S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 250 mA | 210mA | Shielded | 2.86Ohm | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.055" (1.40mm) |
|
ASPI-2410-2R2M-T2FIXED IND 2.2UH 1.4A 137MOHM SMD Abracon LLC |
2,345 |
|
规格书 |
ASPI-2410 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.4 A | 1.55A | Shielded | 137mOhm Max | - | 56MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
ASPI-3012S-100M-TFIXED IND 10UH 830MA 265MOHM SMD Abracon LLC |
1,834 |
|
规格书 |
ASPI-3012S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 830 mA | 600mA | Shielded | 265mOhm | - | 42MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.055" (1.40mm) |
|
ASPI-0418FS-220M-T3FIXED IND 22UH 900MA 290MOHM SMD Abracon LLC |
12,819 |
|
规格书 |
ASPI-0418FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 700 mA | 900mA | Shielded | 348mOhm Max | - | 15MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
