固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPI-0705-270K-TFIXED IND 27UH 1.3A 120 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 1.3 A | - | Unshielded | 120mOhm Max | - | - | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
AISM-1812-121K-TFIXED IND 120UH 110MA 8 OHM SMD Abracon LLC |
0 |
|
规格书 |
AISM-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 110 mA | - | Unshielded | 8Ohm Max | 40 @ 796kHz | 6MHz | - | -40°C ~ 85°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
AIUR-12-680KFIXED IND 68UH 770MA 300 MOHM TH Abracon LLC |
484 |
|
规格书 |
AIUR-12 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 770 mA | - | Unshielded | 300mOhm Max | 30 @ 100kHz | 2MHz | - | -40°C ~ 85°C | 100 kHz | - | Through Hole | - | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
AIUR-12-182KFIXED IND 1.8MH 120MA 6.8 OHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-12 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1.8 mH | ±10% | 120 mA | - | Unshielded | 6.8Ohm Max | 30 @ 100kHz | 1MHz | - | -40°C ~ 85°C | 100 kHz | - | Through Hole | - | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
AIUR-12-222KFIXED IND 2.2MH 110MA 11 OHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-12 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 110 mA | - | Unshielded | 11Ohm Max | 30 @ 100kHz | 1MHz | - | -40°C ~ 85°C | 100 kHz | - | Through Hole | - | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
AIUR-12-472KFIXED IND 4.7MH 70MA 18 OHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-12 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 70 mA | - | Unshielded | 18Ohm Max | 30 @ 100kHz | 300kHz | - | -40°C ~ 85°C | 100 kHz | - | Through Hole | - | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
AIUR-12-470KFIXED IND 47UH 780MA 280 MOHM TH Abracon LLC |
483 |
|
规格书 |
AIUR-12 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 780 mA | - | Unshielded | 280mOhm Max | 30 @ 100kHz | 5MHz | - | -40°C ~ 85°C | 100 kHz | - | Through Hole | - | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
AMXLA-Q6030-R47M-TIND 0.47UH 18A 4M Abracon LLC |
1,000 |
|
规格书 |
AMXLA-Q6030 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 470 nH | ±20% | 18 A | 18A | Shielded | 4mOhm Max | - | - | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
AMDLA7030Q-1R0MTFIXED IND 1UH 11A 7.4 MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMDLA7030Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 11 A | 13.5A | Shielded | 7.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|

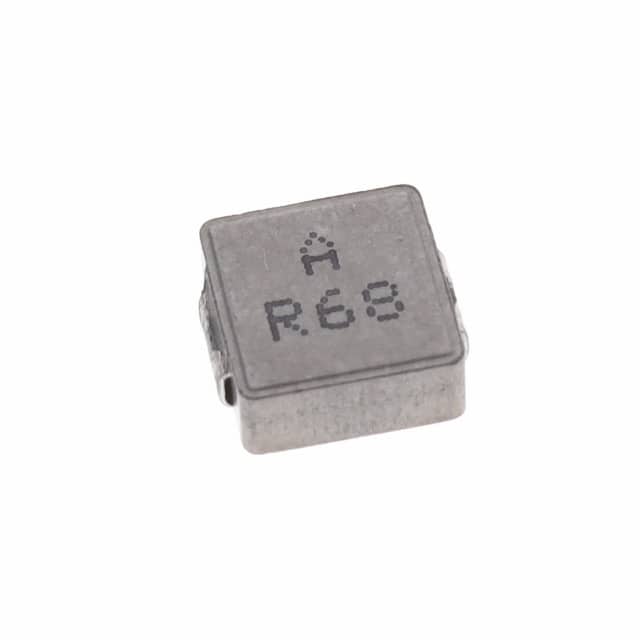

AMDLA7030S-R68MTFIXED IND 680NH 14.5A 5.3MOHM SM Abracon LLC |
979 |
|
规格书 |
AMDLA7030S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 680 nH | ±20% | 14.5 A | 15A | Shielded | 5.3mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
