固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

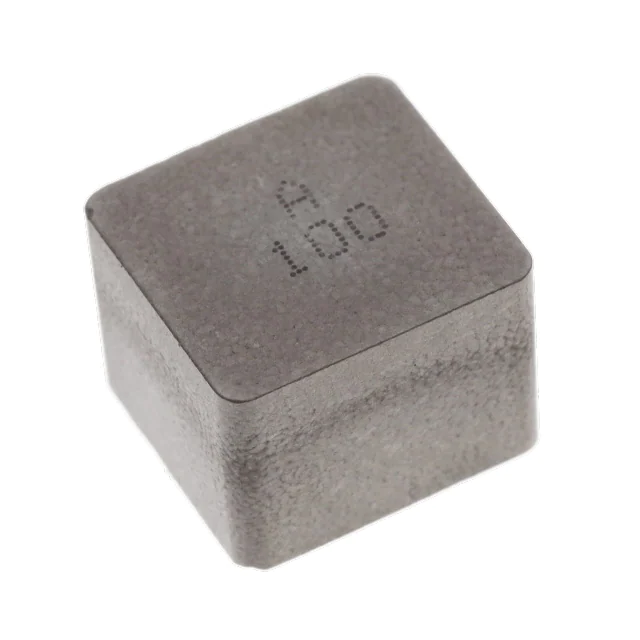

ASPI-F1010-100M-TIND 10UH 14.6A 13.75M Abracon LLC |
852 |
|
规格书 |
ASPI-F1010 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 10 µH | ±20% | 15.5 A | 14.6A | Shielded | 13.75mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.394" (10.00mm) |
|

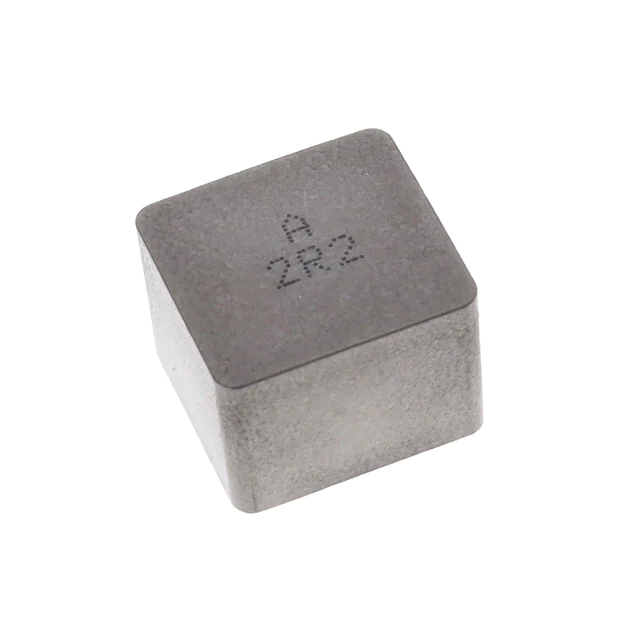

ASPI-F1010-2R2M-TIND 2.2UH 29A 2.8M Abracon LLC |
439 |
|
规格书 |
ASPI-F1010 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 2.2 µH | ±20% | 32 A | 29A | Shielded | 2.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.394" (10.00mm) |
|
AMDLA1707Q-330MTFIXED IND 33UH 12A 37 MOHM SMD Abracon LLC |
328 |
|
规格书 |
AMDLA1707Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 33 µH | ±20% | 12 A | 12A | Shielded | 37mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
|
AMDLA1707Q-220MTFIXED IND 22UH 13.5A 24 MOHM SMD Abracon LLC |
200 |
|
规格书 |
AMDLA1707Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 22 µH | ±20% | 13.5 A | 13.5A | Shielded | 24mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
|
AMDLA1707Q-4R7MTFIXED IND 4.7UH 28A 4.5 MOHM SMD Abracon LLC |
196 |
|
规格书 |
AMDLA1707Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 28 A | 29A | Shielded | 4.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
|
AMDLA1707Q-100MTFIXED IND 10UH 21A 10.6 MOHM SMD Abracon LLC |
172 |
|
规格书 |
AMDLA1707Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 10 µH | ±20% | 21 A | 22A | Shielded | 10.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
ASPIAIG-Q1010-3R3M-TFIXED IND 3.3UH 25A 4.1MOHM SMD Abracon LLC |
295 |
|
规格书 |
ASPIAIG-Q1010 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 3.3 µH | ±20% | 25 A | 23.4A | Shielded | 4.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.394" (10.00mm) |
|
|
ASPIAIG-Q1010-150M-TFIXED IND 15UH 13.8A 19.3MOHM SM Abracon LLC |
285 |
|
规格书 |
ASPIAIG-Q1010 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 15 µH | ±20% | 13.8 A | 12.5A | Shielded | 19.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.394" (10.00mm) |
|
|
ASPIAIG-Q1010-6R8M-TFIXED IND 6.8UH 18.5A 8.9MOHM SM Abracon LLC |
248 |
|
规格书 |
ASPIAIG-Q1010 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 6.8 µH | ±20% | 18.5 A | 18.5A | Shielded | 8.9mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.394" (10.00mm) |
|
AMPLA1707S-1R0MTFIXED IND 1UH 52A 2 MOHM SMD Abracon LLC |
200 |
|
规格书 |
AMPLA1707S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 1 µH | ±20% | 52 A | 70A | Shielded | 2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | 0.276" (7.00mm) |
